Basic Info.
Grade Series
Cemented Carbide
Application
Milling, Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/Mnc
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, RoHS, ISO 9001
Surface Coating
CVD Coating
Package
10PCS Each Inner Box
Advantage
Good Wear Resistance
Transport Package
Inner Box+Carton
Production Capacity
10000000PCS/Month
Packaging & Delivery
Package Size
18.00cm * 11.00cm * 13.00cm
Package Gross Weight
0.100kg
Product Description
CNC inserts are the general name for indexable turning inserts and are the mainstream products in modern metal cutting applications. Mainly used in metal turning, milling, cutting and grooving, thread turning and other fields.
CNC inserts are mainly used in metal turning, milling, cutting and grooving, thread turning and other fields. According to the material can be divided into coated blades, cermet blades, non-metallic ceramic blades, carbide blades, super hard blades and so on. It is characterized by high efficiency and high wear resistance, which is more than 4 times more efficient than traditional welding inserts and alloy inserts. With the continuous advancement of coating technology, breakthroughs in key technologies of wear resistance and high temperature resistance will further improve efficiency and reduce processing costs.
| Grade |
Applications |
| YBC151 |
High wear resistance insert with coating, such as MT-TICN, thick AL2O3 and TIN; Suitable for steel finishing. |
| YBC251 |
Blade security good toughness matrix in MT-TICN, thick AL2O3, excellent combination of TIN coating; Is suitable for semi-finishing steel. |
| YBC351 |
In the high strength plastic substrate resistance and MT-TICN, thick AL2O3, TIN coating combination; Has good toughness and plasticity deformation, suitable for steel rough machining. |
| YBD151 |
High wear resistance matrix and MT-TI (CN), thick excellent combination, AL2O3, and TIN coating is suitable for finishing and semi-finishing of cast iron materials. |
| YBM151 |
Special organization structure matrix combined with thin TICN, AL2O3, TIN coating, has a good impact resistance and resistance to plastic deformation ability, at the same time good shock resistance, suitable for the finishing, semi-finishing and roughing of stainless steel. |
| YBM251 |
TICN substrate from good toughness and strength, thin, AL2O3, and TIN coating is suitable for semi-finishing and roughing of stainless steel. |
| YBM253 |
Stainless steel efficient processing CVD new brands, which are widely used in big cut deep into to efficient processing field. To adopt advanced technology of ultrafine grain nanostructured coating, Gradient alloy substrate with high toughness, excellent performance, in the big cutting depth, feed, high speed cutting process has excellent cutting performance. |
| YBC152 |
Thick thick TICN and AL2O3 coating, the impact toughness increase at the same time, the wear resistance has increased significantly, is processed to semi-finishing steel high-speed cutting the ideal choice of the cutting. Cutting speed can be increased by more than 25%, under the same cutting speed and tool life can be improved by more than 30%. |
| YBC252 |
Adopts thick TICN and AL2O3 coating thick, strong ability to resist plastic deformation and the blade intensity, is closed from finishing to rough machining of steel choose brand. Under the high removal rate cutting parameters or harsh working conditions has stable performance, and can achieve more green dry cutting. Cutting speed can be increased by more than 25%, under the same cutting speed and tool life can be improved by more than 30%. |

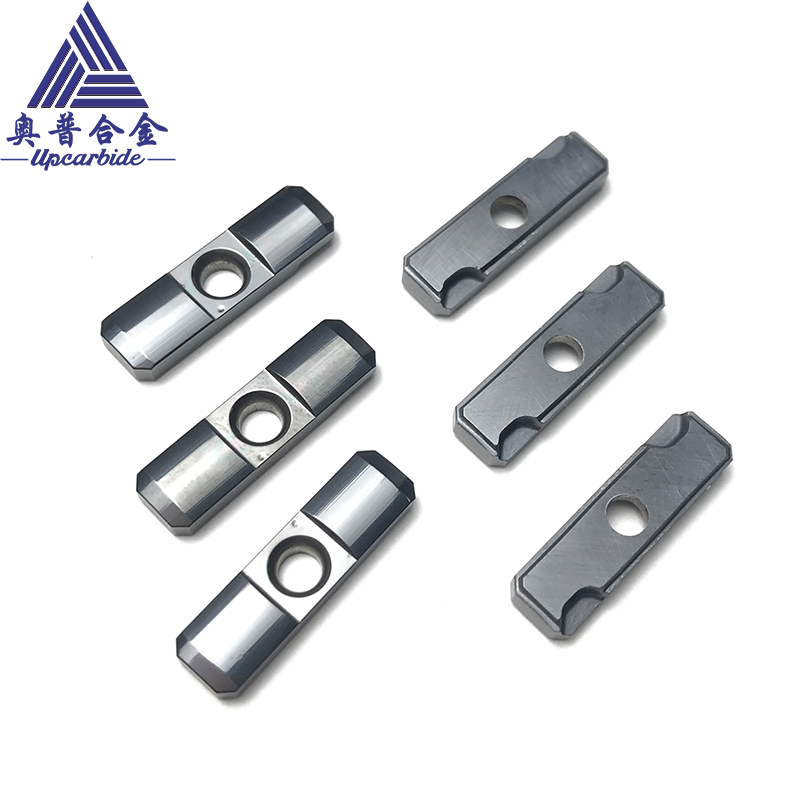

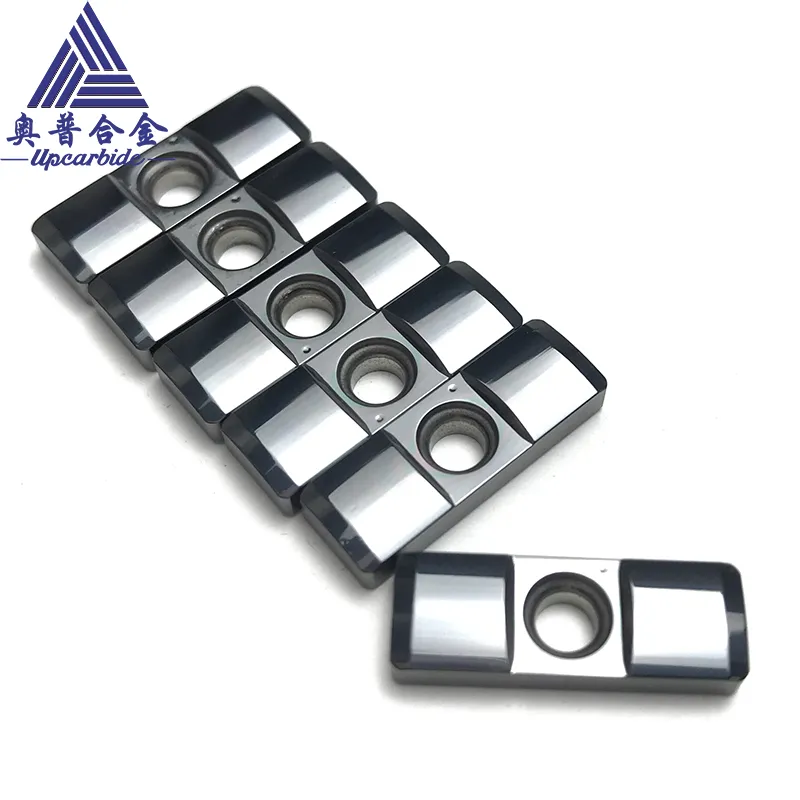

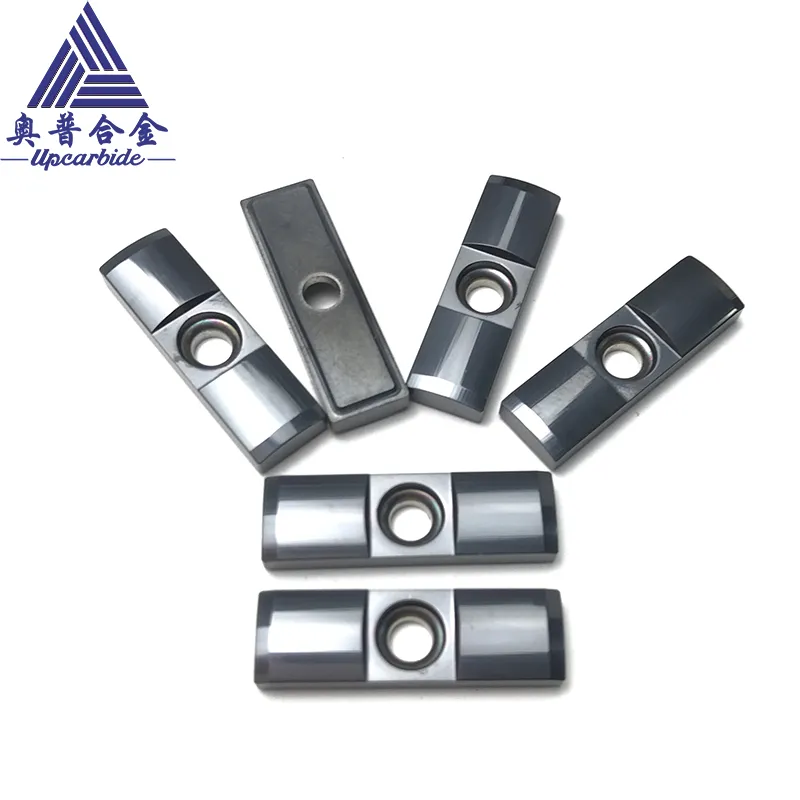

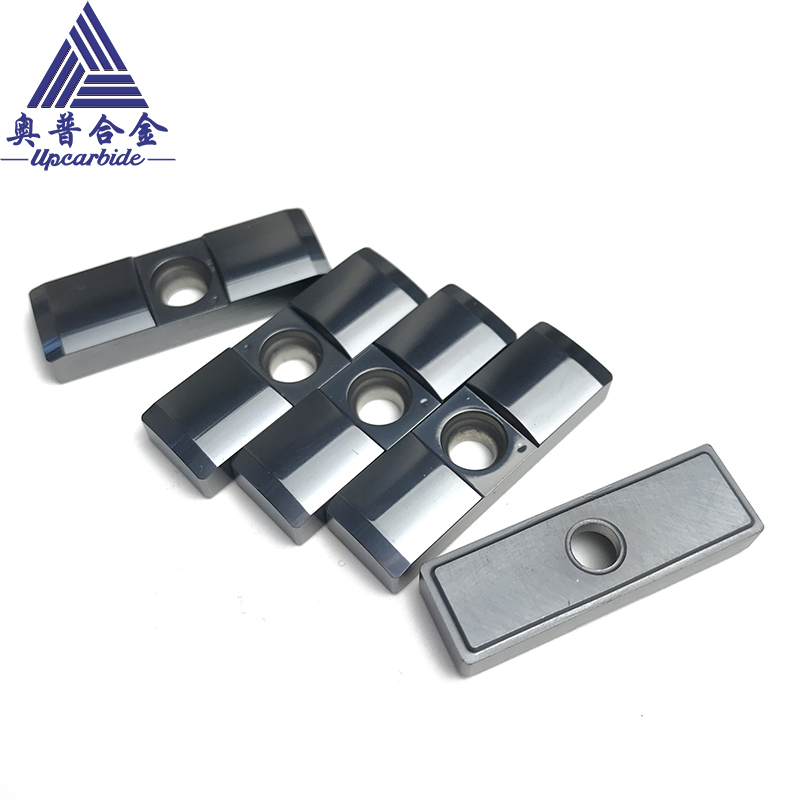

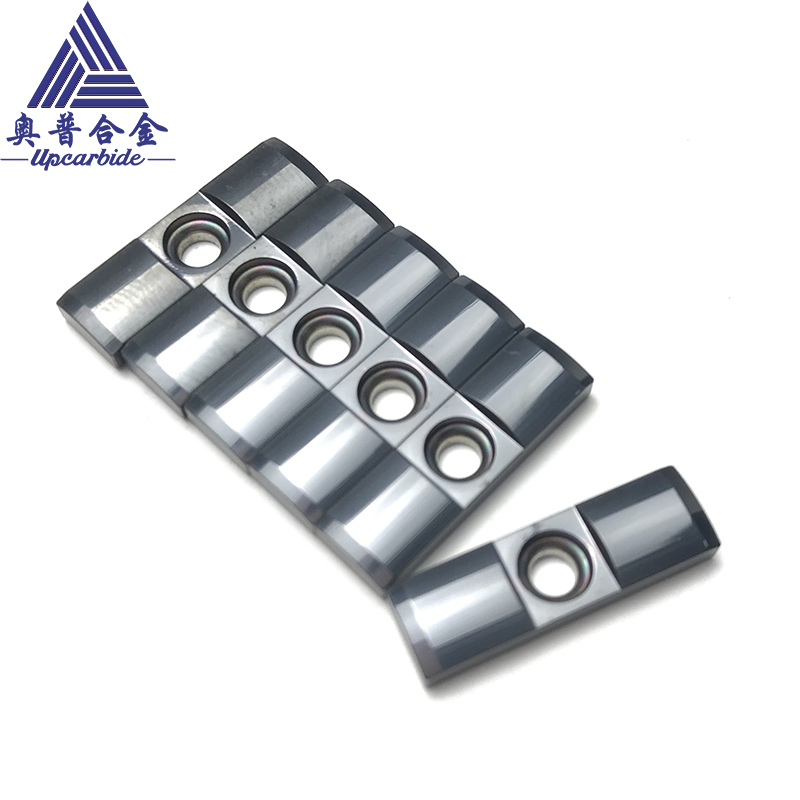

| Produce Name |

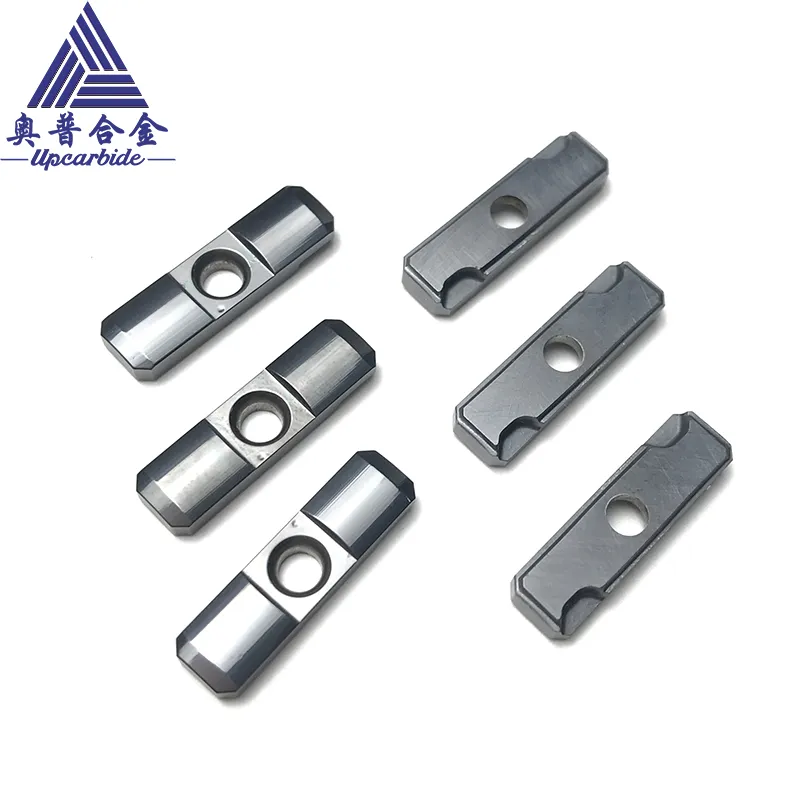

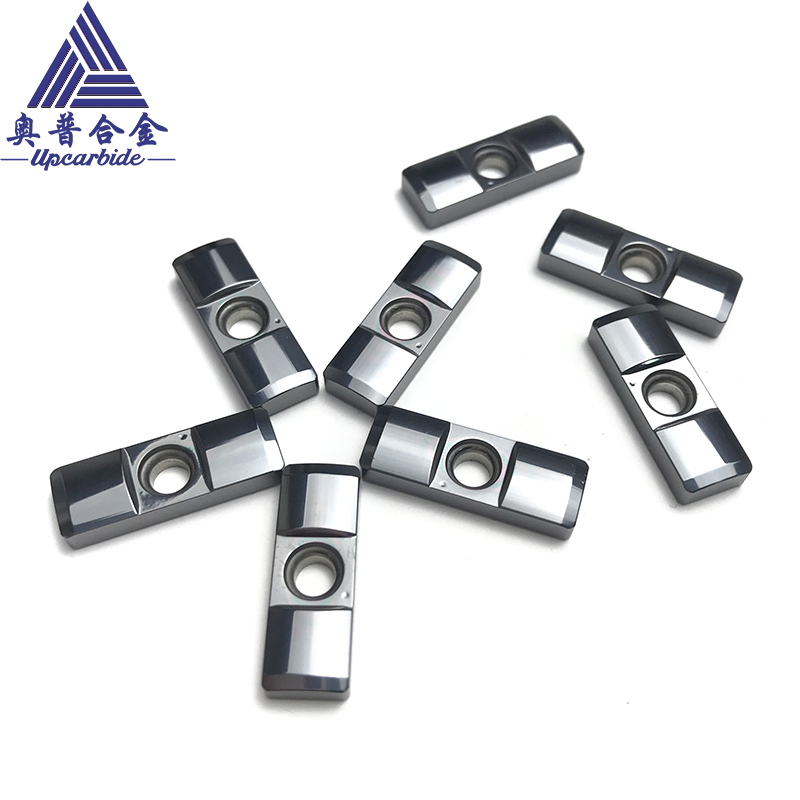

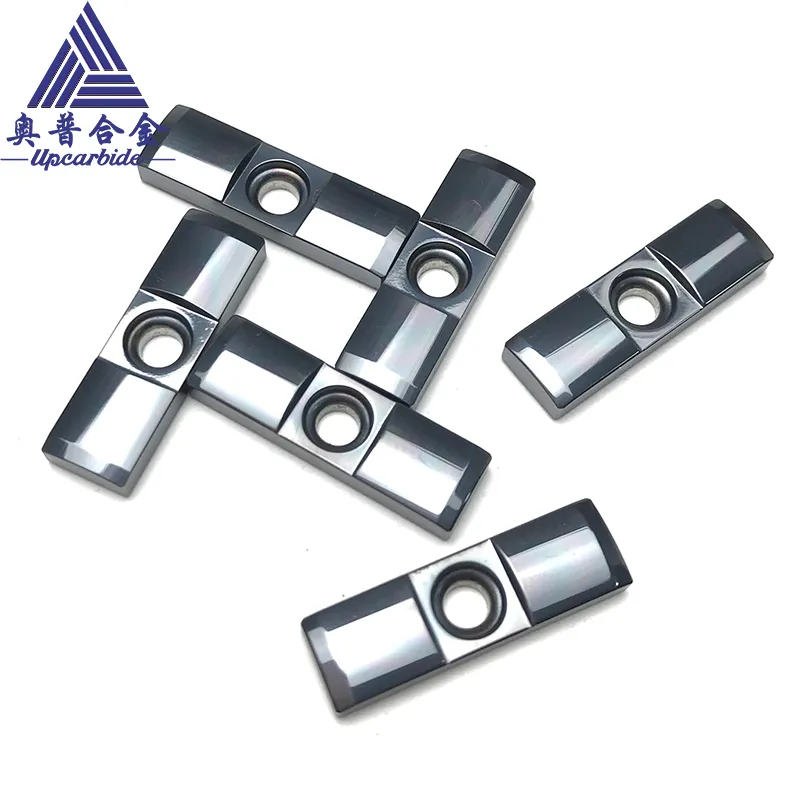

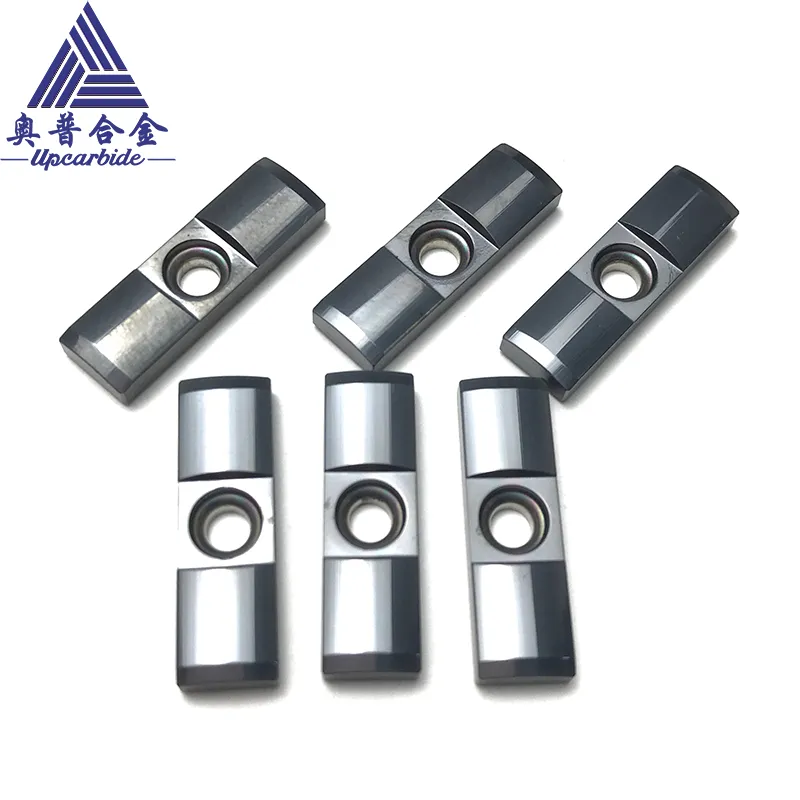

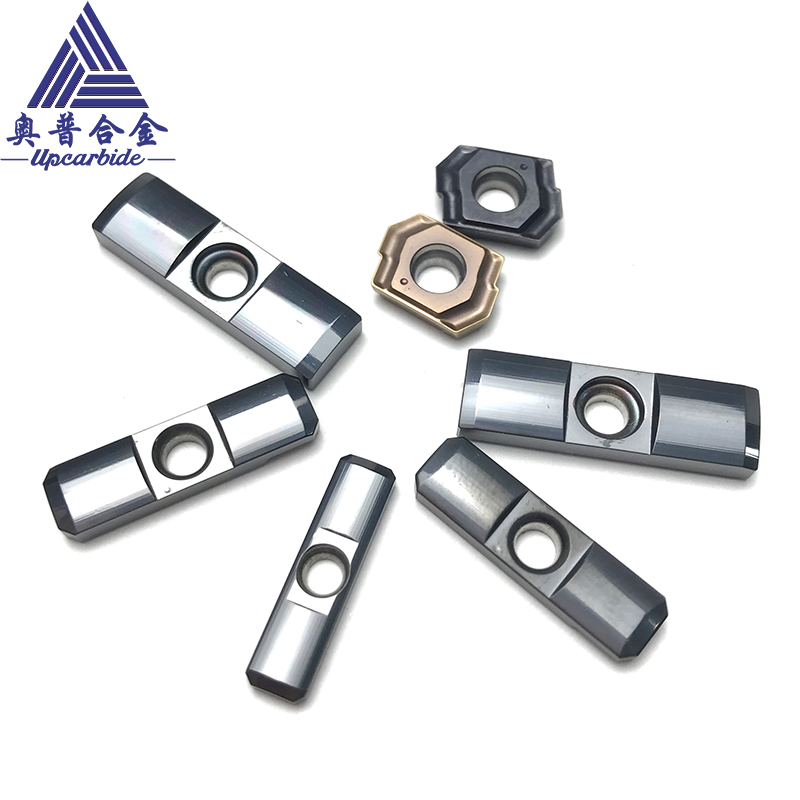

Deep Hole Gun Drill Bits |
| Material |
100% raw tungsten carbide |
| Model |
GPS04-R5.5/GPS05-R6.0/GPS05-R7.5/GPS06-R8.5/GPS06-R10/GPS08-R15.5 |
| Processing |
Finishing, Semi-finishing and roughing |
| Workpiece |
Stainless steel / Steel / Hardened steel / Mould steel / Alloy steel / Cast iron / Aluminum / Copper |
Frequently Asked Questions (FAQ)
What material is used to manufacture these deep hole gun drill guide pads?
The deep hole gun drill guide pads are made from 100% raw tungsten carbide (cemented carbide), ensuring high hardness, strength, and durability under demanding machining conditions.
Which workpieces are compatible with these CNC inserts and drill bits?
They are highly compatible with a wide range of materials, including stainless steel, steel, hardened steel, mould steel, alloy steel, cast iron, aluminum, and copper.
What is the advantage of using CVD coated inserts over traditional tooling?
CVD coated inserts provide excellent wear resistance and thermal stability. They are over 4 times more efficient than traditional welding and alloy inserts, leading to lower processing costs and higher productivity.
How do I choose the correct insert grade for steel finishing vs rough machining?
For steel finishing, the YBC151 grade is ideal due to its high wear resistance coating. For rough machining of steel under high removal rates, the YBC351 or YBC252 grades are recommended for their excellent impact toughness and resistance to plastic deformation.
What packaging options are available for shipment?
The standard packaging contains 10 pieces per inner box. For transport safety, the inner boxes are packed inside robust master cartons.
What processing precision can be achieved with these machine tool accessories?
Under closed-loop control systems on high-end CNC machine tools, these tools can achieve a processing precision of 0.01 to 0.02 mm.
