★ Tungsten Cemented Carbide Grade
| Grade |
ISO Code |
Chemical Component (%) |
Grain size um |
Physical Mechanical Properties (≥) |
| WC |
Co |
Others |
Density g/cm³ |
Hardness (HRA) |
T.R.S N/mm² |
| D10UF | K05-K15 | 93 | 6 | 1 | 0.6 | 14.70 | 93.0 | 2600 |
| D30UF | K20-K30 | 89 | 10 | 1 | 0.6 | 14.50 | 92.0 | 3800 |
| D30SF | K20-K30 | 89 | 10 | 1 | 0.5 | 14.40 | 92.5 | 4000 |
| D40SF | K40 | 87 | 12 | 1 | 0.4 | 14.30 | 92.5 | 4200 |
| DB10X | K20-K30 | 89 | 10 | 1 | 0.6 | 14.50 | 91.5 | 3800 |
| DP12X | K30-K40 | 87 | 12 | 1 | 0.6 | 14.15 | 91.0 | 3300 |
| DP13X | K40 | 86 | 13 | 1 | 0.8 | 14.10 | 90.5 | 4400 |
| YG6 | K05-K10 | 93 | 6 | 0 | 1.2 | 14.95 | 91.0 | 2600 |
| YG6X | K10 | 93 | 6 | 0 | 1.0 | 14.95 | 92.0 | 2500 |
| YG8 | K20-K30 | 92 | 8 | 0 | 1.2 | 14.70 | 90.0 | 2800 |
| YG10X | K30-K40 | 89 | 10 | 1 | 0.8 | 14.50 | 91.0 | 3500 |
| YG15 | K40 | 85 | 15 | 0 | 1.2 | 14.00 | 87.5 | 4500 |
| YG25 | -- | 75 | 25 | 0 | 1.2 | 13.15 | 82.5 | 4800 |
The factory is mainly working on the production and development of all kinds of cemented carbide products, like rods pipe, tungsten carbide rod and flat bars. Our goal is to become the central base of manufacture of extruded rods, carbide boring bar, standard cutters, non standard cutters and hard-machining cutters, establishing a good and healthy company image among coterie.

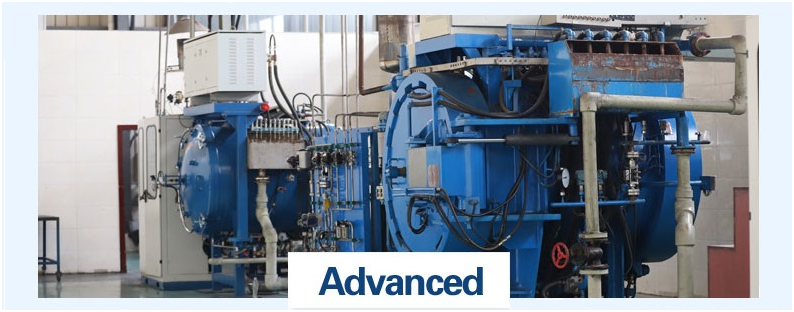

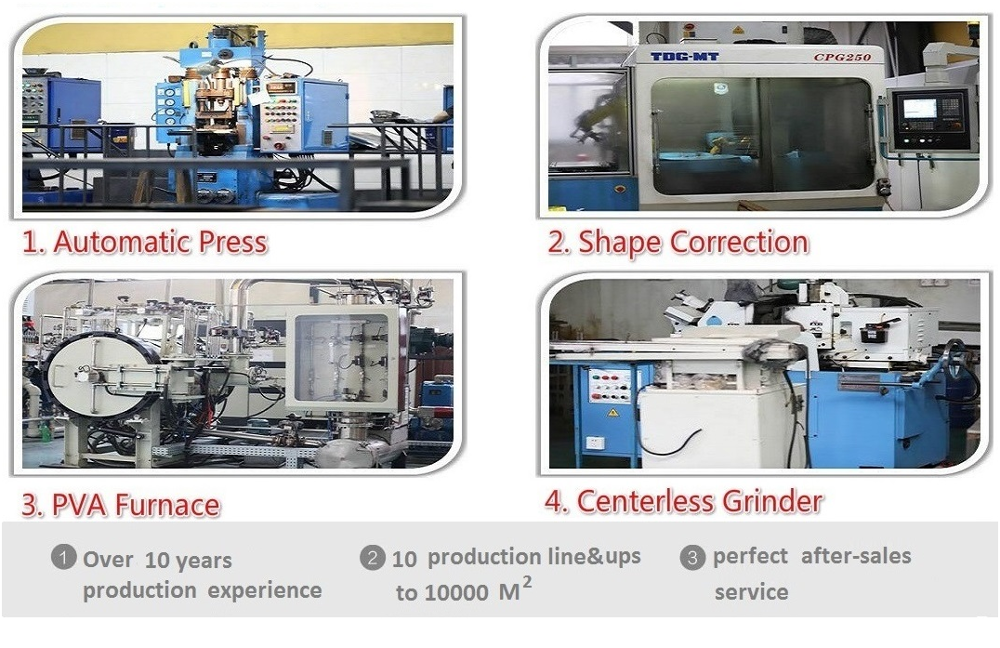

⚙ Main Production Equipment
Our products can be used in manufacture of mould, electronics, car engine and accessories, petroleum machinery, machinofacture, etc. We have stable customers such as the United States, Russia, Indonesia, South Korea, Japan, Australia and so on.

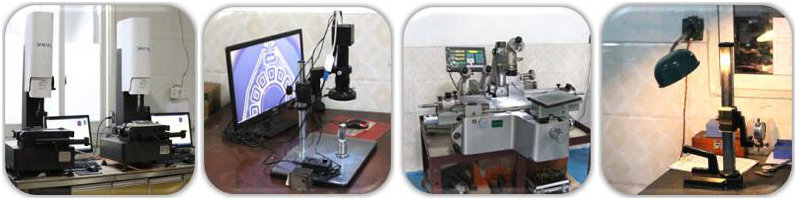

✔ Testing Machine
We continuously improve techniques and introduce advanced equipment, enhancing the professionalism and production scale to a large extent. The company’s product quality and public praise have reached the domestic middle upper level.
📦 Packing Details
1> Put the goods encased with plastic bag or plastic case in wooden box/carton/iron box, etc.
2> Other packing will be accepted according to your needs.
? Frequently Asked Questions
Q1: How long is your delivery period?
A1: It depends on specific conditions. However, it could be 10 to 15 days on average.
Q2: Do you offer samples?
A2: Yes, we do offer samples. However, buyers need to pay for the freight charge. Whether samples are free or not depends on the quantity you buy.
Q3: How do you pack the products?
A3: In general, we use wood, plastic or carton boxes. We also put some soft materials inside to prevent possible damage to products.
Q4: How much advance payment is required?
A4: For in-stock items, full payment is required. For custom orders, a 50% advance payment is needed to start production, with the balance due before delivery.
Q5: What payment methods do you accept?
A5: We accept various payment patterns; you can discuss your preferred payment method with our team.
Q6: Are the products suitable for heavy-duty machining?
A6: Yes, our cemented carbide products are designed for applications including electronics, car engines, and petroleum machinery.
