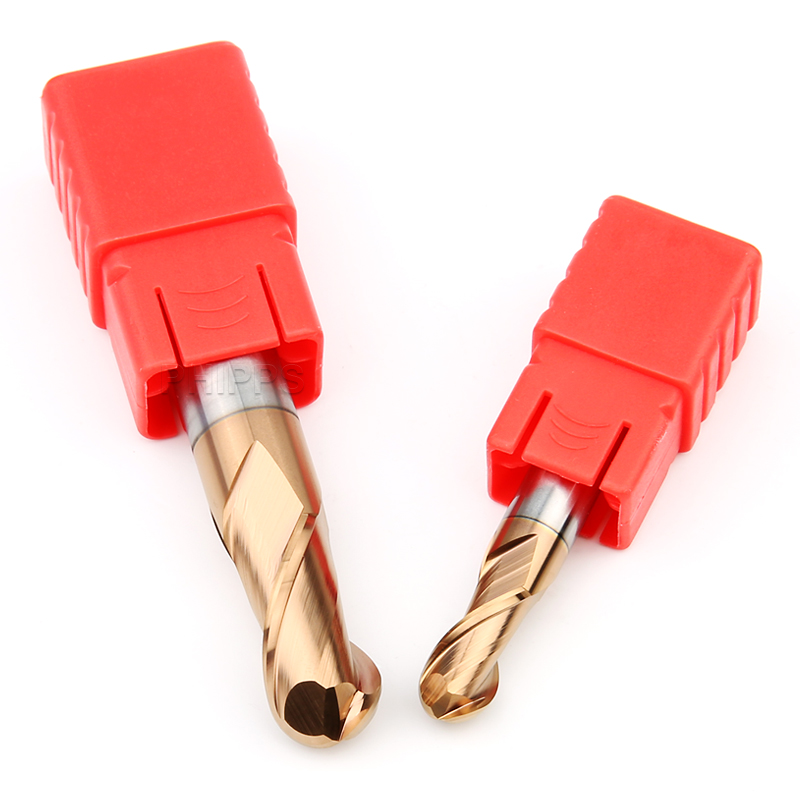

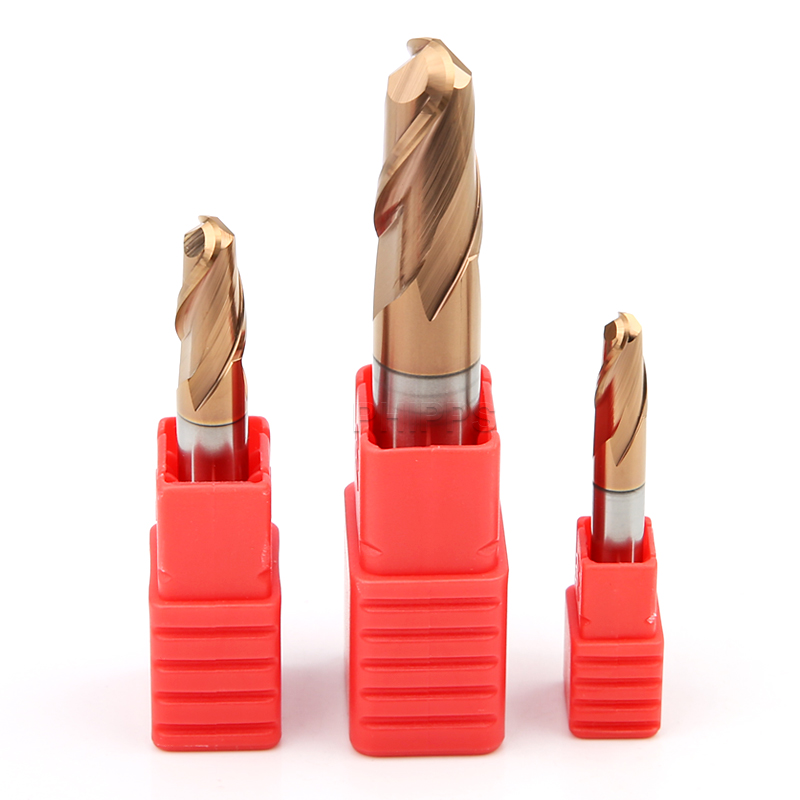

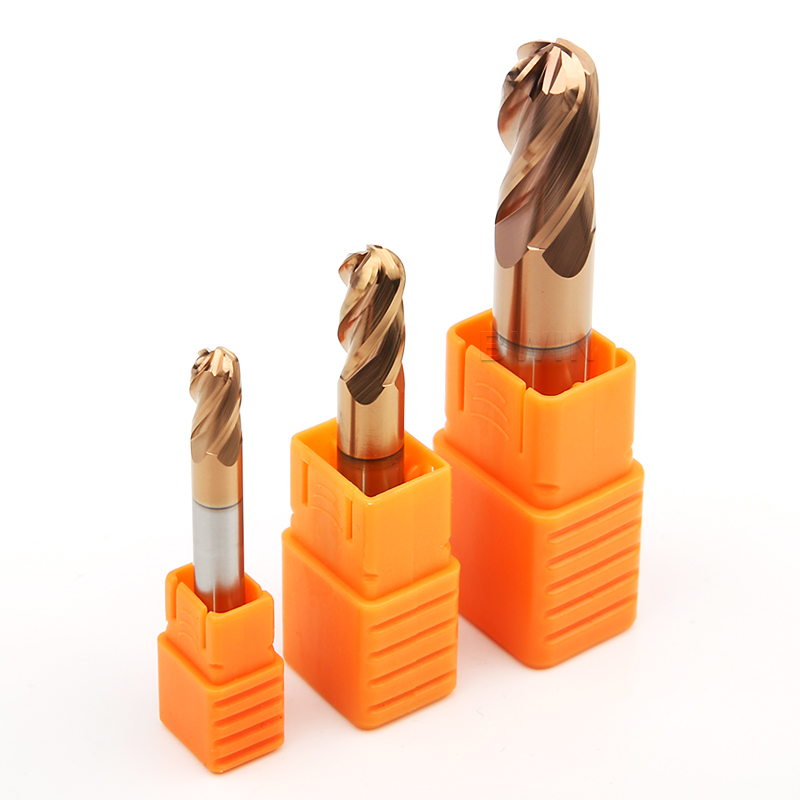

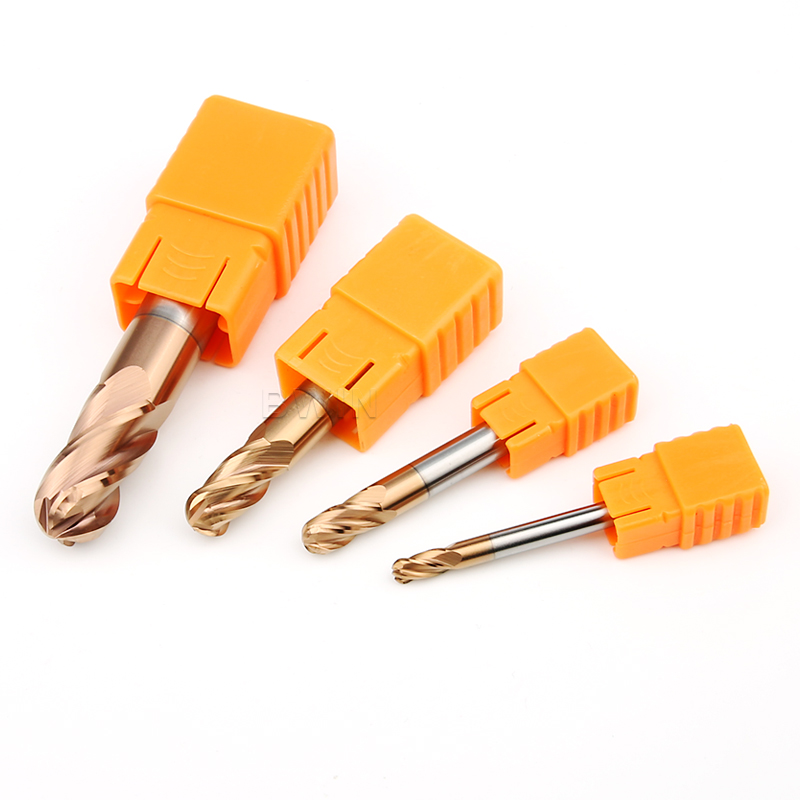

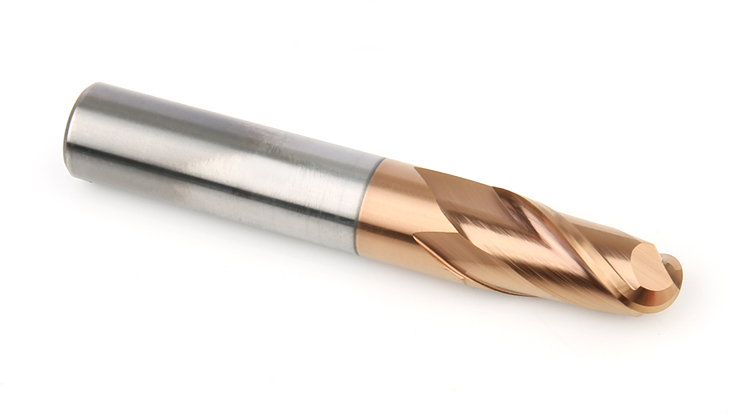

| Product Name | HRC 55 2/4 Flute d4-d20 Diameter Carbide Ballnose Endmill |
| Material | 100% raw material |
| Features | High Speed Cutting |
| Processing Type | Metal Machining |
| Precision | within 0 ~ -0.01mm |
| HRC | 55 |
| Machine Type | CNC Milling Machine |
| Flutes | 2 flutes and 4 flute |
| Suitable for | Cast iron, carbon steel, alloy steel |
| Specification | R2*8*d4*50L-2F HRC55 |
| Item Grade | HRC45 (YG10X) | HRC55 (YL10.2 & WF25) | HRC60 (Germany K44 & K40) | HRC65 (Sandvik H10F) |
|---|---|---|---|---|
| Details | Grain size 0.7um Co10% Flexural strength 3320N/mm² |
Grain size 0.6um Co10% Flexural strength 4000N/mm² |
Grain size 0.5um Co12% Flexural strength 4300N/mm² |
Grain size 0.5um Co10% Flexural strength 4300N/mm² |
| End mill Grade | Coating Type | Color | Thickness (um) | Oxidation Temp.(°C) | Application |
|---|---|---|---|---|---|
| HRC 45 | AlTiN | Black | 1.5-3 | 850°C | General steel |
| HRC 55 | TiSiN | Bronze | 1.5-3 | 900°C | General steel, cast iron |
| HRC 60 | Nano | Dark Black | 1-3 | 1100°C | High hard material, mould steel, cast iron etc |
| HRC 65 | Naco | Blue | 2-4 | 1200°C | Titanium alloy, high temperature alloy, hardened Steel |

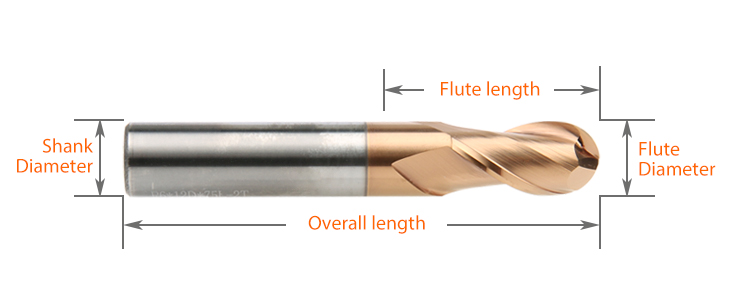

| Specification | Flute Dia. | Flute Length | Shank Dia. | Overall length |
|---|---|---|---|---|
| R1.5*6*3*50 | 3 | 6 | 3 | 50 |
| R1.5*6*3*75 | 3 | 6 | 3 | 75 |
| R1.5*6*3*100 | 3 | 6 | 3 | 100 |
| R0.5*2*4*50 | 1 | 2 | 4 | 50 |
| R0.75*3*4*50 | 1.5 | 3 | 4 | 50 |
| R1*4*4*50 | 2 | 4 | 4 | 50 |
| R1.25*5*4*50 | 2.5 | 5 | 4 | 50 |
| R1.5*6*4*50 | 3 | 6 | 4 | 50 |
| R1.75*7*4*50 | 3.5 | 7 | 4 | 50 |
| R2*8*4*50 | 4 | 8 | 4 | 50 |
| R2*8*4*75 | 4 | 8 | 4 | 75 |
| R2*8*4*100 | 4 | 8 | 4 | 100 |
| R0.5*2*4*75 | 1 | 2 | 4 | 75 |
| R0.75*3*4*75 | 1.5 | 3 | 4 | 75 |
| R1*4*4*75 | 2 | 4 | 4 | 75 |
| R1.25*5*4*75 | 2.5 | 5 | 4 | 75 |
| R1.5*6*4*75 | 3 | 6 | 4 | 75 |
| R2.5*10*5*50 | 5 | 10 | 5 | 50 |
| R2.5*10*5*75 | 5 | 10 | 5 | 75 |
| R2.5*10*5*100 | 5 | 10 | 5 | 100 |
| R0.5*2*6*50 | 1 | 2 | 6 | 50 |
| R0.75*3*6*50 | 1.5 | 3 | 6 | 50 |
| R1*4*6*50 | 2 | 4 | 6 | 50 |
| R1.25*5*6*50 | 2.5 | 5 | 6 | 50 |
| R1.5*6*6*50 | 3 | 6 | 6 | 50 |
| R2*8*6*50 | 4 | 8 | 6 | 50 |
| R2.5*10*6*50 | 5 | 10 | 6 | 50 |
| R3*12*6*50 | 6 | 12 | 6 | 50 |
| R3*12*6*75 | 6 | 12 | 6 | 75 |
| R3*12*6*100 | 6 | 12 | 6 | 100 |
| R3*12*6*150 | 6 | 12 | 6 | 150 |
| R3.5*14*8*60 | 7 | 14 | 8 | 60 |
| R4*16*8*60 | 8 | 16 | 8 | 60 |
| R4*16*8*75 | 8 | 16 | 8 | 75 |
| R4*16*8*100 | 8 | 16 | 8 | 100 |
| R4*16*8*150 | 8 | 16 | 8 | 150 |
| R4.5*18*10*75 | 9 | 18 | 10 | 75 |
| R5*20*10*75 | 10 | 20 | 10 | 75 |
| R5*20*10*100 | 10 | 20 | 10 | 100 |
| R5*20*10*150 | 10 | 20 | 10 | 150 |
| R5.5*22*12*75 | 11 | 22 | 12 | 75 |
| R6*24*12*75 | 12 | 24 | 12 | 75 |
| R6*24*12*100 | 12 | 24 | 12 | 100 |
| R6*24*12*150 | 12 | 24 | 12 | 150 |
| R7*28*14*80 | 14 | 28 | 14 | 80 |
| R7*28*14*100 | 14 | 28 | 14 | 100 |
| R7*28*14*150 | 14 | 28 | 14 | 150 |
| R8*32*16*100 | 16 | 32 | 16 | 100 |
| R8*32*16*150 | 16 | 32 | 16 | 150 |
| R9*36*18*100 | 18 | 36 | 18 | 100 |
| R9*36*18*150 | 18 | 36 | 18 | 150 |
| R10*40*20*100 | 20 | 40 | 20 | 100 |
| R10*40*20*150 | 20 | 40 | 20 | 150 |
