| SPECIFICATIONS | Units | XH7126 |
|---|---|---|
| Table size | mm | 800*300 |
| X axis travel | mm | 600 |
| Y axis travel | mm | 360 |
| Z axis travel | mm | 450 |
| Max. worktable load | kg | 300 |
| T slot(number-width*pitch) | - | 3-16*90 |
| Max. spindle speed | rpm | 8000 |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 |
| Cutting feed speed | mm/min | 1-10000 |
| Guide rail type | - | Linear rail |
| Distance from spindle axis to column surface | mm | 410 |
| Distance between spindle nose and table surface | mm | 100-550 |
| Positioning accuracy | mm | 0.0075 |
| Repeat positioning accuracy | mm | 0.005 |
| Tool magazine | - | Armless 16 |
| Max. tool diameter | mm | φ90 |
| Max. tool weight | kg | 8 |
| Machine weight | kg | 3000 |
| Overall dimension(L*W*H) | mm | 1900*1700*2100 |

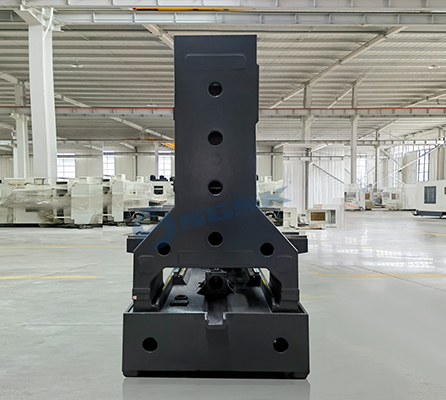

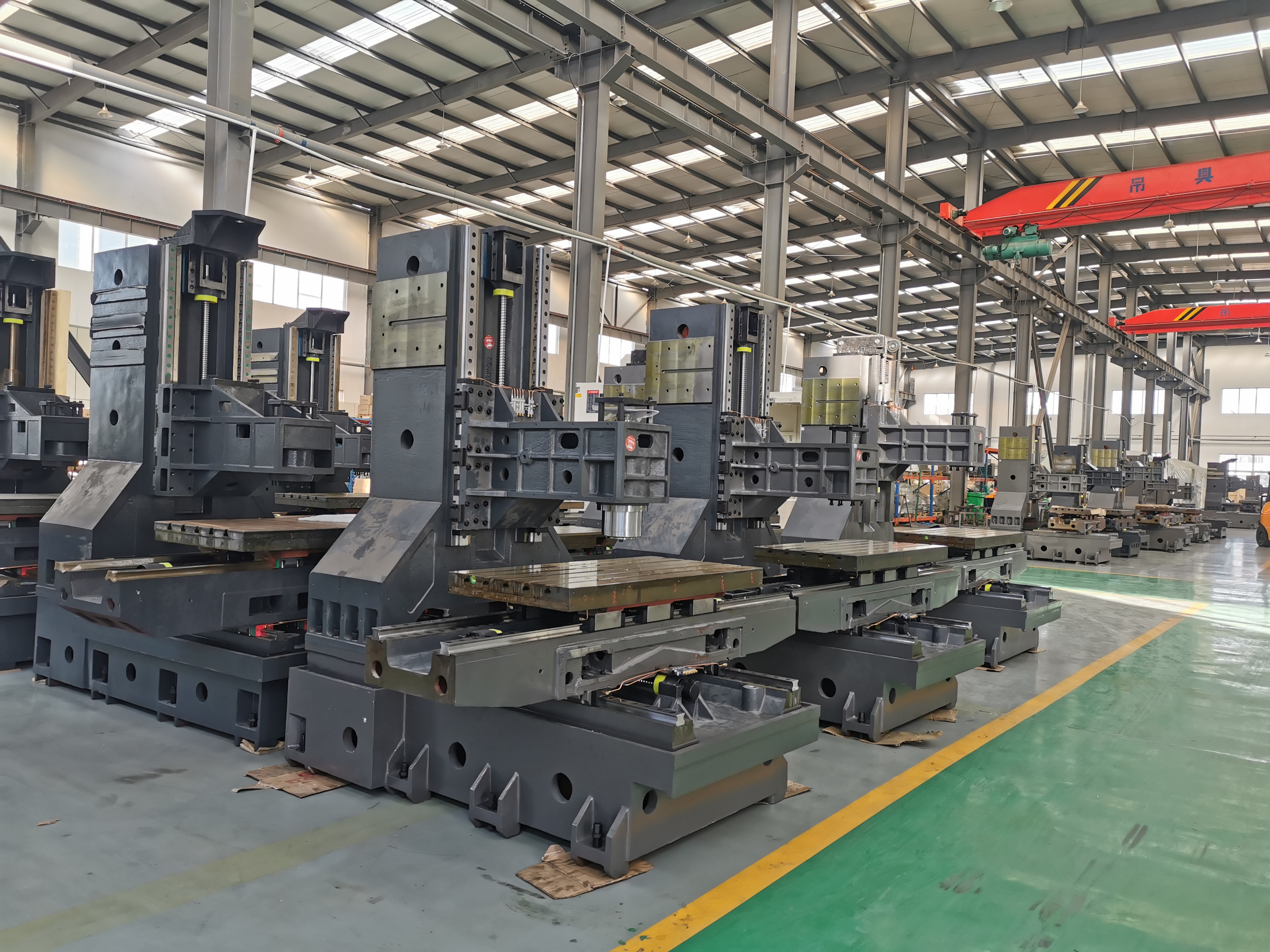

High strength high quality HT300 cast iron

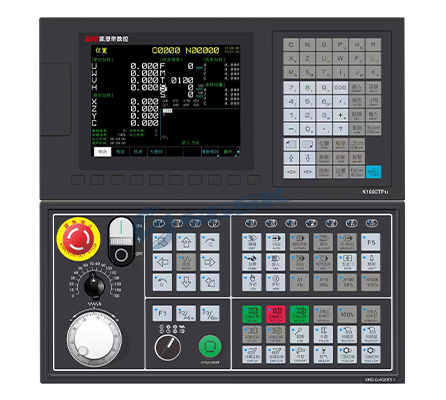

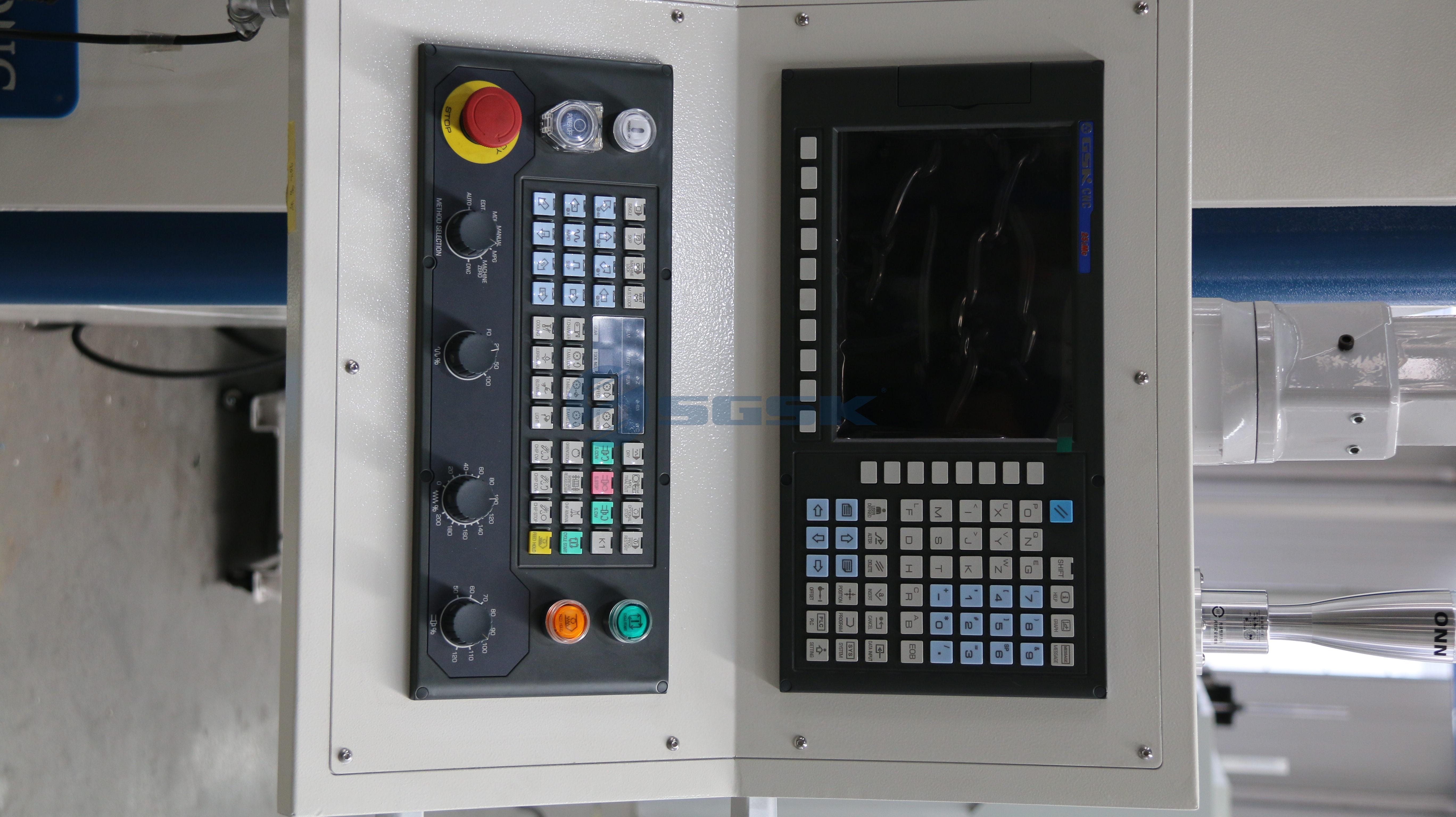

Standard: GSK25i / KND1000 control

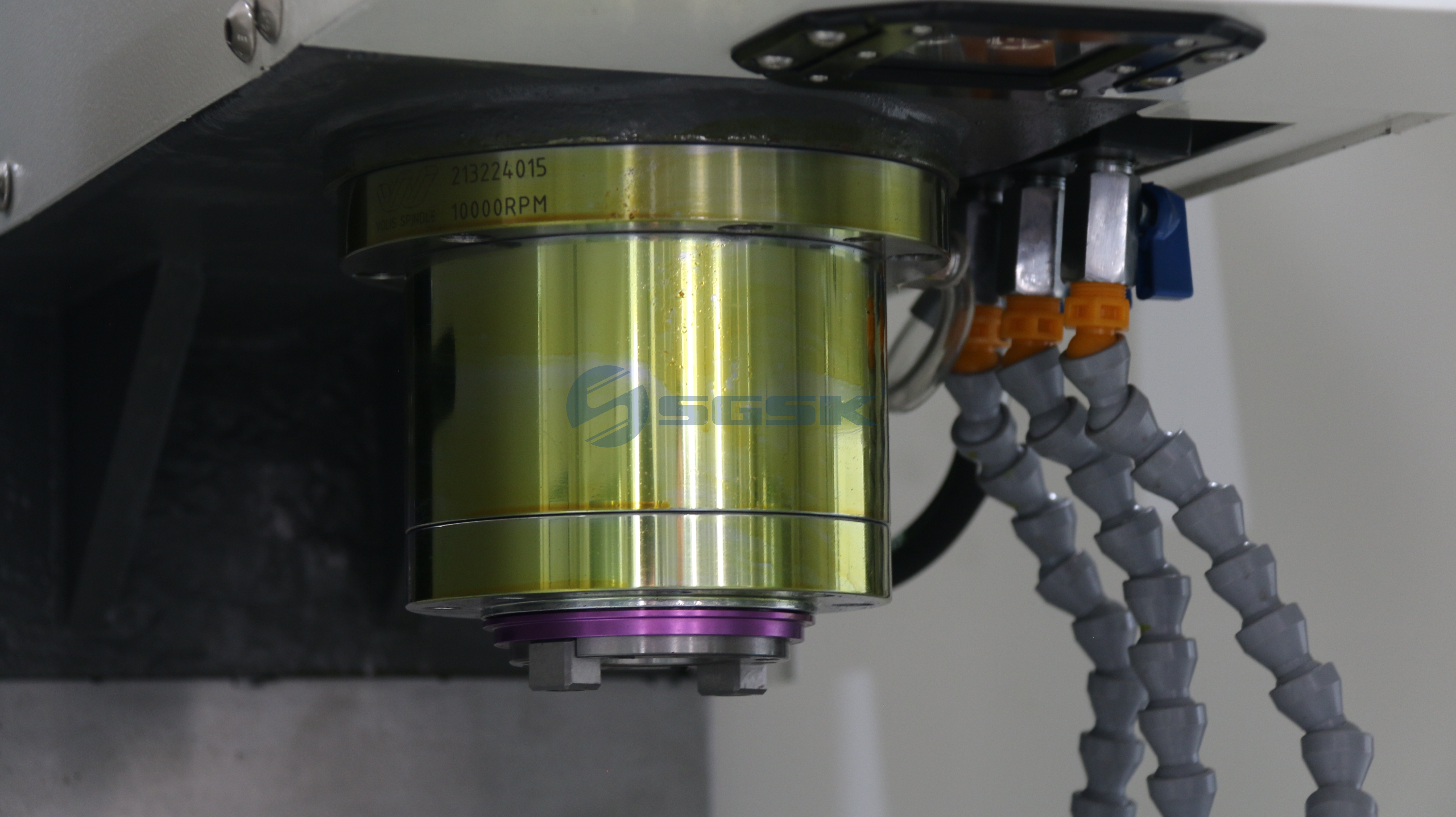

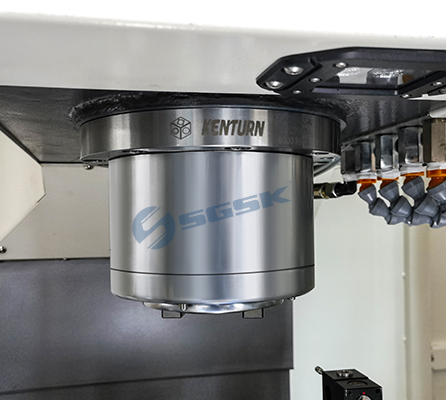

1. Taiwan spindle BT40 8000rpm
2. Passed dynamic balance ISO rating test

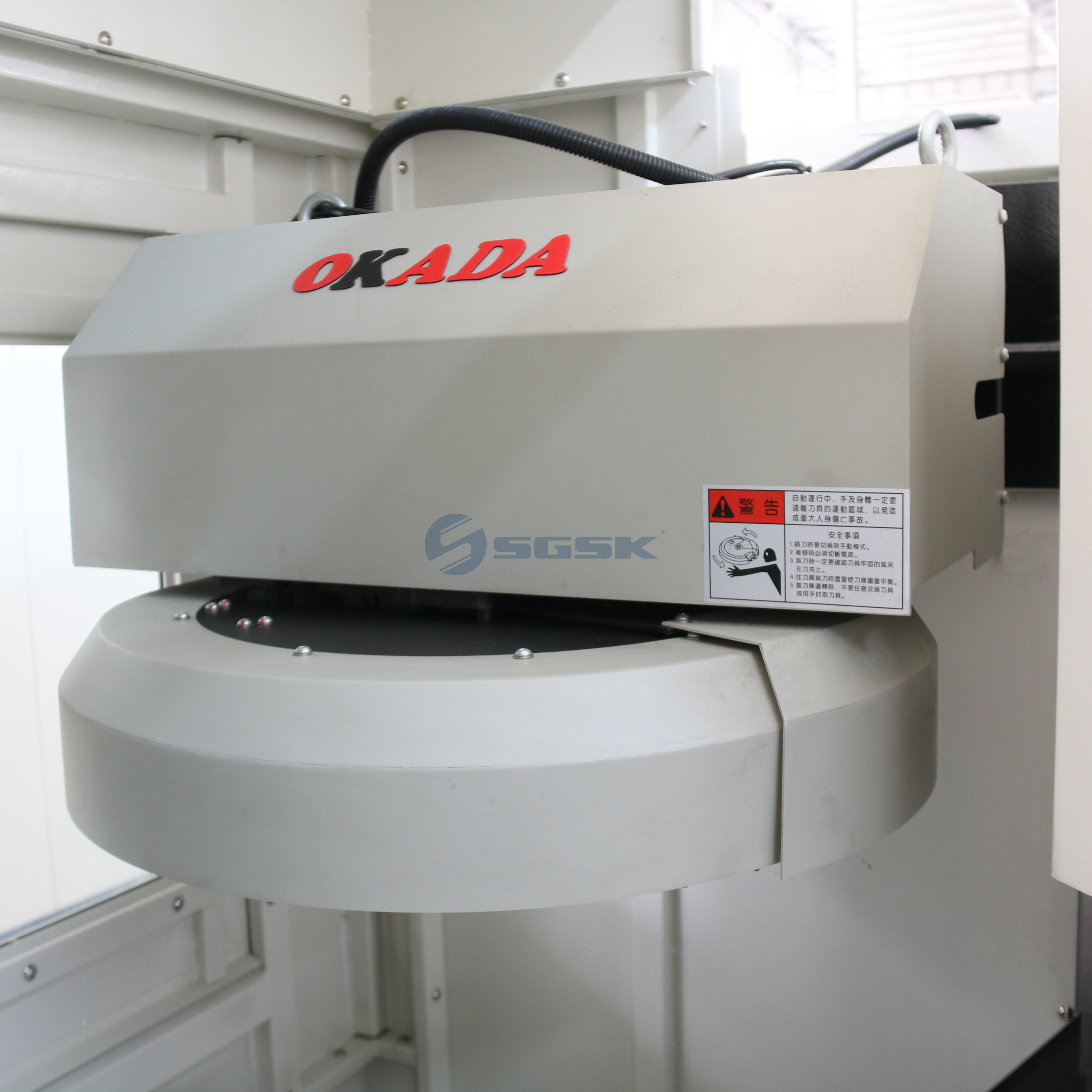

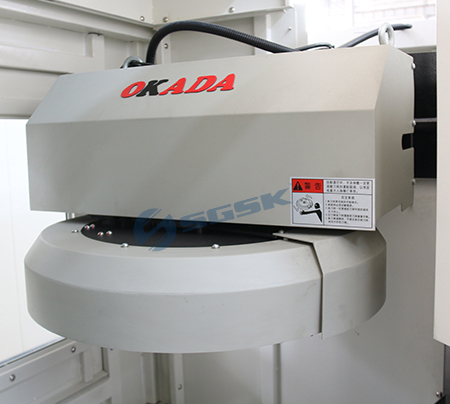

1.Taiwan OKADA armless 16 tool magazine.
2. Tool change time only 6-7 seconds.

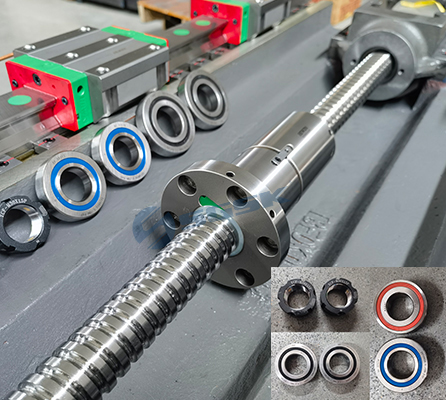

1. China famous brand lead screw
2. Lead screw bearing using SKF or NACHI bearing
3. Coupling YC directly connected

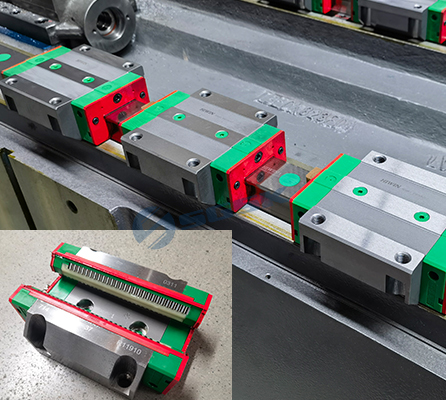

1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI

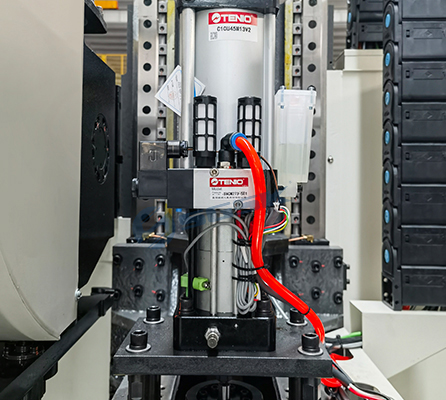

Taiwan spindle Tool unclamp cylinder

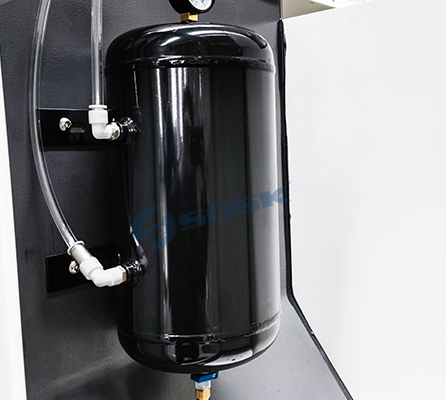

Air storage tank to ensure the stability of spindle tool change

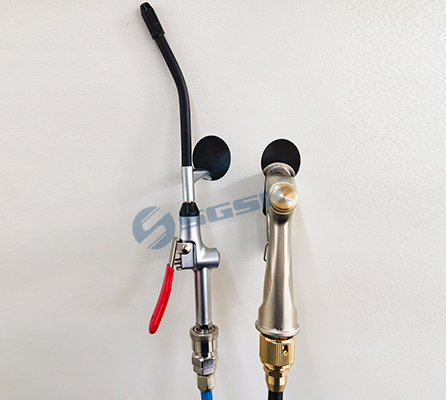

High-pressure air guns and high-pressure water guns

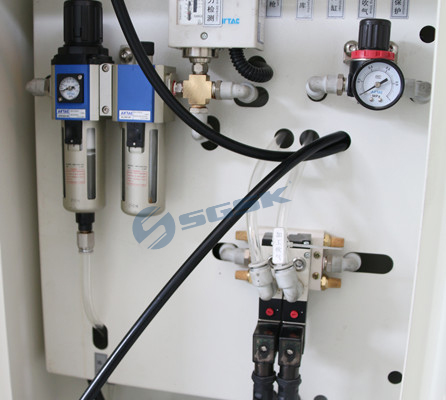

Standard with AirTAC Pneumatic Components

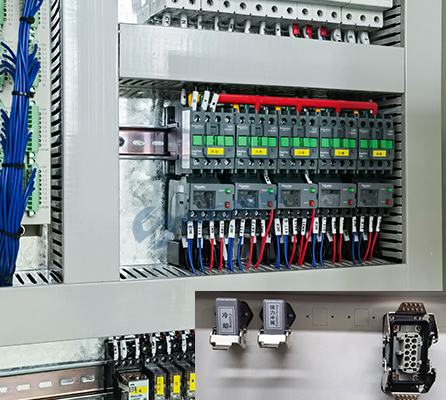

1. With Schneider safety electrical components
2. Quick plug as standard

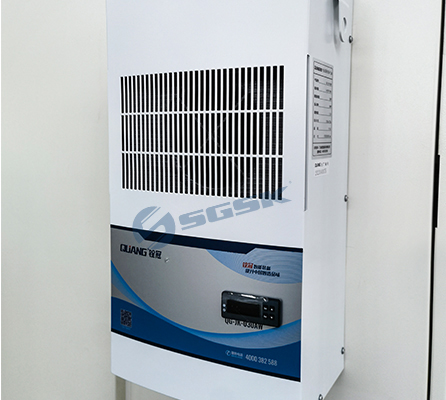

With Industrial electrical cabinet air conditioner. Cooling the electric box better.

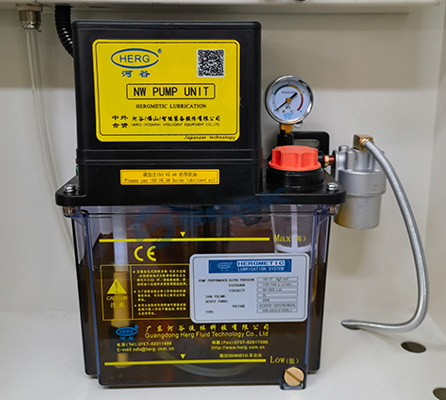

HERG Automatic centralized lubrication device.

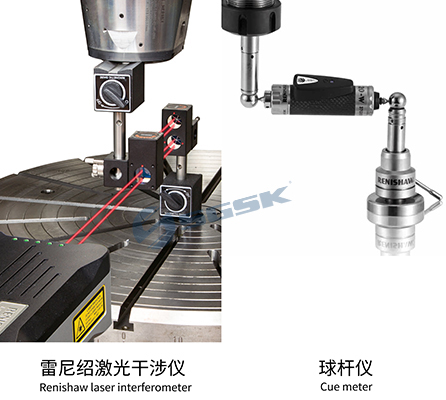

Each machine passed Renishaw laser interferometer testing and ballbar testing

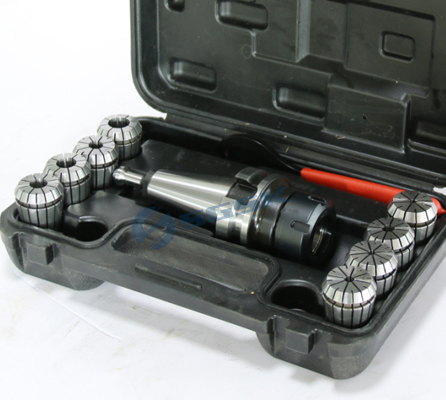

Standard with BT40 milling chuck.
Each machine passed Renishaw laser interferometer testing and ballbar testing
MOQ is one set, and the warranty period is 18 months.

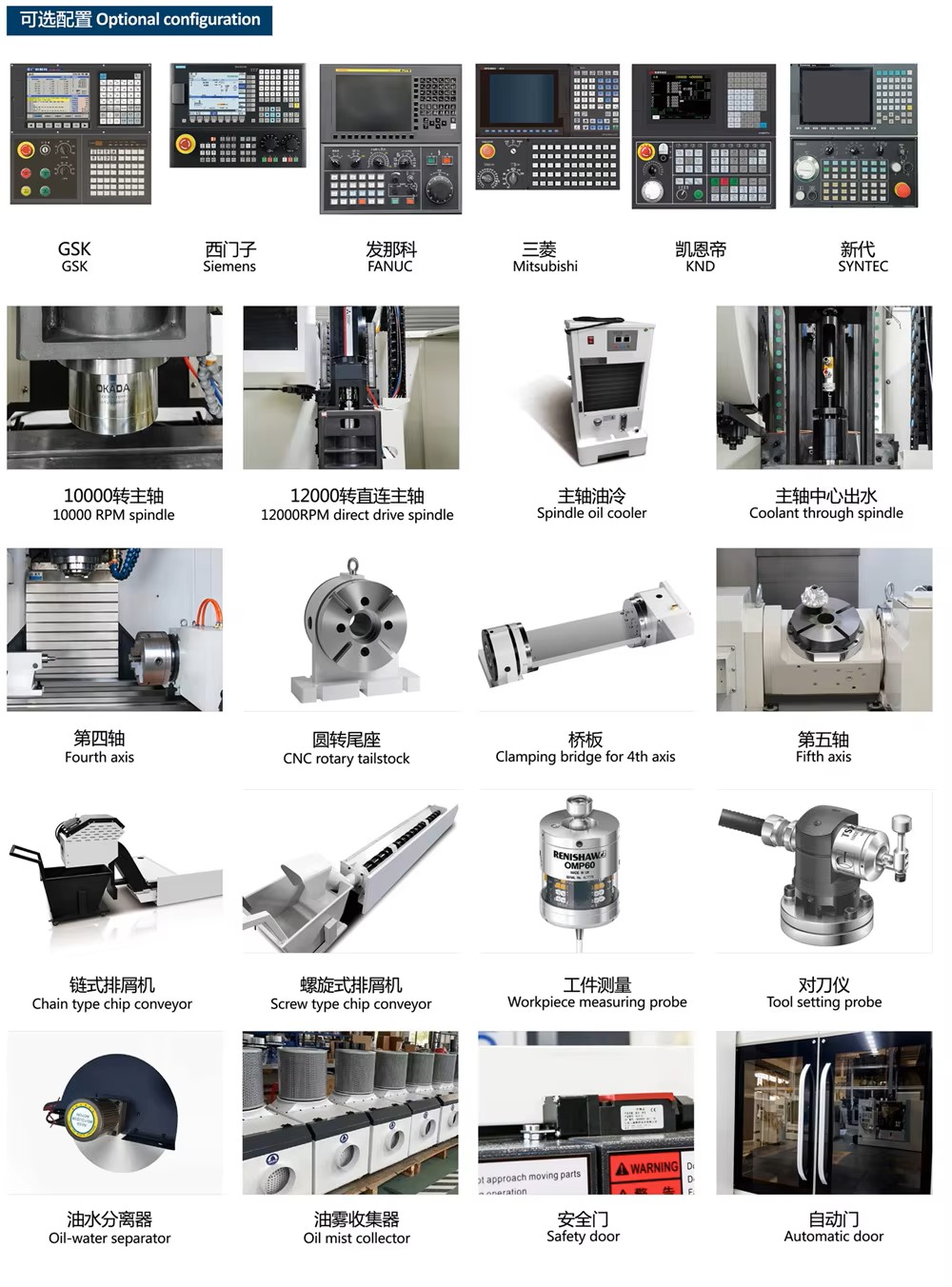

We offer systems from FANUC, SIEMENS, MITSUBISHI, LNC, SYNTEC, GSK, etc., depending on your choice and application needs.
For conventional machines, we will deliver within 30-45 working days after receiving the deposit. Special configurations may require a slightly longer lead time.
The machines are packed using standard iron pallets wrapped securely with protective plastic films.
Please share your machining requirements or the required worktable size, and we can recommend the best model. Alternatively, you can send us your product drawings and we will select the most fitting configuration.
We accept FOB, CFR, and CIF trade terms. Payment terms include T/T (30% initial payment when ordering, 70% balance payment prior to shipment) or an Irrevocable LC at sight.
