Tungsten Carbide Straight Slot Gun Drill Deep Hole Machining Tool

Customization:	Available
After-sales Service:	Online
Warranty:	1 Year

Basic Info.

Model NO. carbide gun drill

Logo Printing Without Logo Printing

Size Small

Customized Customized

Type Cutting Tool

Material Tungsten Carbide

Certification ISO 9001:2008, ISO 9001:2000

OEM & ODM Support

Advantage High Hardness, Wear Resistance and Toughness

Types Customized Short Carbide Gun Drill Blanks Rod

Allow Standard&Customized

Description Short Tungsten Carbide Gun Drill Blanks Rod

Transport Package Export Packing

Specification As Your Request

Production Capacity 500set/Year

Product Description

Tungsten Carbide Straight Slot Gun Drill Deep Hole Machining Tool

✦

Carbide offers a full range of deep hole drills and gun drills.

✦

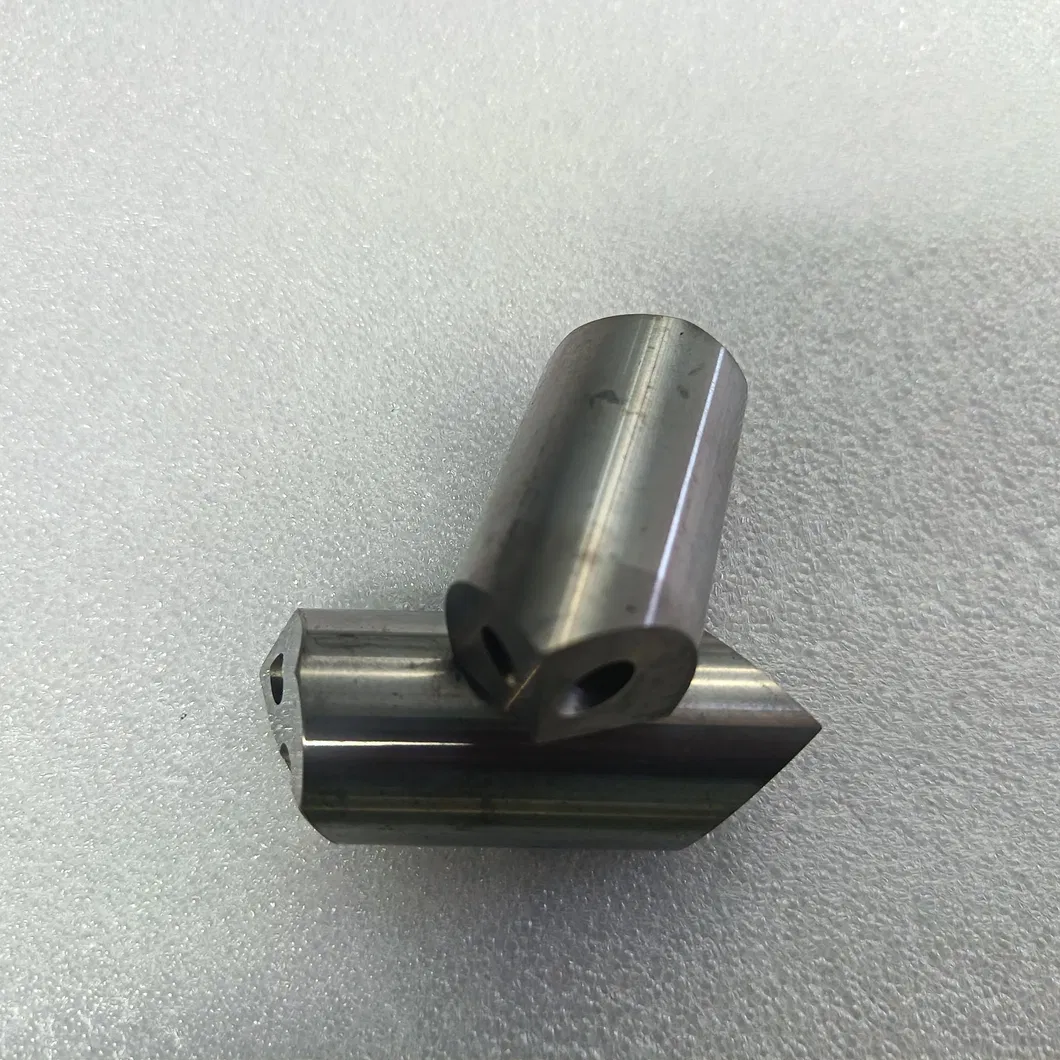

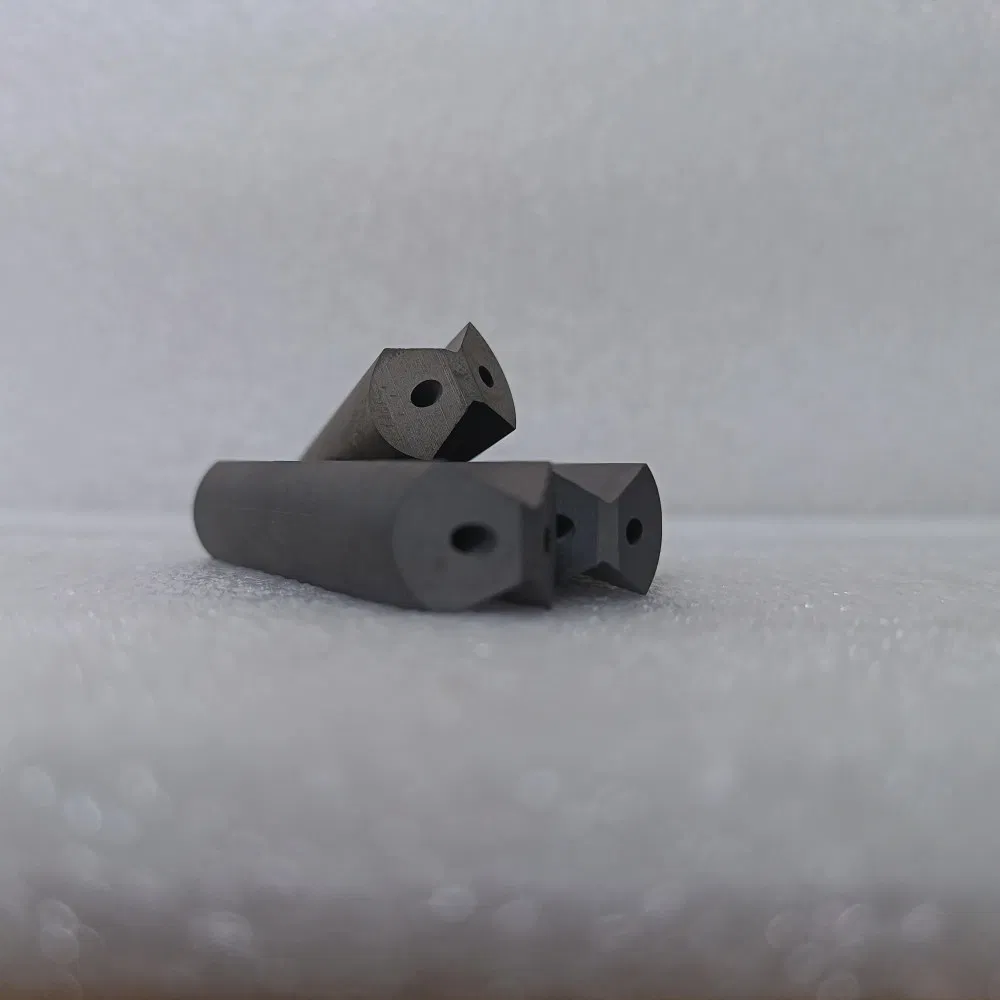

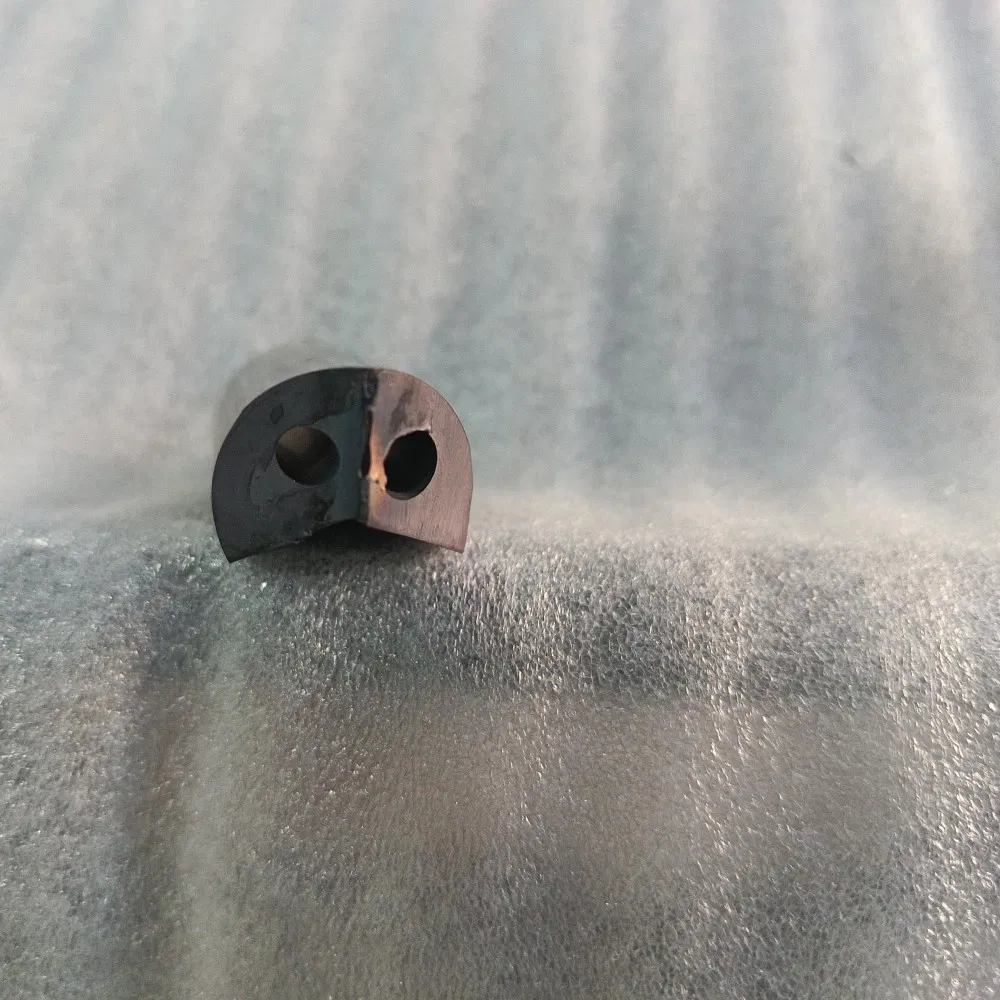

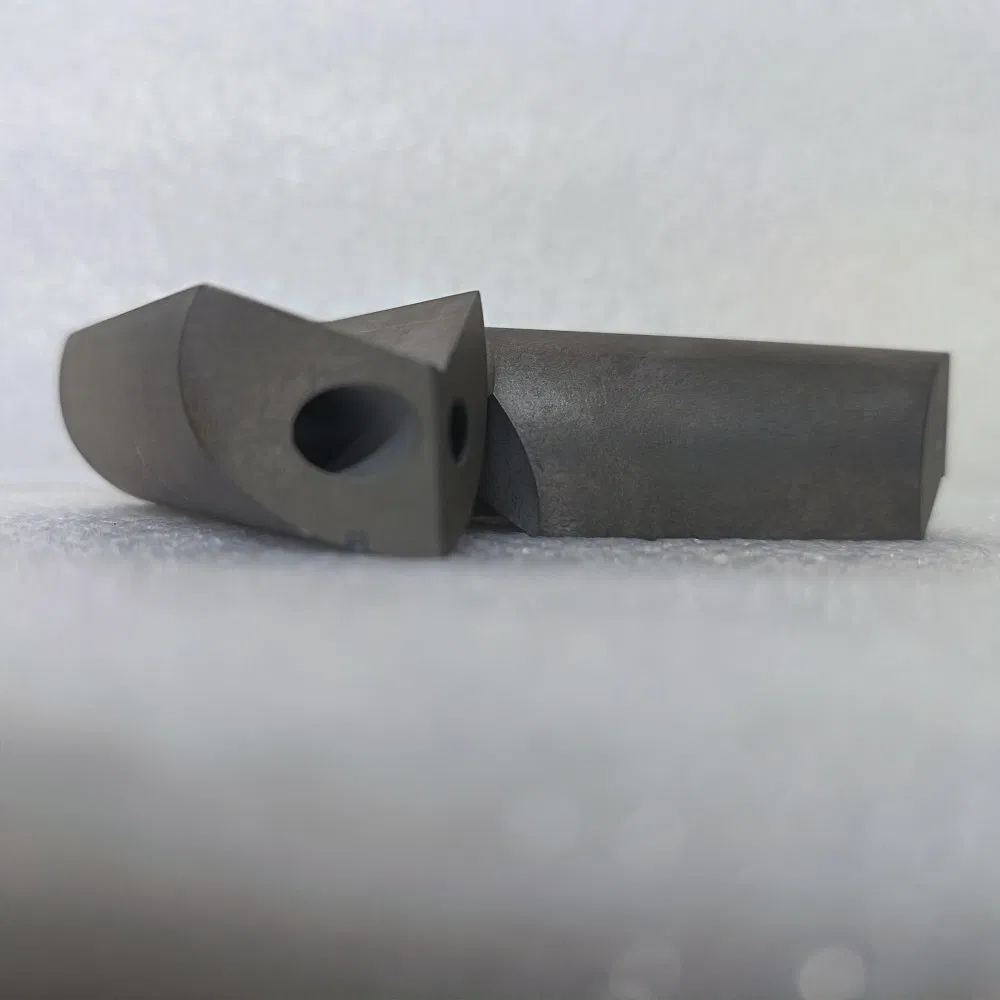

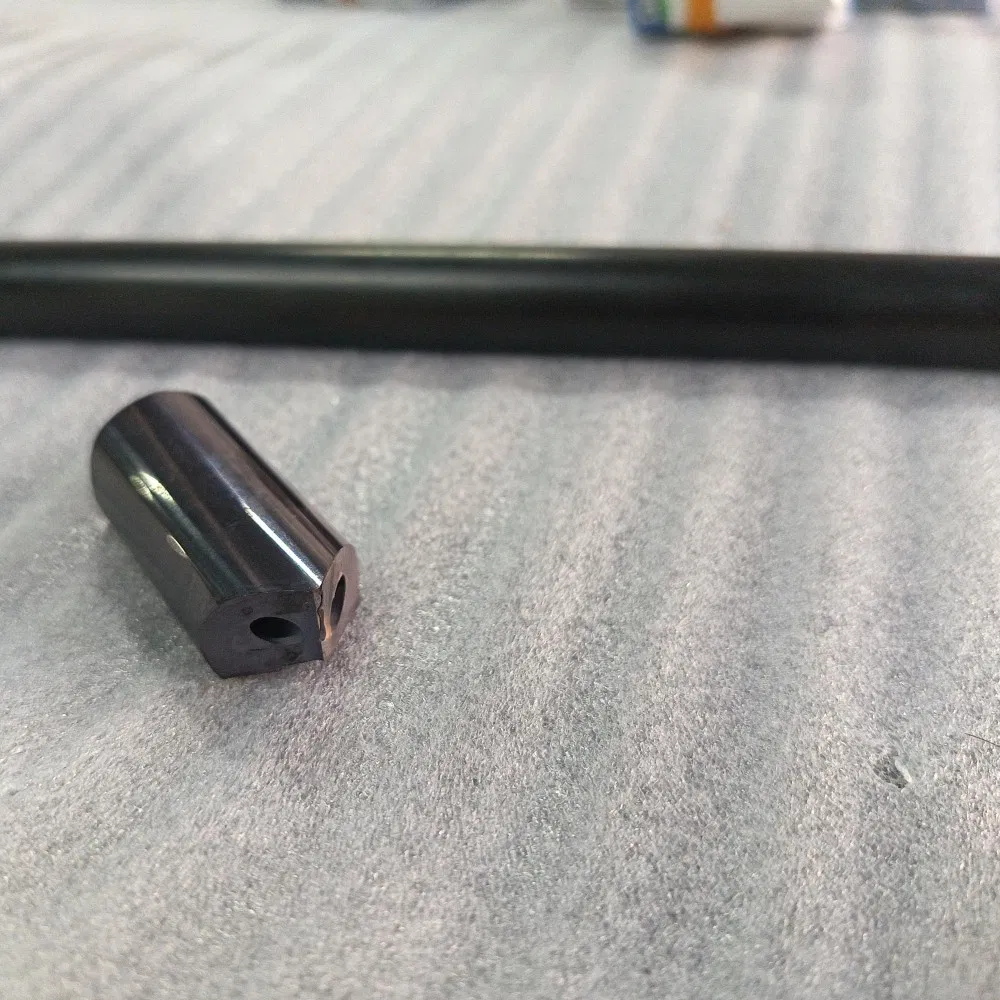

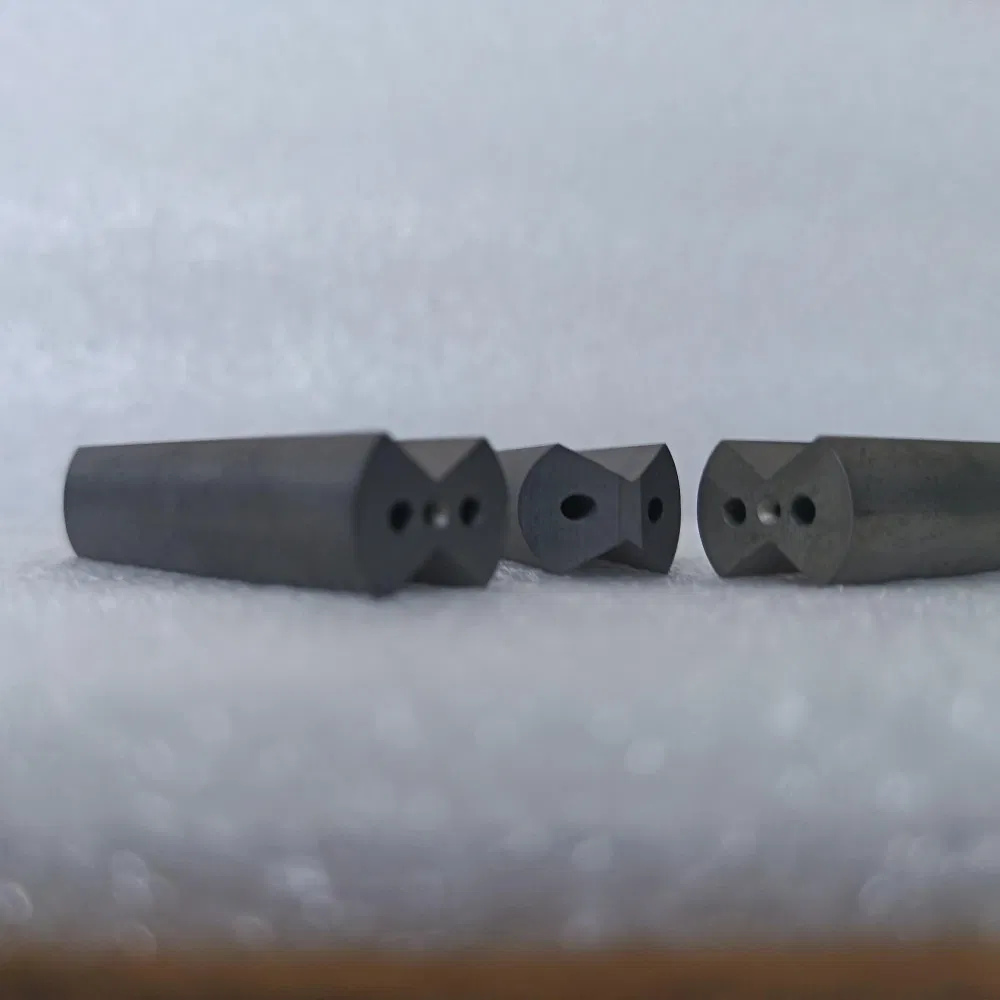

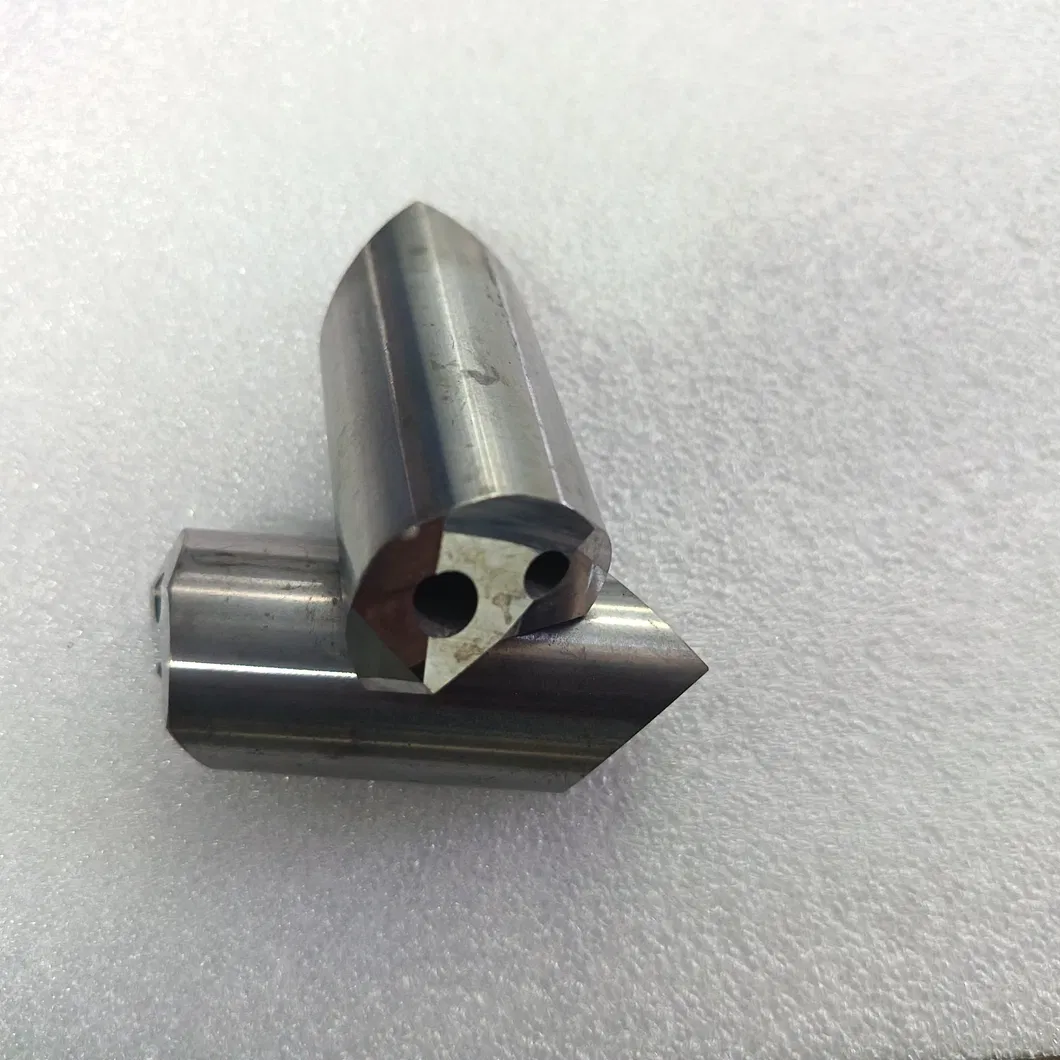

Gun drill blanks-Carbide drill rods for gun drills can be solid drill rods or drill bits cut to the required length, and can be pre-formed and pre-ground at angles. Cooling holes of round or other shapes can also be manufactured, including single-hole, double-hole, or kidney-shaped holes.

✦

Standard gun drill extrusions are available in lengths up to 330 mm, with outer diameters ranging from 3 mm to 45 mm, and are offered in three different cooling hole geometries. Gun drill bits with an outer diameter less than 10 mm can be manufactured with one or two cooling holes.

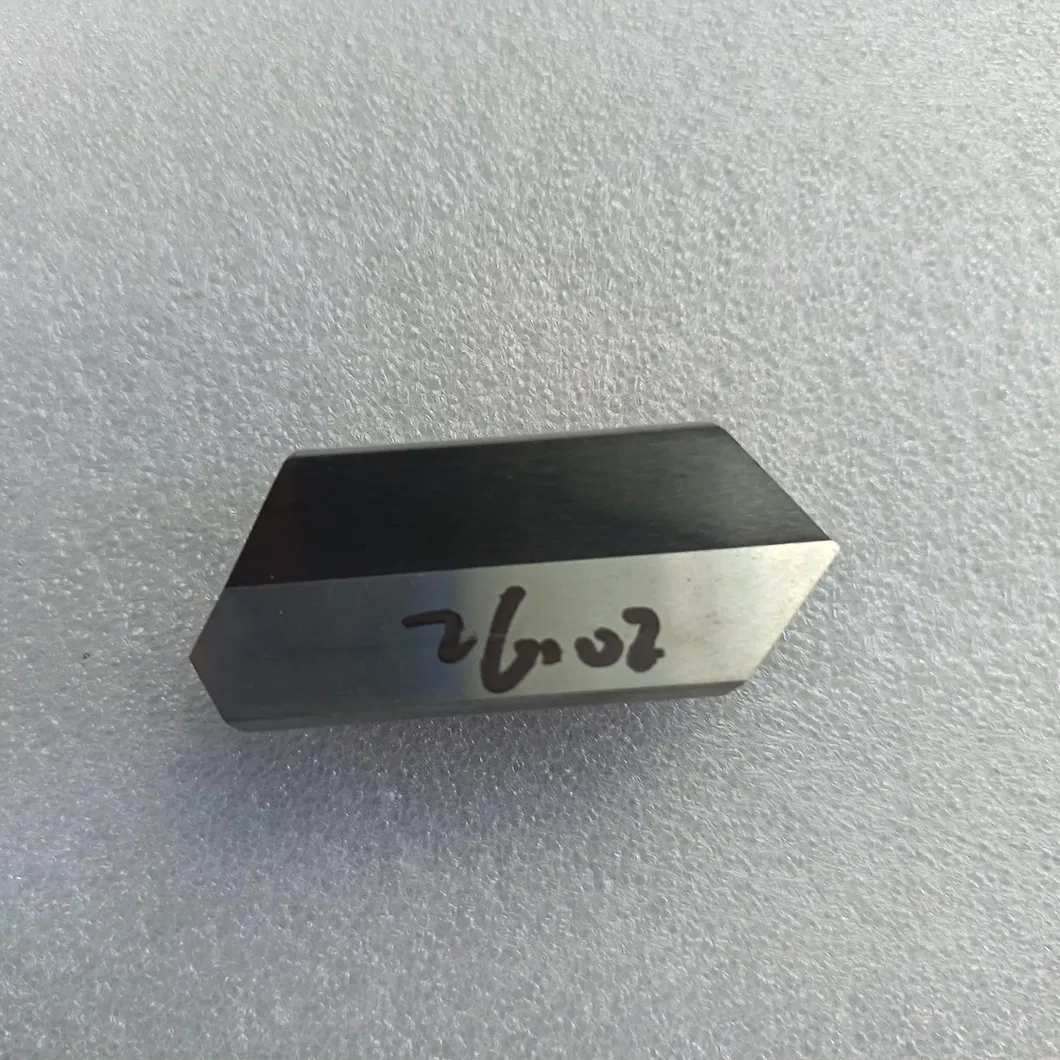

gun drill blanks			gun drill tips
Dimension D*L	grade	grade	Dimension D*L	grade
	AF6	AS10		AF6	AF6
2.4*330mm
3.5*330mm	x
4.5*330mm	x
5.5*330mm	x
6.5*330mm	x
7.0*330mm	x			7.0*35mm
7.5*330mm	x			7.5*35mm
8.0**330mm	x			8.0*35mm
8.5**330mm	x			8.5*35mm
9.0**330mm	x			9.0*35mm
9.5**330mm	x			9.5*35mm
10.0**330mm				10.0*35mm
10.5**330mm	x			10.5*40mm
11.0**330mm				11.5*40mm
11.5**330mm	x			12.5*40mm
12.0**330mm				13.5*40mm
12.5*330mm	x			13.5*40mm
13.0*330mm				14.5*40mm
13.5*330mm	x			15.5*40mm
14.0*330mm				16.5*40mm
14.5*330mm	x			17.5*40mm
15.0*330mm				18.5*40mm
15.5*330mm	x			19.5*45mm
16.0*342mm				20.5*45mm
16.5*330mm	x			21.5*45mm
17.0*330mm				22.3*50mm	x
17.5*330mm	x			23.3*50mm	x
18.0*330mm				24.3*55mm	x
18.5*330mm	x			25.3*55mm	x
19.0*330mm				26.3*55mm	x
19.5*330mm	x			27.3*55mm	x
20.0*330mm				28.3*65mm	x
20.5*330mm	x			30.3*65mm	x
21.5*330mm	x			32.3*65mm	x
