CNC machine industrial quality high precision surface.
The milling cutter is made of micro-tungsten carbide, which is very tough, wear-resistant and high-cutting.
Milling cutter of different sizes to suit different usage scenarios. Smaller milling cutter are suitable for precise and delicate work such as model making or handling electronic components. Larger milling cutter are suitable for larger work areas and thicker materials, such as cutting and carving wood or metal.
The nano blue coating has high hardness and heat resistance, which keeps the tip of the tool critically sharp and lubricated. This extends life and produces the highest quality cuts.
| Specification Item | Details |
|---|---|

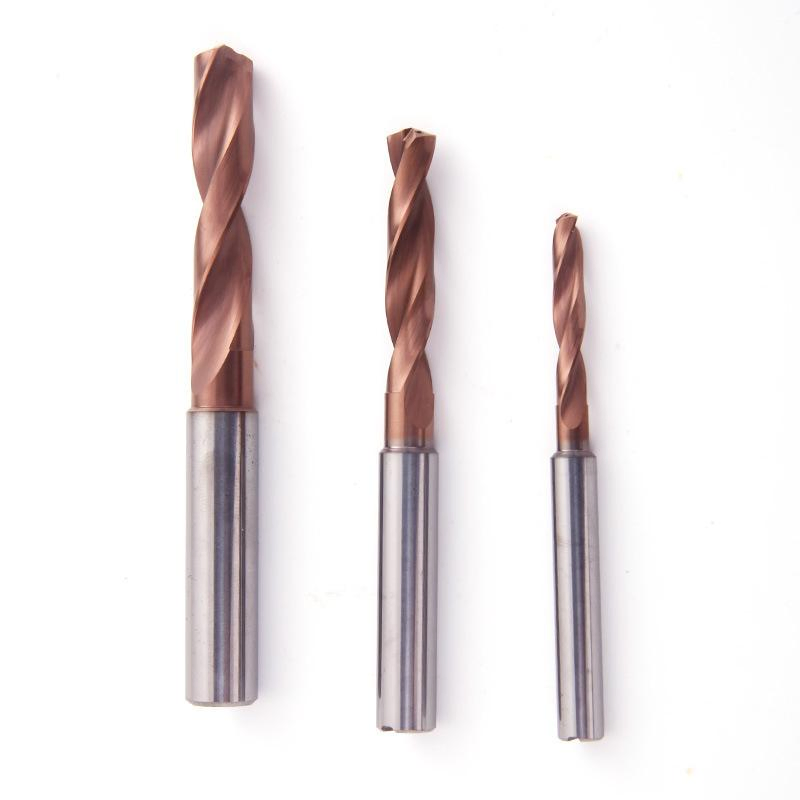

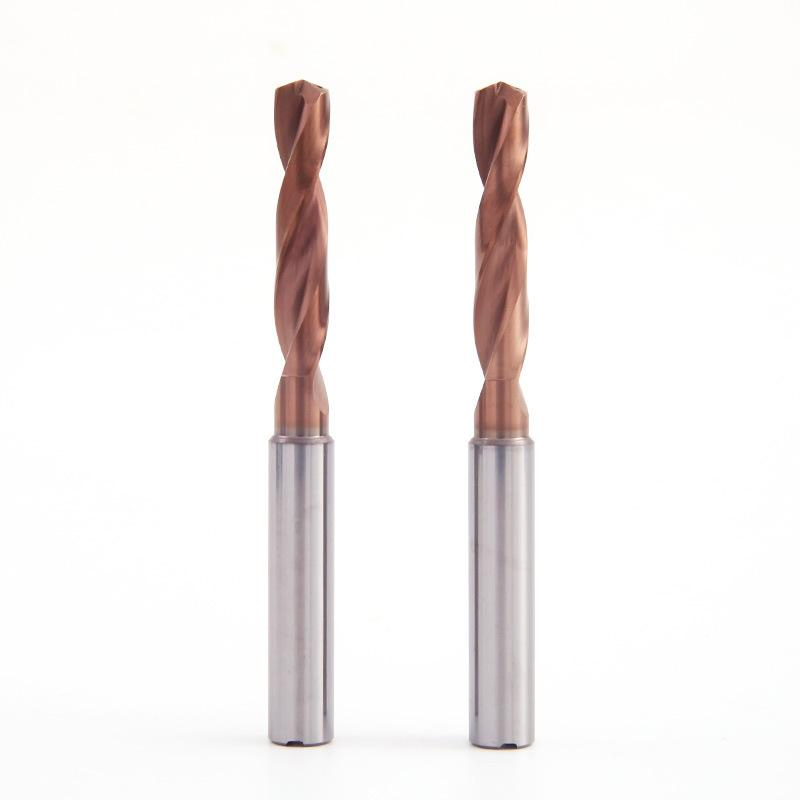

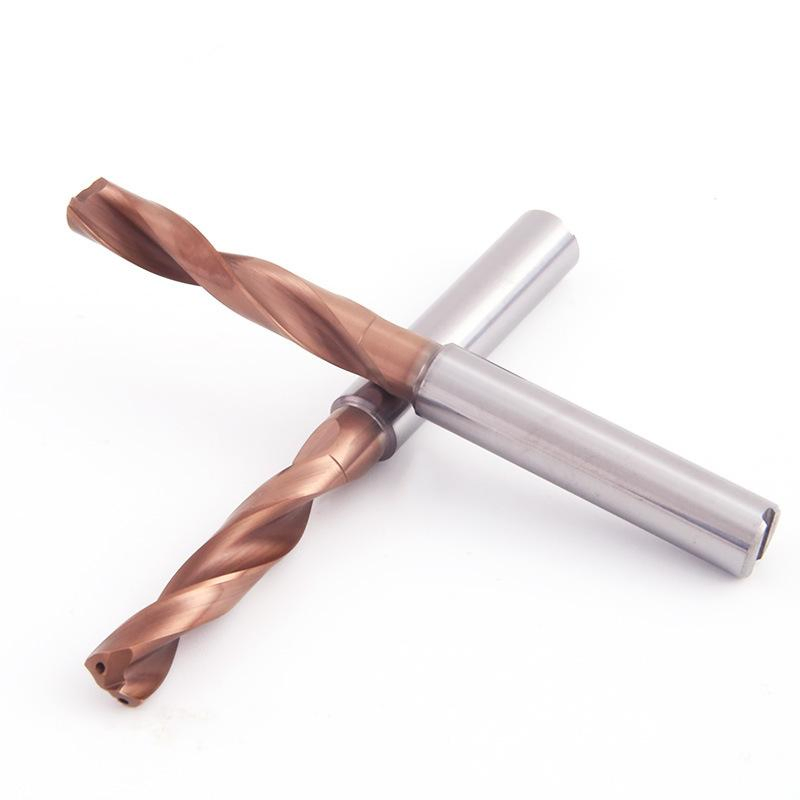

| Name | Tungsten Steel Internal Cooling Drill Bit |
| Material | Tungsten steel base material |
| Processing Hardness | 58 degree |
| Coating | Nano-coating |
| Suitable for processing materials | 3 months |
| Item Grade | HRC45 (YG10X) | HRC55 (YL10.2 & WF25) | HRC60 (Germany K44 & K40) | HRC65 (H10F) |
|---|---|---|---|---|
| Details | Grain size 0.7um Co10% Flexural strength 3320N/mm2 |
Grain size 0.6um Co10% Flexural strength 4000N/mm2 |
Grain size 0.5um Co12% Flexural strength 4300N/mm2 |
Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
| Characteristic | Coating Type | AlTiN | TiAlN | TiSiN | Naco |
|---|---|---|---|---|---|
| Properties | Hardness (HV) | 3300 | 2800 | 4300 | 42 (GPA) |
| Thickness (UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
| Oxidation Temp. (°C) | 900 | 800 | 1000 | 1200 | |
| Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
| Color | Black | Bronze | Bronze and gold | Blue | |
| Advantages | Thermal Stability | High heat stability | Normally cutting | Heavy cutting, and high hardness cutting | For high precision cutting |
| Cutting Mode | High speed, dry cutting | Cutting mould steel, stainless steel | High hardness cutting, mould steel processing | Most suitable for carbide cutting tools, turning inserts |
