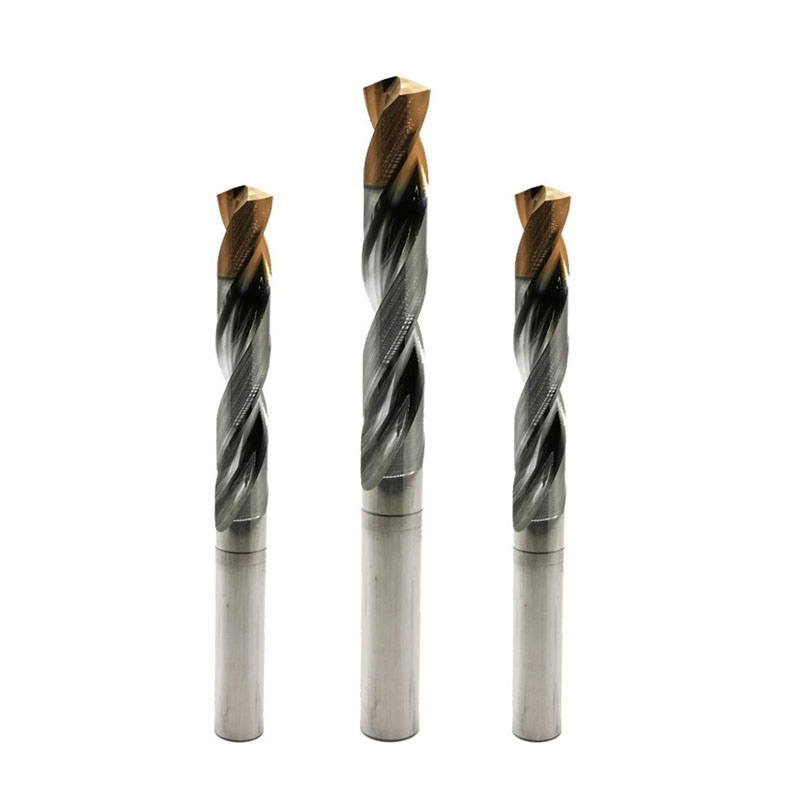

Wxsoon 5D Tungsten Solid Carbide Drill Bits for Hardened Steel

1 / 5

Wxsoon 5D Tungsten Solid Carbide Drill Bits for Hardened Steel

Customization:	Available
Customized:	Customized
Standard:	DIN, JIS, AISI

Send Inquiry

Product Description

Basic Info

Model NO. 5D Series

Length Stub-length

Type Twist Drill Bit

Material Tungsten Carbide

Usage Metal Drilling

ODM Drawings or Details

Lead Time 7~10 Work Days

Flutes 2

Transport Package 1 Piece/PP Tube

Specification D2~D20

Origin China

HS Code 8205100000

Production Capacity 100000 Piece/Month

Packaging & Delivery

Package Size 10.00cm * 10.00cm * 10.00cm

Package Gross Weight 0.100kg

Product Description

China manufacturer 5D tungsten solid carbide drill bits for hardened steel

Type	Flute Diameter	Thread Dimension Metric	Shank Diameter	Total Length	Flute Length	Limit Depth	Shank Length
D2105-D0300	3.00		6.00	66	28	23	36
D2105-D0325	3.25		6.00	66	28	23	36
D2105-D0330	3.30	M4	6.00	66	28	23	36
D2105-D0340	3.40		6.00	66	28	23	36
D2105-D0350	3.50		6.00	62	20	14	36
D2105-D0370	3.70		6.00	66	28	23	36
D2105-D0400	4.00		6.00	74	36	29	36
D2105-D0420	4.20	M5	6.00	74	36	29	36
D2105-D0430	4.30		6.00	74	36	29	36
D2105-D0450	4.50		6.00	74	36	29	36
D2105-D0465	4.65		6.00	74	36	29	36
D2105-D0480	4.80		6.00	82	44	35	36
D2105-D0500	5.00	M6	6.00	82	44	35	36
D2105-D0510	5.10		6.00	82	44	35	36
D2105-D0520	5.20		6.00	82	44	35	36
D2105-D0550	5.50		6.00	82	44	35	36
D2105-D0555	5.55		6.00	82	44	35	36
D2105-D0580	5.80		6.00	82	44	35	36
D2105-D0600	6.00		6.00	82	44	35	36
D2105-D0610	6.10		8.00	91	53	43	36
D2105-D0620	6.20		8.00	91	53	43	36
D2105-D0630	6.30		8.00	91	53	43	36
D2105-D0650	6.50		8.00	91	53	43	36
D2105-D0660	6.60		8.00	91	53	43	36
D2105-D0680	6.80	M8	8.00	91	53	43	36
D2105-D0690	6.90		8.00	91	53	43	36
D2105-D0700	7.00	M8X1	8.00	91	53	43	36
D2105-D0710	7.10		8.00	91	53	43	36
D2105-D0740	7.40		8.00	91	53	43	36
D2105-D0750	7.50		8.00	91	53	43	36
D2105-D0780	7.80		8.00	91	53	43	36
D2105-D0800	8.00		8.00	91	53	43	36
D2105-D0810	8.10		10.00	103	61	49	40
D2105-D0840	8.40		10.00	103	61	49	40
D2105-D0850	8.50	M10	10.00	103	61	49	40
D2105-D0860	8.60		10.00	103	61	49	40
D2105-D0870	8.70		10.00	103	61	49	40
D2105-D0880	8.80		10.00	103	61	49	40
D2105-D0900	9.00	M10X1	10.00	103	61	49	40
D2105-D0930	9.30		10.00	103	61	49	40
D2105-D0950	9.50		10.00	103	61	49	40
D2105-D0960	9.60		10.00	103	61	49	40
D2105-D0980	9.80		10.00	103	61	49	40
D2105-D1000	10.00		10.00	103	61	49	40
D2105-D1025	10.25	M12	12.00	118	71	56	45
D2105-D1040	10.40		12.00	118	71	56	45
D2105-D1050	10.50	M12X1.5	12.00	118	71	56	45
D2105-D1060	10.60		12.00	118	71	56	45
D2105-D1080	10.80		12.00	118	71	56	45
D2105-D1100	11.00		12.00	118	71	56	45
D2105-D1120	11.20		12.00	118	71	56	45
D2105-D1150	11.50		12.00	118	71	56	45
D2105-D1180	11.80		12.00	118	71	56	45
D2105-D1200	12.00	M14	12.00	118	71	56	45
D2105-D1220	12.20		14.00	124	77	60	45
D2105-D1225	12.25		14.00	124	77	60	45
D2105-D1250	12.50	M14X1.5	14.00	124	77	60	45
D2105-D1270	12.70		14.00	124	77	60	45
D2105-D1275	12.75		14.00	124	77	60	45
D2105-D1280	12.80		14.00	124	77	60	45
D2105-D1300	13.00		14.00	124	77	60	45
D2105-D1310	13.10		14.00	124	77	60	45
D2105-D1350	13.50		14.00	124	77	60	45
D2105-D1380	13.80		14.00	124	77	60	45
D2105-D1400	14.00	M16	14.00	124	77	60	45
D2105-D1425	14.25		16.00	133	83	63	48
D2105-D1450	14.50	M16X1.5	16.00	133	83	63	48
D2105-D1475	14.75		16.00	133	83	63	48
D2105-D1480	14.80		16.00	133	83	63	48
D2105-D1500	15.00		16.00	133	83	63	48
D2105-D1510	15.10		16.00	133	83	63	48
D2105-D1550	15.50		16.00	133	83	63	48
D2105-D1580	15.80		16.00	133	83	63	48
D2105-D1600	16.00		16.00	133	83	63	48
D2105-D1650	16.50		18.00	143	93	71	48
D2105-D1675	16.75		18.00	143	93	71	48
D2105-D1680	16.80		18.00	143	93	71	48
D2105-D1700	17.00		18.00	143	93	71	48
D2105-D1750	17.50		18.00	143	93	71	48
D2105-D1780	17.80		18.00	143	93	71	48
D2105-D1800	18.00		18.00	143	93	71	48
D2105-D1850	18.50		20.00	153	101	77	50
D2105-D1880	18.80		20.00	153	101	77	50
D2105-D1900	19.00		20.00	153	101	77	50
D2105-D1950	19.50		20.00	153	101	77	50
D2105-D1980	19.80		20.00	153	101	77	50
D2105-D2000	20.00		20.00	153	101	77	50

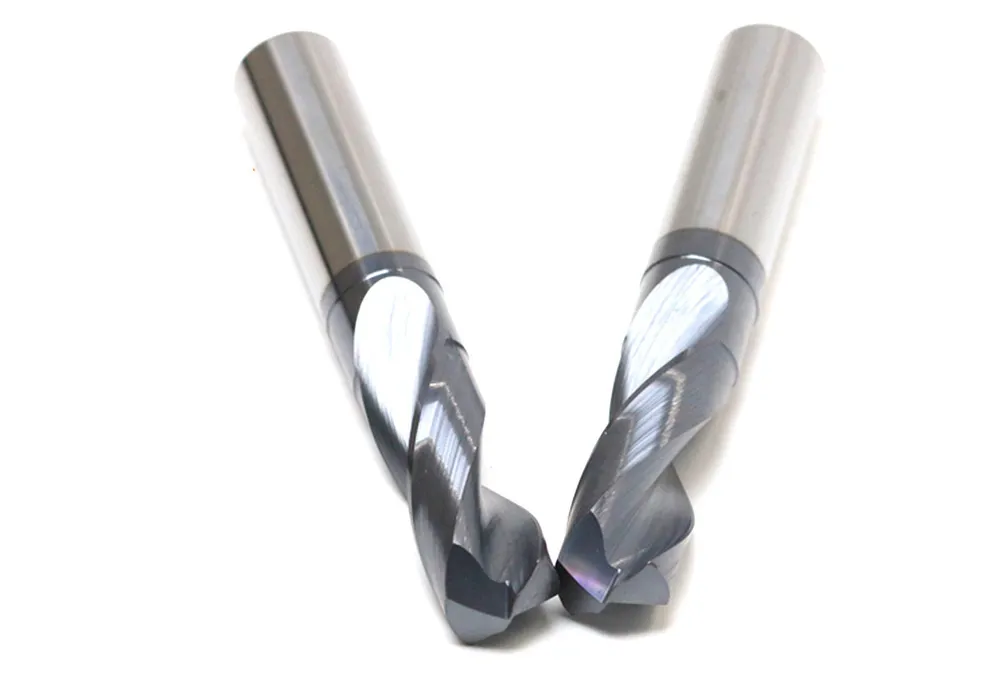

5D Tungsten Solid Carbide Drill Bits for Hardened Steel Description 1

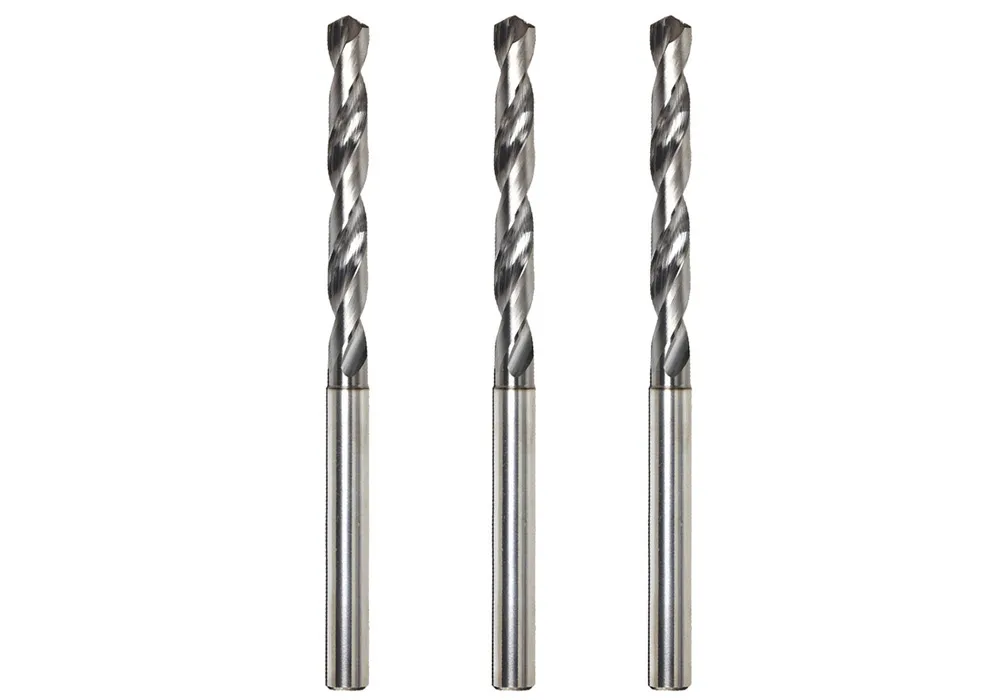

5D Tungsten Solid Carbide Drill Bits for Hardened Steel Description 2

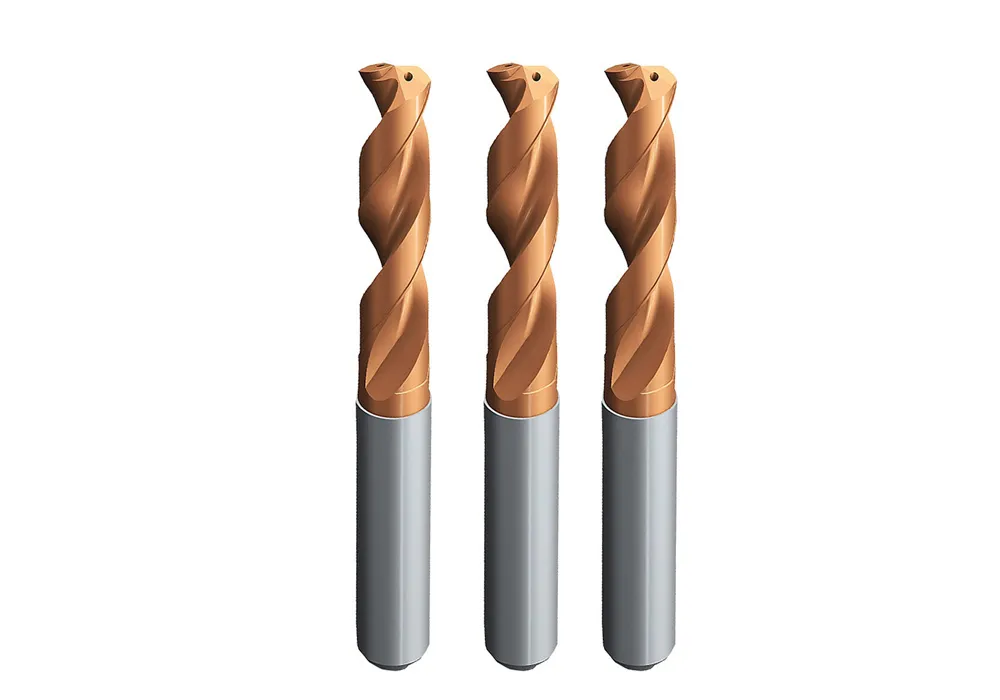

5D Tungsten Solid Carbide Drill Bits for Hardened Steel Description 3

5D Tungsten Solid Carbide Drill Bits for Hardened Steel Description 4

5D Tungsten Solid Carbide Drill Bits for Hardened Steel Description 5

Frequently Asked Questions (FAQ)

❓ What materials can these 5D carbide drill bits machine?

These tungsten solid carbide drill bits are optimized for hardened steel, alloy steel, and various demanding metal drilling operations.

❓ What is the advantage of using tungsten carbide over HSS?

Tungsten carbide offers much higher hardness, excellent thermal stability, and wear resistance, enabling higher drilling speeds and significantly longer tool life.

❓ How does the 2-flute design benefit drilling?

The 2-flute structure provides large chip space, ensuring fast and smooth chip evacuation, preventing tool blockage when drilling deep holes.

❓ What does the "5D" specification indicate?

"5D" means the maximum drilling depth of the bit is roughly 5 times the diameter of the drill flute, suited for deeper hole operations.

❓ What is the typical lead time for custom designs?

For ODM orders requiring specific drawings or custom specifications, the lead time is generally between 7 to 10 working days.
