Our stocked standard product portfolio offers top quality products in a wide range of the most common applications at very attractive prices. Each item has an inventory code that simplifies the ordering process and products are shipped directly from our warehouses to any global destination within one week.

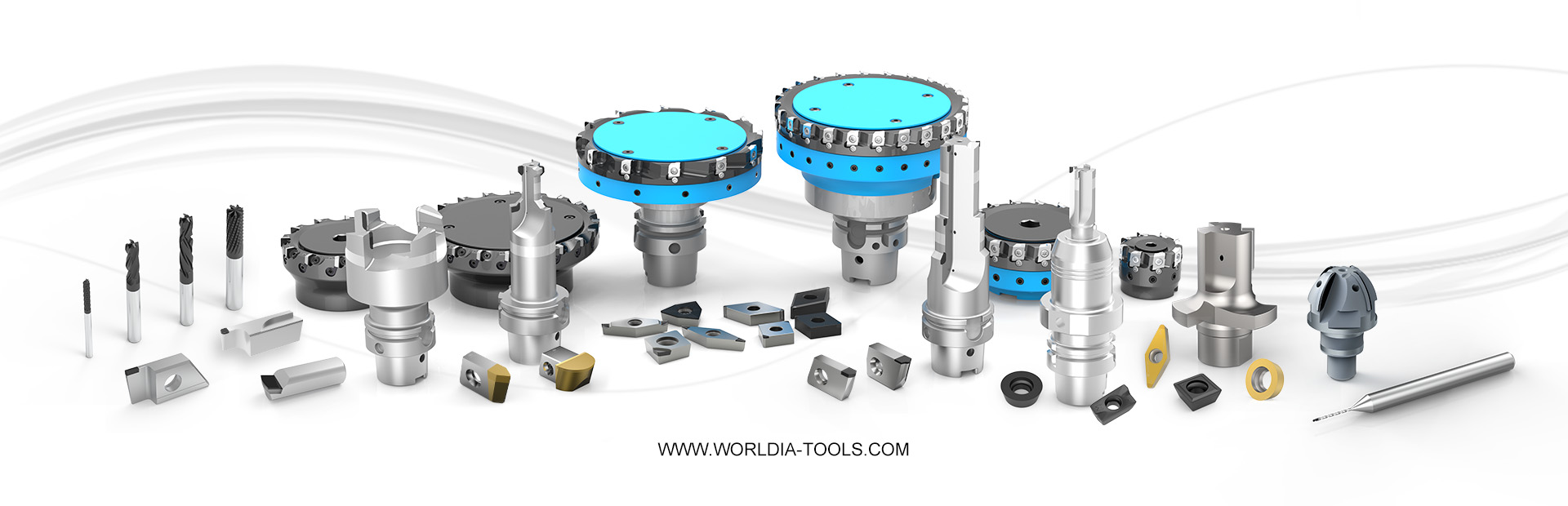

Our product range currently includes PCD and PCBN ISO inserts as well as PCD and PCBN indexable end mills with corresponding inserts.

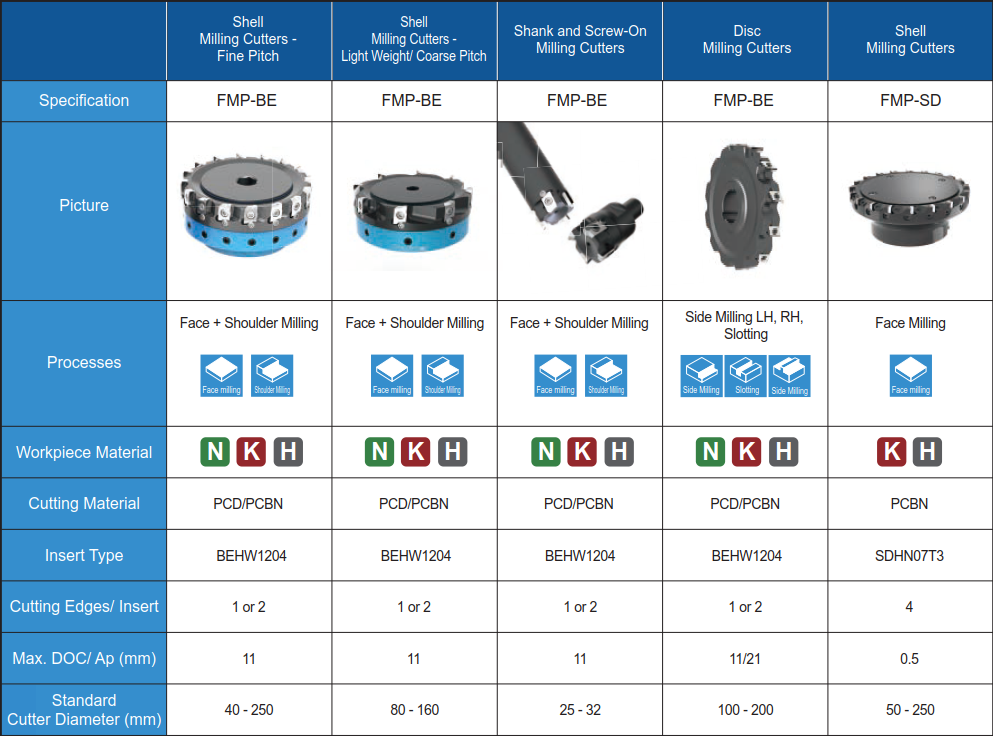

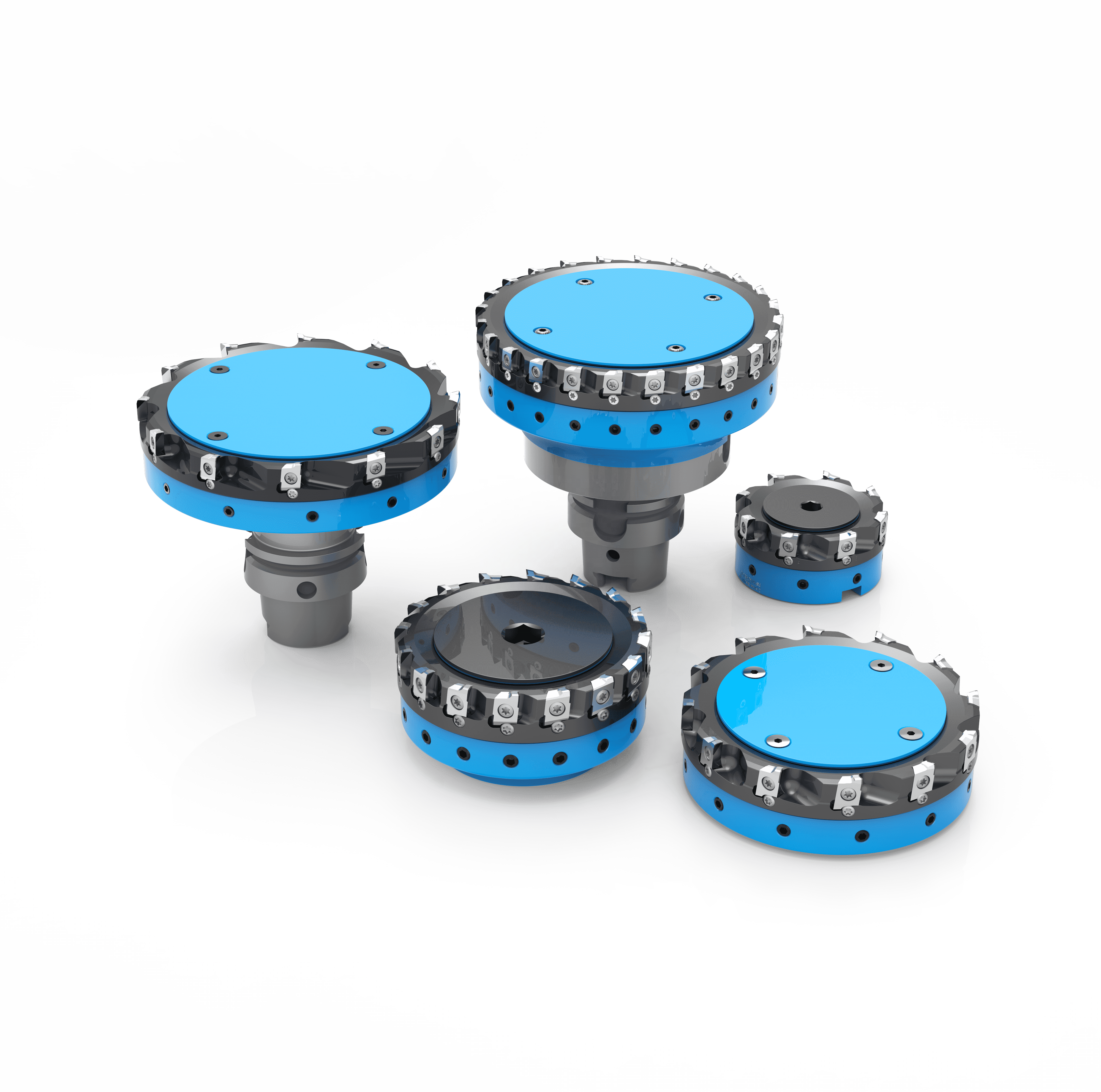

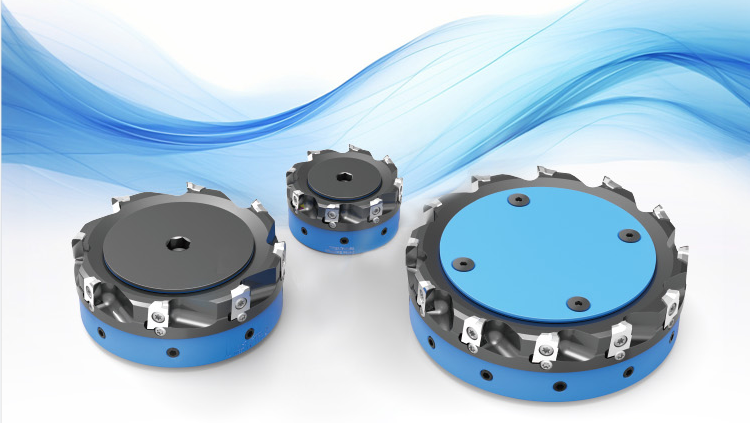

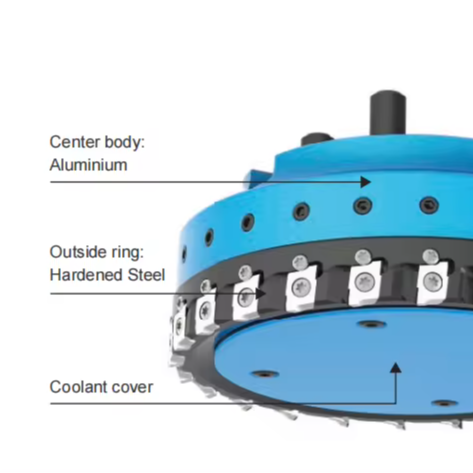

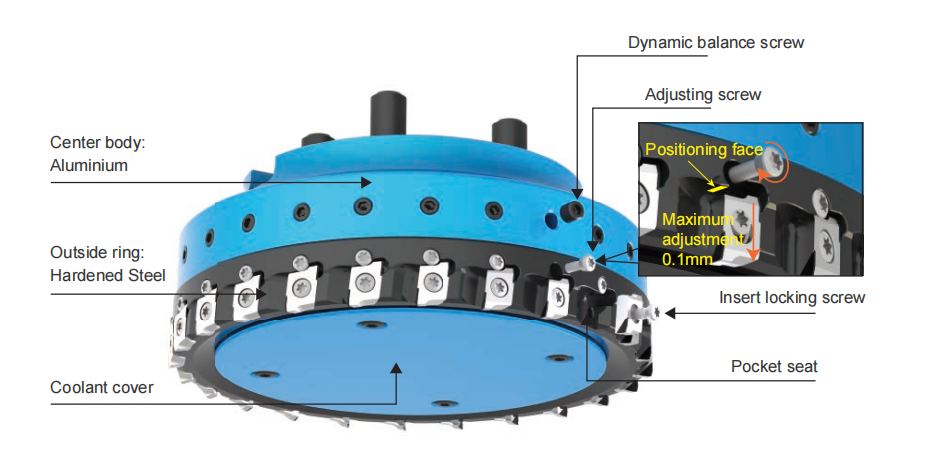

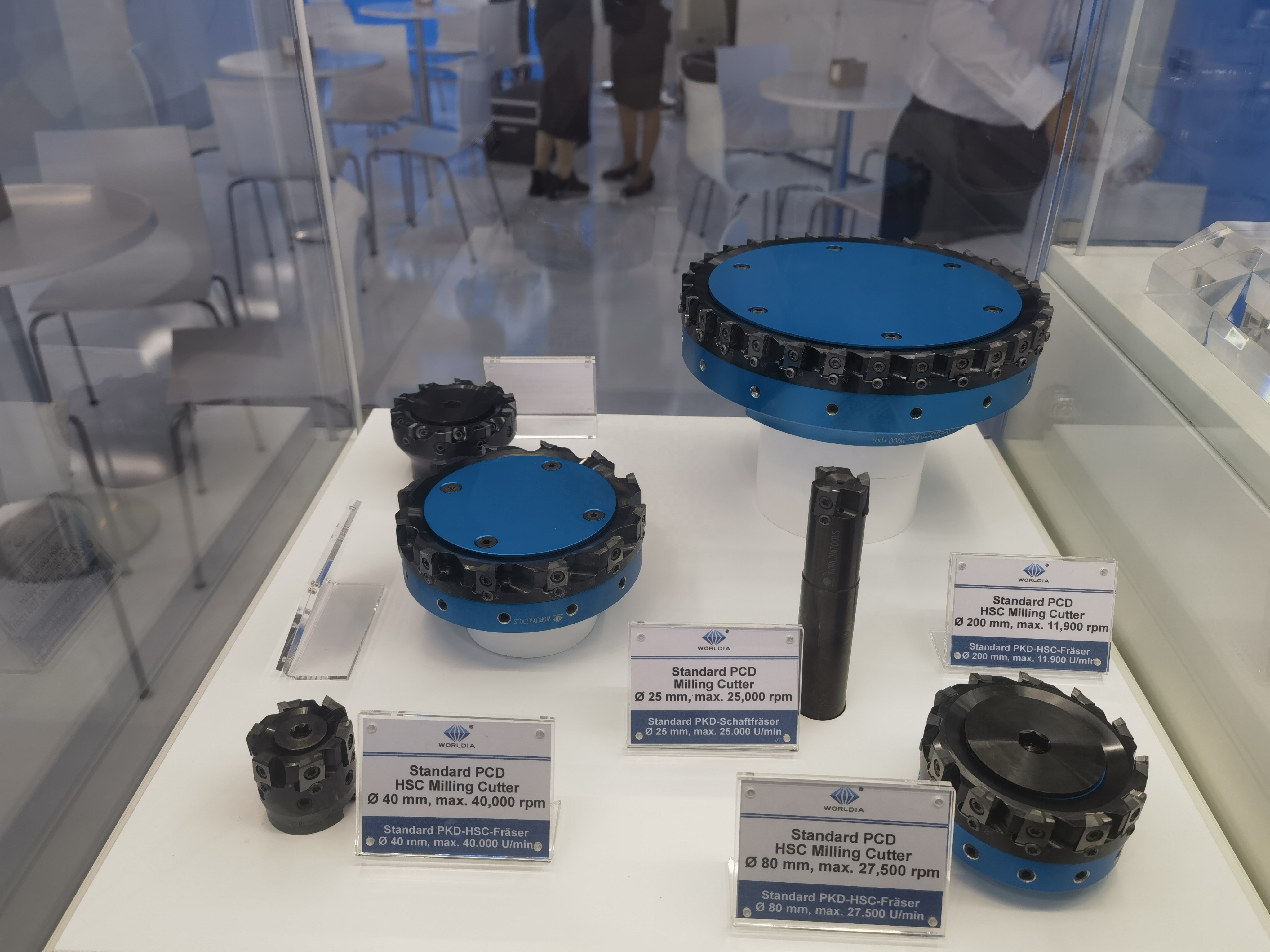

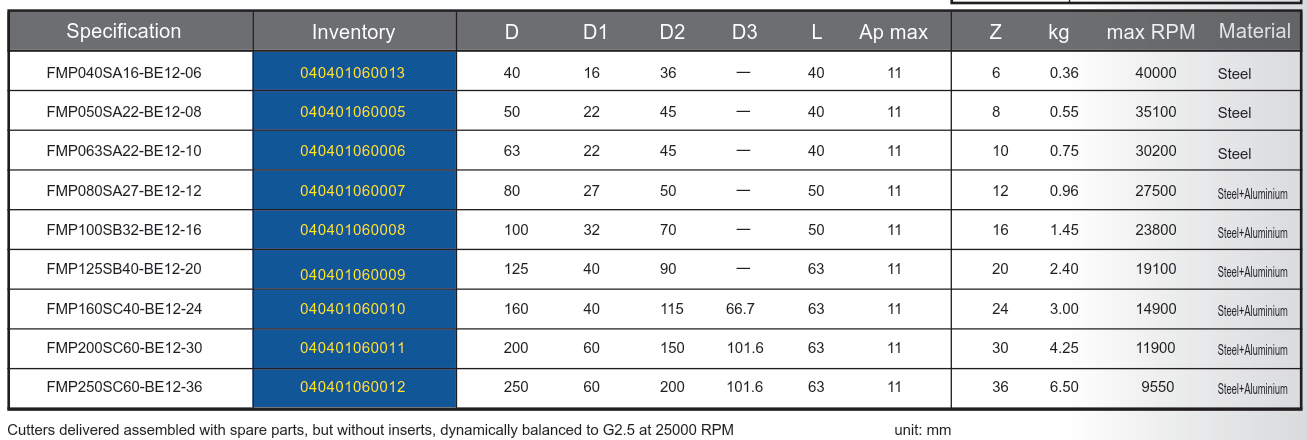

FMP-BE milling cutters are designed for high speed machining of light metals on small machining centres with precision spindles. Thanks to the innovative bi-metal aluminium/steel body design, the requirements for low weight, low inertia and precise balancing allow high spindle acceleration. High strength and wear resistance are also achieved. Cutters from 80 to 160 mm diameter can be mounted on the same adaptor, while the weight of a 160 mm diameter cutter with BT30 adaptor, for example, does not exceed 3 kg.

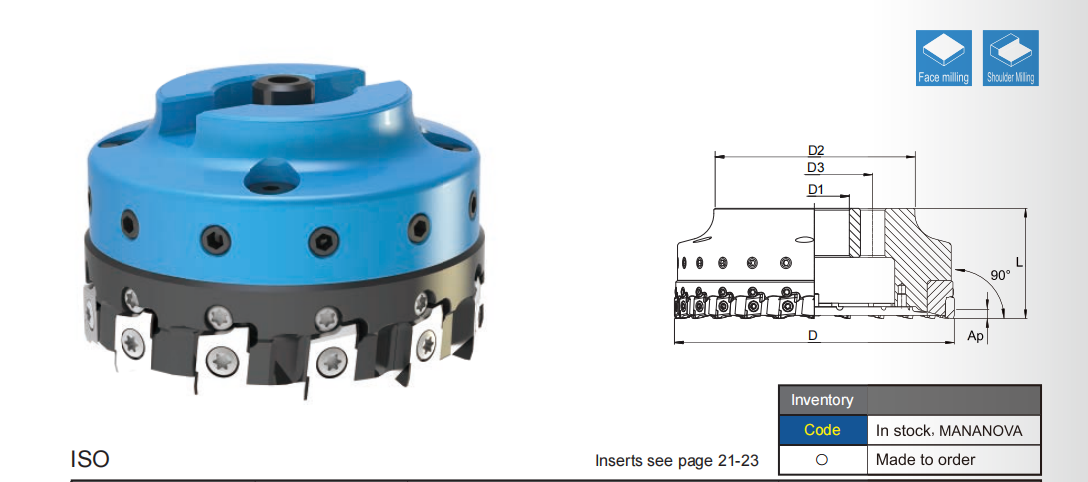

All FMP-BE cutters have a standard insert pocket which allows the use of various combinations of BEHW1204PCD and PCBN tipped inserts, adjustable or non-adjustable, for a wide range of roughing and applications including hatch milling.
If requested, we assemble the cutters with inserts and adjust them before delivery
If requested, we assemble the cutters with inserts and adjust them before delivery
We offer retipping to the same insert size underlapping at attractive conditions
Diamond scribing wheels, PCD/ PCBN inserts, PCD/ PCBN customized tools and industrial solutions, such as PCBN milling tools for ball screws and CV joint PCBN milling cutters, PCBN grooving and threading tools, PCD/ PCBN indexable milling cutters, PCD micro drills, Monocrystalline and CVD-diamond tools, Composite materials cutting tools for Aerospace, Solid carbide and ceramic tools, Coated carbide inserts and rods, Cultivated diamonds and functional diamond materials.
