DOHRE Wholesalers Multi-Cut Carbide End Mill 4 Flute Variable Flute Multi Function Square End Mills For Wood
DOHRE Wholesalers Multi-Cut Carbide End Mill 4 Flute Variable Flute Multi Function Square End Mills For Wood
DOHRE Wholesalers Multi-Cut Carbide End Mill 4 Flute Variable Flute Multi Function Square End Mills For Wood
DOHRE Wholesalers Multi-Cut Carbide End Mill 4 Flute Variable Flute Multi Function Square End Mills For Wood
DOHRE Wholesalers Multi-Cut Carbide End Mill 4 Flute Variable Flute Multi Function Square End Mills For Wood
1 / 5
DOHRE Wholesalers Multi-Cut Carbide End Mill 4 Flute Variable Flute Multi Function Square End Mills For Wood
DOHRE Wholesalers Multi-Cut Carbide End Mill 4 Flute Variable Flute Multi Function Square End Mills For Wood
DOHRE Wholesalers Multi-Cut Carbide End Mill 4 Flute Variable Flute Multi Function Square End Mills For Wood
DOHRE Wholesalers Multi-Cut Carbide End Mill 4 Flute Variable Flute Multi Function Square End Mills For Wood
DOHRE Wholesalers Multi-Cut Carbide End Mill 4 Flute Variable Flute Multi Function Square End Mills For Wood

DOHRE Wholesalers Multi-Cut Carbide End Mill 4 Flute Variable Flute Multi Function Square End Mills For Wood

Send Inquiry

Product Description

Carbide End Mill Banner
Product Description
Product Name Carbide end mill unequal pitch (88º/92º)
Coating InoxaCon
Hardness HRC60
Raw Material GU25
Application Precision mirror mold, HRC50°-60° material, fine milling processing
Agent Opportunities Welcome to inquire about agent partnerships
Stock Status Huge stock available for immediate dispatch
Detailed Features

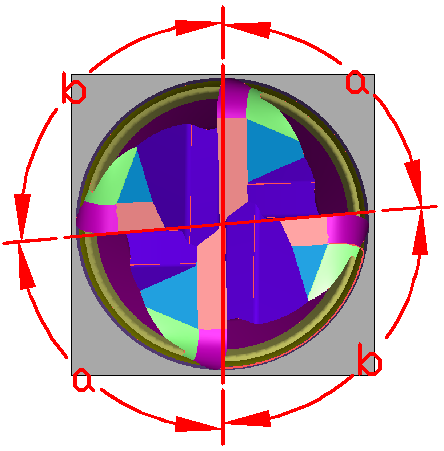

1. a≠b Unequally Partitioned & θ1≠θ2 Variable-Lead: Prevents vibration and reduces cutting force at slotting. This leads to high speed and high feed machining performance.
Unequally Partitioned Design
a≠b Unequally Partitioned
Effectively prevents chatter vibrations during professional milling operations.

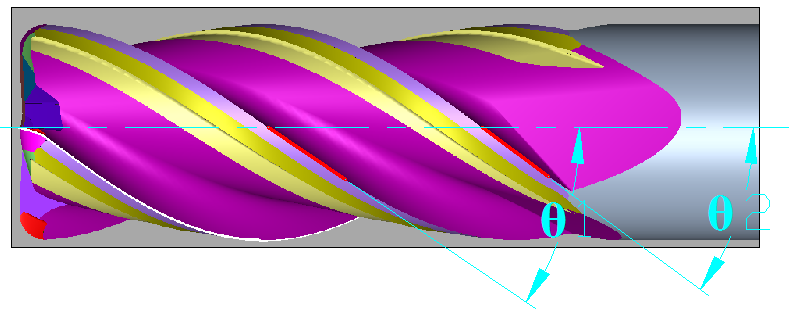

Variable Lead Design
Q1≠Q2 Design
Variable lead of the peripheral cutting edge provides highly efficient milling capabilities while suppressing system vibration.

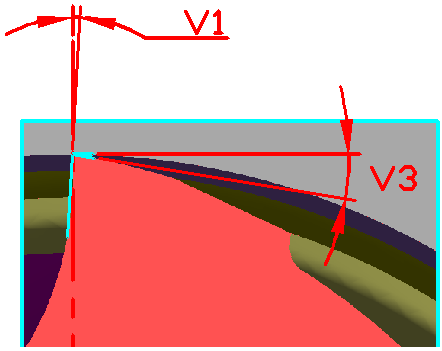

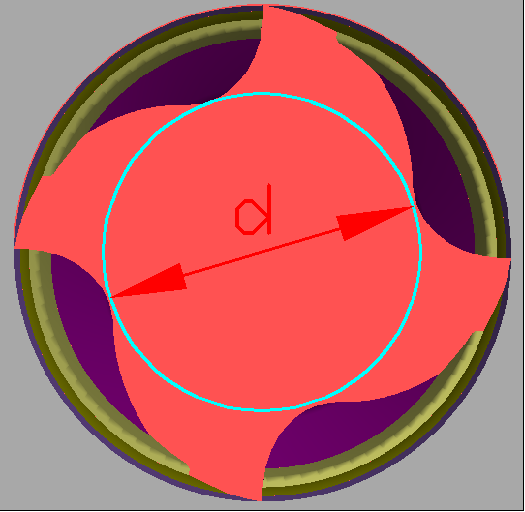

2. Core Diameter 65%, Negative Rake & Arc Rear Angle: Specially optimized for processing HRC35°~60° quenched steel. Ensures high rigidity and excellent wear resistance of the cutter.
Core Diameter Detail 1
Core Diameter Detail 2
3. Arc Rake Face: Ensures a smooth transition from the flat face chip groove to the spiral groove, enhancing wear resistance during processing and preventing blade breakage.
Arc Rake Face Detail 1
Arc Rake Face Detail 2

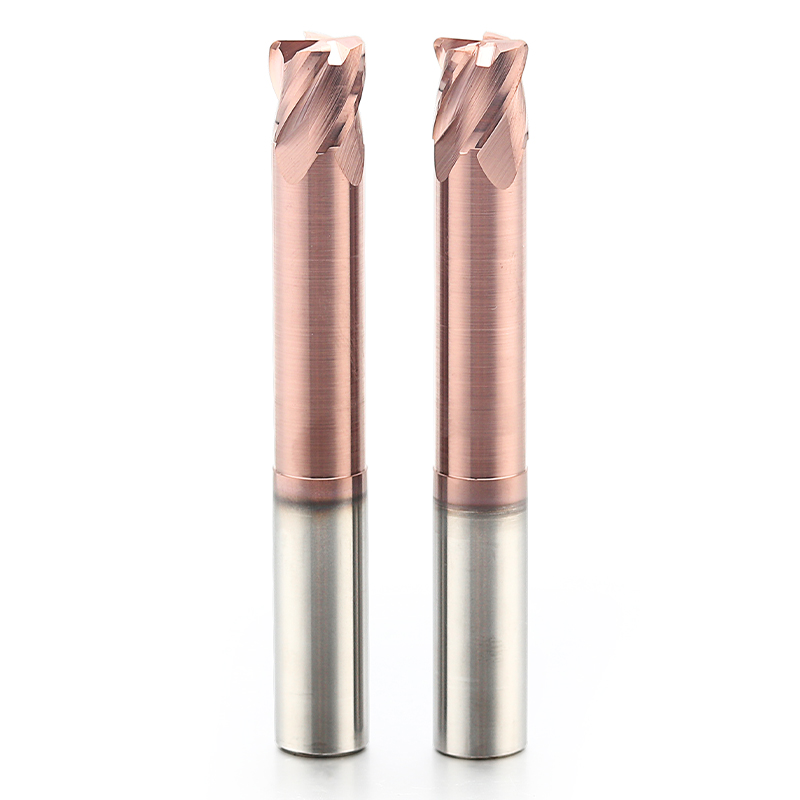

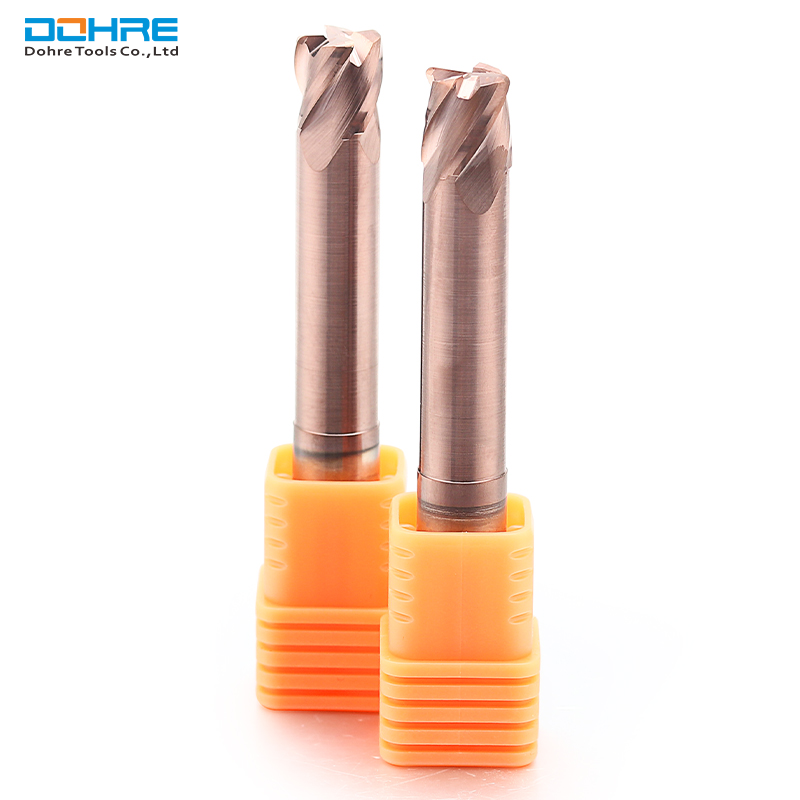

Product Display Front View
Product Display Side View
Coating Technology Comparison
Coating Type AlTiN TISIN Nano Diamond
Hardness (HV) 3300 4300 42 (GPA) 10000
Thickness (UM) 2.5-3+/-1 3+/-1 3+/-1 3+/-1
Oxidation Temp. (°C) 900 800 1200 700
Color Black Bronze Blue Dark black
Application Suitable for high speed dry cutting Suitable for cutting mould steel Suitable for high hardness mould steel Carbon Fibre processing
Production Capacity & Quality Standards
Our advanced production facility was established in 2002 with a registered capital of RMB 8.5 million. The factory covers a massive area of 4000 square meters, specializing in manufacturing high-precision carbide cutting tools such as end mills, drill bits, machine taps, carbide inserts, and other customized cutters. We hold 33 invention and utility patents. The production and testing line is equipped with German and Swiss grinding machines, high-end tool measuring instruments, and universal microscopes (totaling 65 sets). Supported by a dedicated workforce of 180 team members, including 36 development technicians, 12 quality inspection specialists, and 8 technical support personnel.
Key Advantages:
  • 20+ Years specializing in CNC tool cutters
  • 600W+ Annual production capacity
  • 20W+ SKU milling cutters in stock
  • 100% Product quality protection
  • 100% On-time delivery
  • 100% Virgin material utilized
  • 30+ R&D patents developed annually

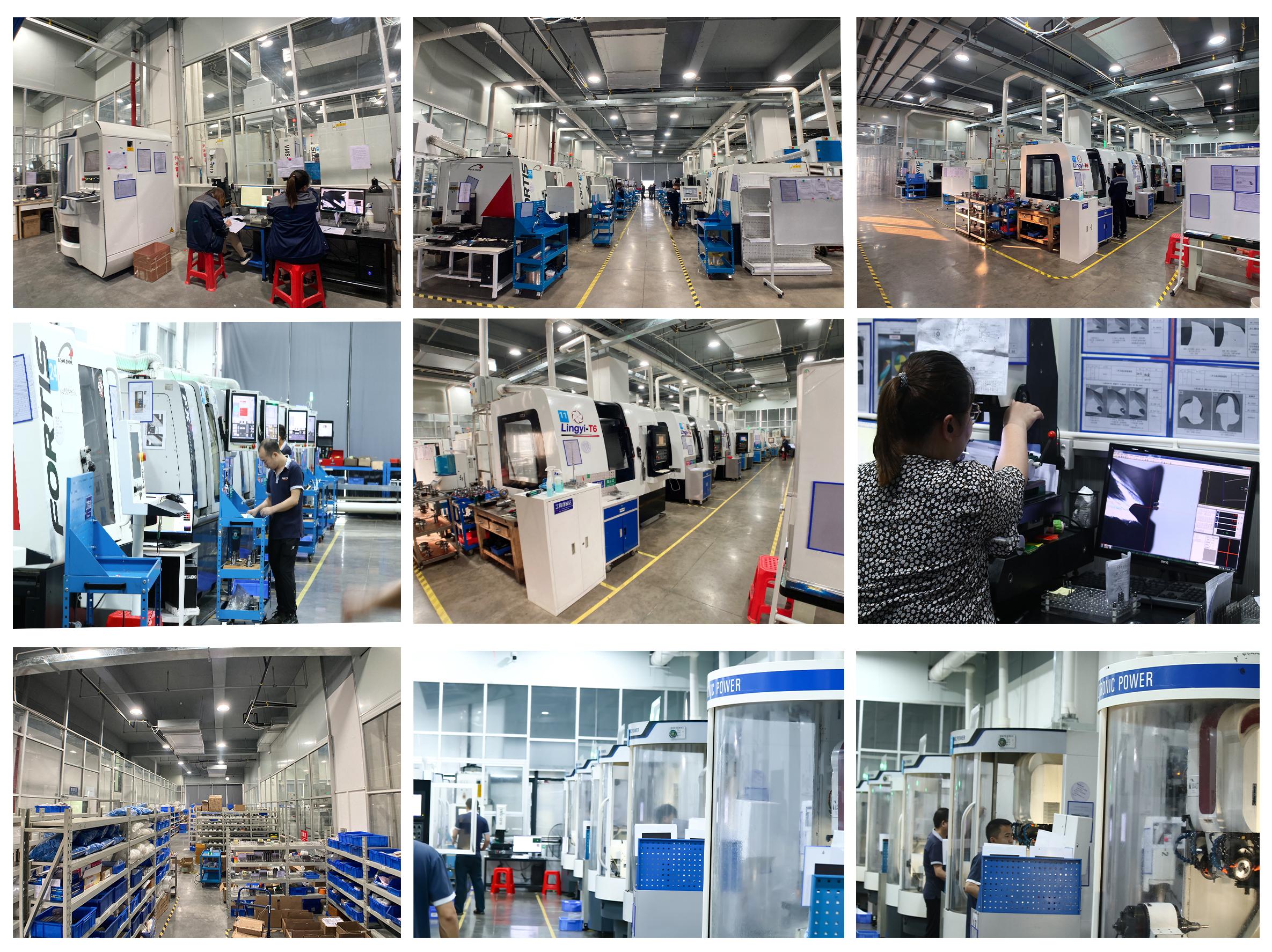

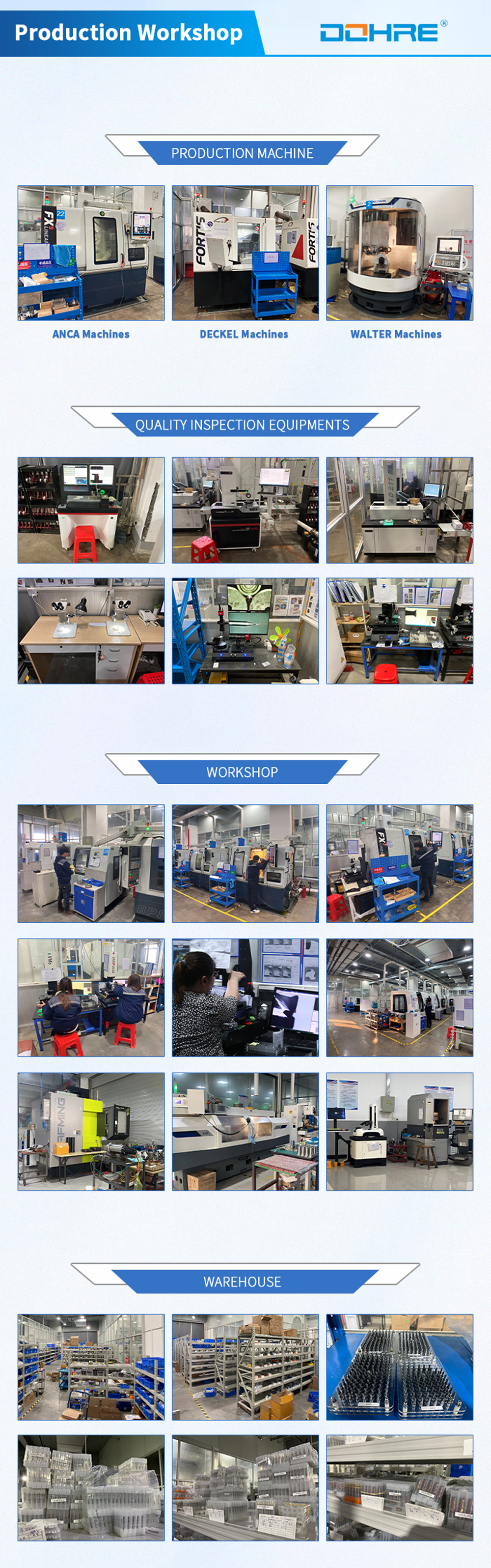

Production Facility Showcase
Product Categories Overview
Precision Testing & Quality Assurance
Patents and Industry Exhibitions
Frequently Asked Questions (FAQ)
1. Are you a manufacturer? Do you have your own factory?
Yes, we are a professional manufacturer with more than 10 years of dedicated experience in the carbide tooling field.
2. Is free shipping available for orders?
We do not offer free shipping services. However, discounts are available for large-quantity orders. We collaborate closely with shipping and express companies to guarantee you the most cost-effective rates.
3. Can you ship the tools to our designated agent or forwarder in China?
Yes, if you have an active logistics forwarder located in China, we are pleased to handle the direct delivery to their warehouse.
4. Can you manufacture custom or special carbide tools?
Yes, we can. Our factory specializes in designing and producing customized cutting tools according to your engineering drawings or physical samples.
5. What raw materials are used for these end mills?
We use premium GU25 raw materials, which guarantee high rigidity and extreme wear resistance for machining operations.
6. What is the benefit of the unequal pitch variable lead design?
The configuration features variable-lead flutes that prevent chatter vibrations and decrease cutting forces during slotting, enabling high feed and speed milling.
