Product Description

Home > All Products > Carbide End Mill > Aluminum End Mill
HRC45 HRC55 45 degree milling cutter 2 3 flute carbide end mills for aluminum d18
Carbide end mills for aluminum
Product Parameters
Product Name 2 3 flute carbide end mills for aluminum d18
Material Tungsten carbide
Flute 2/3 Flutes
Helix Angle 45 Degrees
Shank Diameter 3-20mm
Total Length 50-150mm
Tolerance -0.01~0
Coating DLC or uncoated
HRC HRC55
Applicable Machine CNC machining center, engraving machine, high speed machine
Workpiece Material Copper, aluminum, acrylic, etc
All the specs can be customized. For more information, please contact us at any time.
Key Cutting Products
Turning & Milling Tools
  • Carbide Insert
  • Solid Carbide End Mills
  • CNC Turning Tool
  • Face Milling Tool
Holding & Grinding Tools
  • Drills Bits
  • Tool Holder
  • CNC Chuck & Adapter
  • Taps and Dies
  • Grinding Tools
Technical Features
1. Super Raw Material
All cutting materials are from international famous brands, high hardness, long tool life.
HRC Grade Helix Angle Co Content (%) Grain Size (UM) Bending Strength (N/mm²) Application
HRC45 YG10X 35° 10% 0.8 3800 General steel, cast iron.
HRC55 ZK30UF 35° 10% 0.6 3800 Carbon steel, alloy steel, cast iron.
HRC60 GU25UF 35°/45° 12% 0.4-0.5 4200 Carbon steel, alloy steel, stainless steel, cast iron.
HRC65 GU25UF 45° 12% 0.4 4300 Carbon steel, alloy steel, stainless steel, cast iron.
2. Super Coating
Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.
Coating Hardness (HV) Thickness (UM) Friction Coefficient Oxidation Temp. (°C) Color
AlTiN 3500 2.5-3 0.3 850°C Black
TiAlN 2800 2.5-3 0.3 900°C Violet
TiSiN 3600 3 0.45 1100°C Copper
AlTiSiN 4000 4 0.4 1200°C Blue
TiN 2500 2.5-3 0.5 600°C Gold
Products Description

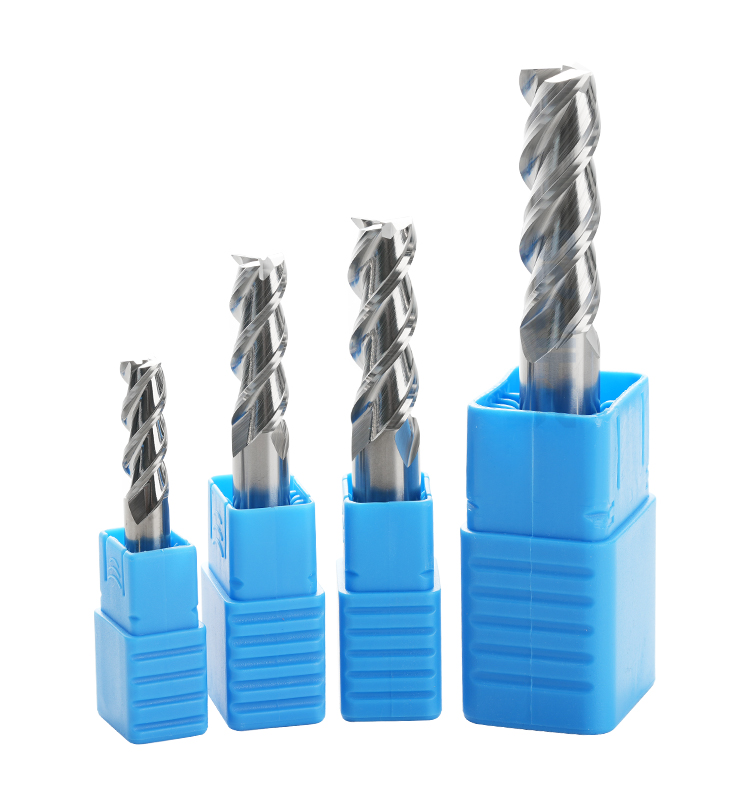

Product Description Image 1

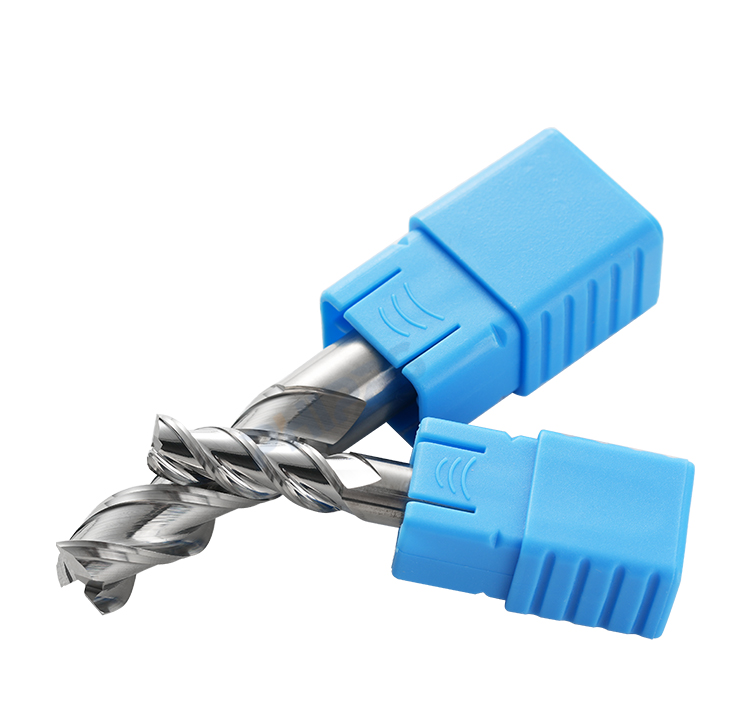

Product Description Image 2

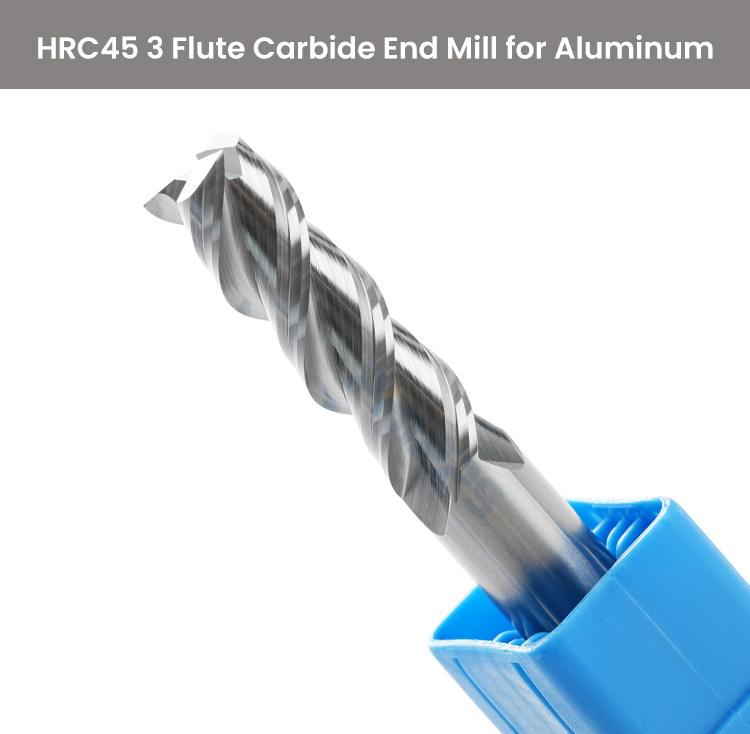

Product Description Image 3

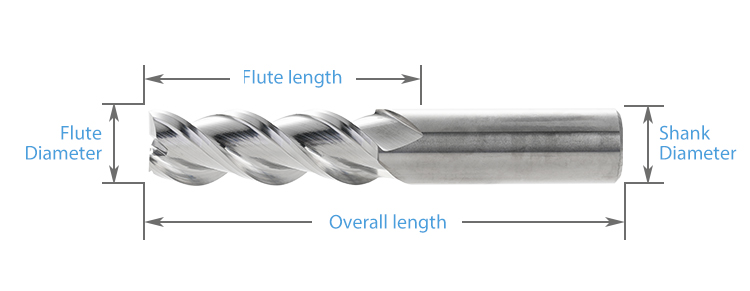

Product Description Image 4
Specification Diameter Cutting Length Shank Overall length Flutes
3*9*3*50393502 / 3
3*12*3*753123752 / 3
3*15*3*10031531002 / 3
1*3*4*50134502 / 3
1.5*5*4*501.554502 / 3
2*6*4*50264502 / 3
2.5*8*4*502.584502 / 3
3*9*4*50394502 / 3
3.5*12*4*503.5124502 / 3
4*12*4*504124502 / 3
4*20*4*754204752 / 3
4*25*4*10042541002 / 3
5*15*5*505155502 / 3
5*20*5*755205752 / 3
5*25*5*10052551002 / 3
1*3*6*50136502 / 3
1.5*5*6*501.556502 / 3
2*6*6*50266502 / 3
2.5*8*6*502.586502 / 3
3*9*6*50396502 / 3
3.5*12*6*503.5126502 / 3
4*12*6*504126502 / 3
4.5*14*6*504.5146502 / 3
5*15*6*505156502 / 3
5.5*18*6*505.5186502 / 3
6*18*6*506186502 / 3
6*30*6*756306752 / 3
6*30*6*10063061002 / 3
6*40*6*15064061502 / 3
7*21*8*607218602 / 3
8*24*8*608248602 / 3
8*35*8*758358752 / 3
8*40*8*10084081002 / 3
8*50*8*15085081502 / 3
9*27*10*7592710752 / 3
10*30*10*75103010752 / 3
10*40*10*1001040101002 / 3
10*50*10*1501050101502 / 3
11*33*12*75113312752 / 3
12*36*12*75123612752 / 3
12*45*12*1001245121002 / 3
12*60*12*1501260121502 / 3
14*35*14*80143514802 / 3
13*45*14*1001345141002 / 3
14*45*14*1001445141002 / 3
14*65*14*1501465141502 / 3
15*45*16*1001545161002 / 3
16*45*16*1001645161002 / 3
16*65*16*1501665161502 / 3
18*45*18*1001845181002 / 3
18*70*18*1501870181502 / 3
20*45*20*1002045201002 / 3
20*70*20*1502070201502 / 3
Remarks: The milling cutter model marked with color is a common model.
Product length unit: mm
Production Showcase
Production Showcase 1
Production Showcase 2
Production Showcase 3
Production Showcase 4
Package & Shipment
Packaging and shipping info
FAQ
Q1 Are you manufacturer? Do you have factory?
We are professional manufacturer, have more than 12 years experience in this field.
Q2 When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please notify us in your inquiry so that we will regard your inquiry priority.
Q3 Is free shipping possible?
We don't offer free shipping service, but we will give you some discount if you buy large quantity products. And we have cooperation Express Companies, can offer you the best price of shipping cost.
Q4 How long is your delivery time?
Generally it is 5-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q5 How can I pay?
We accept PayPal for sample orders. For larger amounts, payments can be made via Western Union or T/T.
Q6 What's your MOQ?
We welcome your sample order to test our quality, we believe that you will find that we are the right supplier you are looking for. So there is no MOQ.
