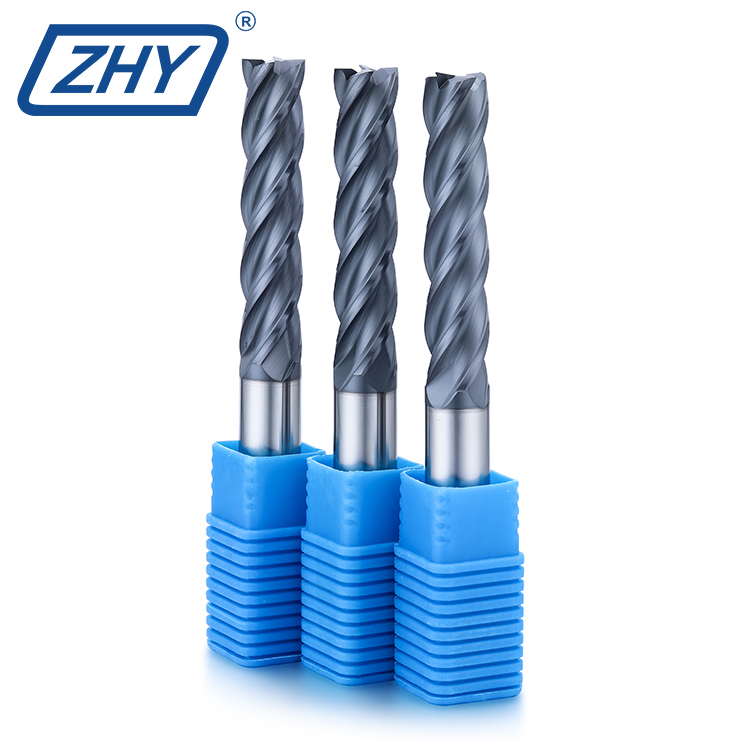

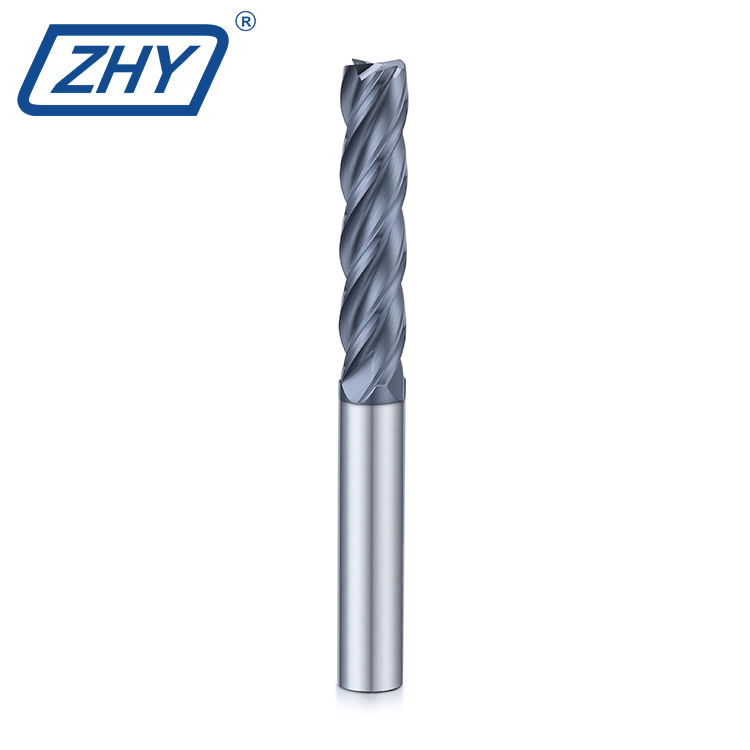

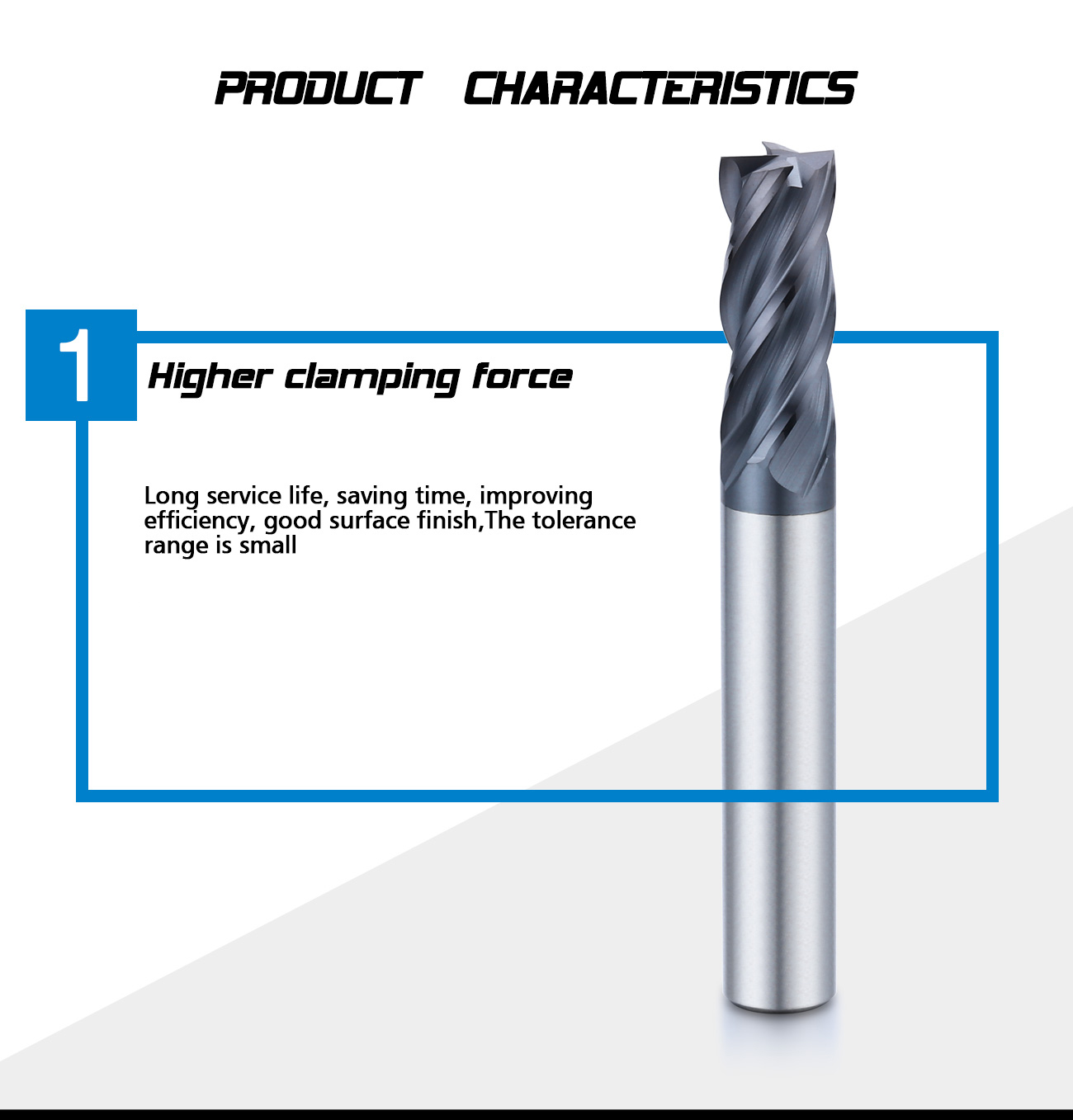

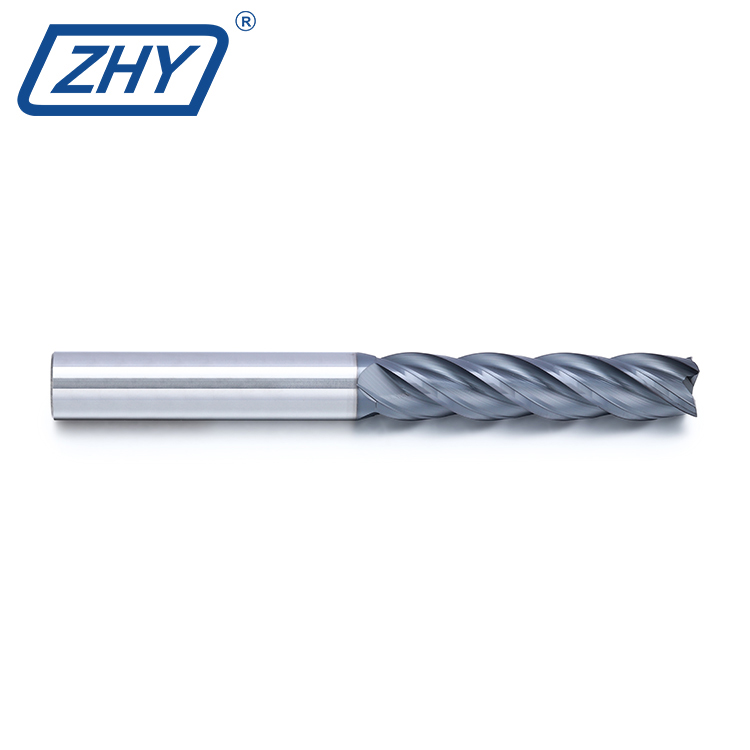

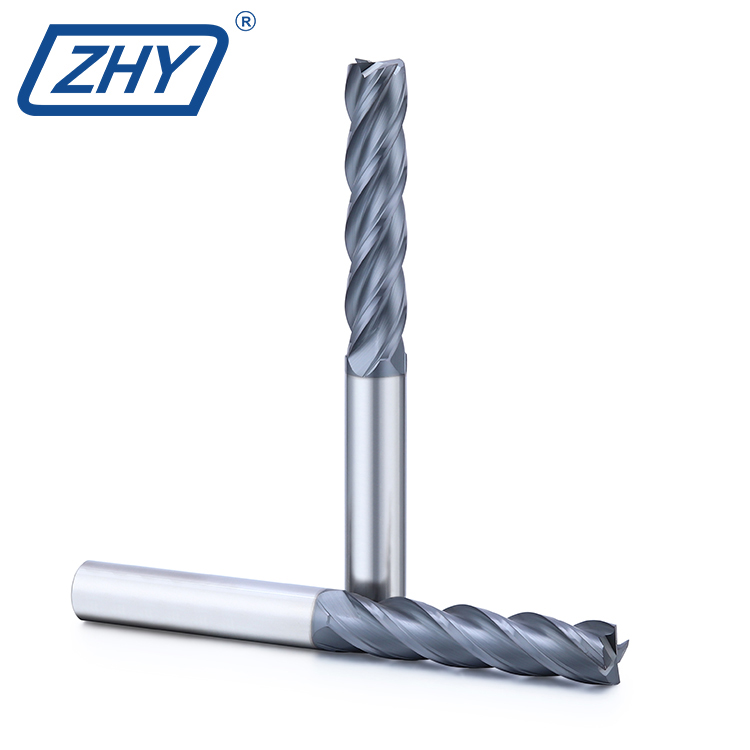

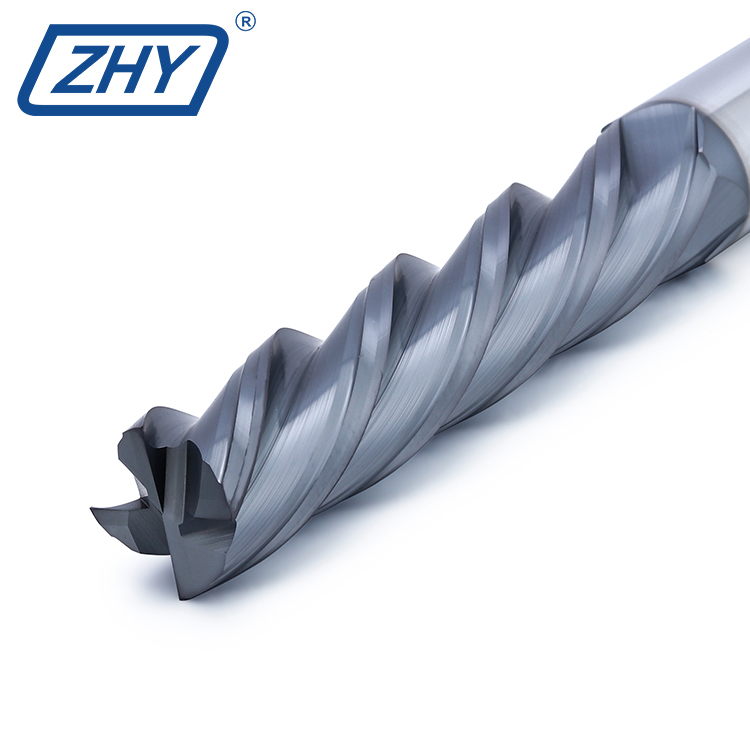

High Performance General Type Coated Flat Milling Cutter HRC55 Long Shank Square End Mill

1 / 5

High Performance General Type Coated Flat Milling Cutter HRC55 Long Shank Square End Mill

Send Inquiry

Product Description

Product Description

1. Product Parameters

Parameter	Details
Name	End mill
Hardness	HRC45/HRC55/HRC60/HRC65/HRC70
Type	Flat/Ball Nose/Corner Radius/Rough
Flutes	1/2/3/4/5/6 Flutes
Size	Our standard size or as request
Coating	Altin, Tialn, Tisin, Tin, DLC, Nano, Diamond
Public errand	0-0.5um
Suitable to process	Copper, cast iron, carbon steel, mould Steel, Stainless Steel, tool Steel, etc.
OEM	OEM/ODM highly welcome

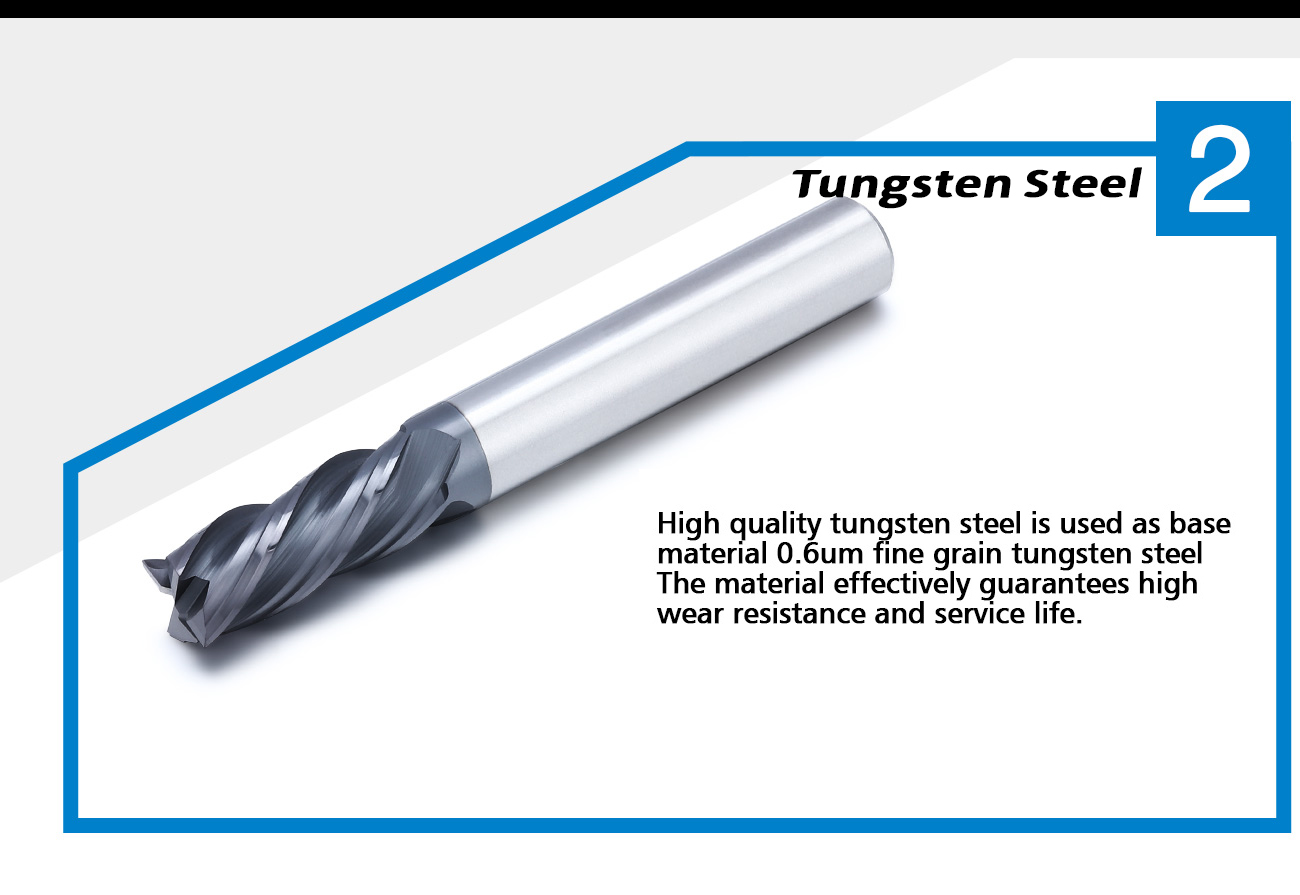

2. Super Raw Material

Item Grade	HRC45	HRC55	HRC60	HRC65
Details	Grain size 0.7um Co10% Flexural strength 3320N/mm2	Grain size 0.6um Co10% Flexural strength 4000N/mm2	Grain size 0.5um Co12% Flexural strength 4300N/mm2	Grain size 0.5um Co10% Flexural strength 4300N/mm2

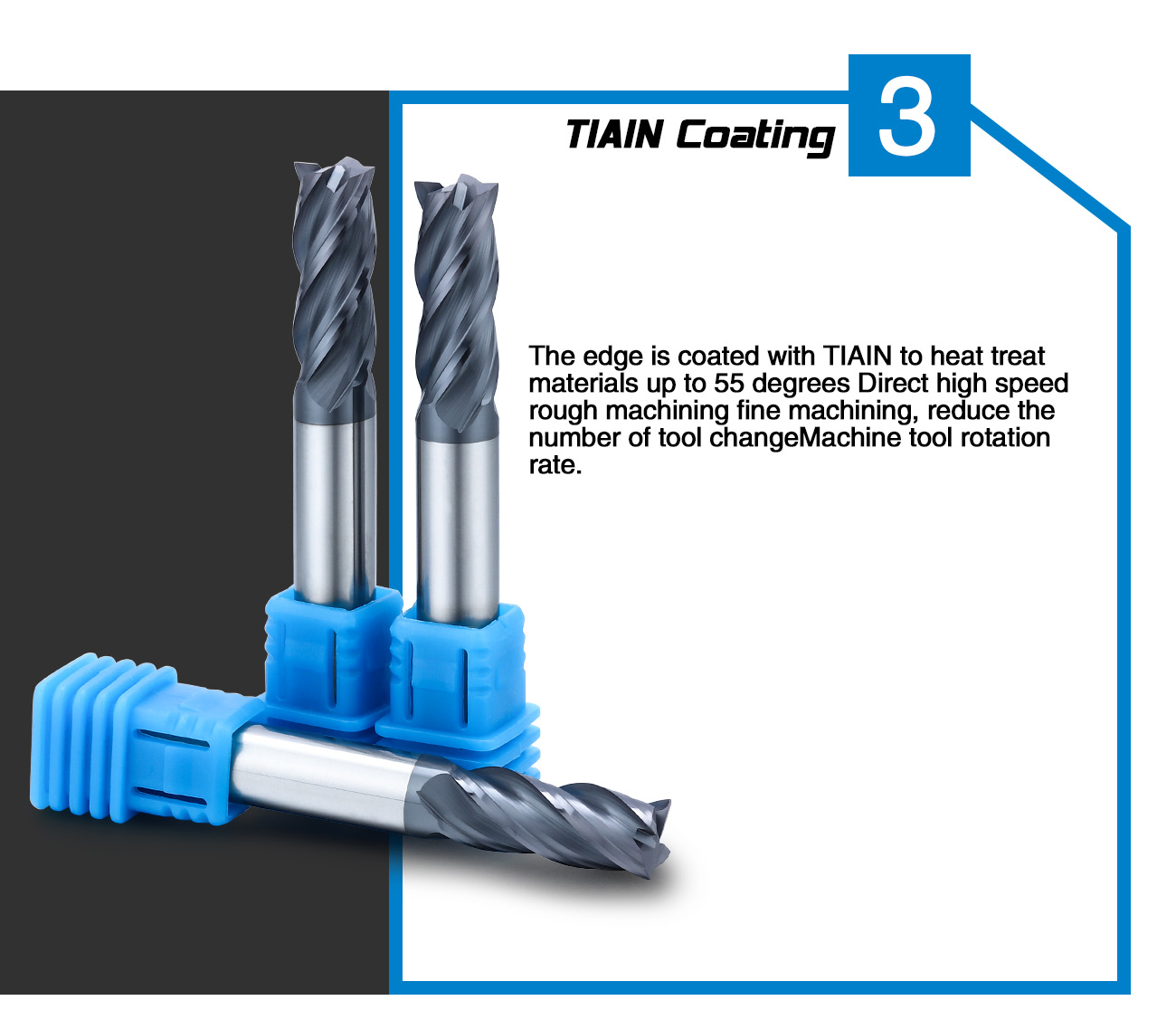

3. Super Coating

Details	TiN	TiAlN	AlTiN	TISIN	Nano Blue	DLC
Color	Golden	Purple	Black	antique brass	Dazzle blue	Dazzle black
HV	2300	3200	3400	3600	42(GPA)	1000~4000
Thickness/µm	0.4	0.5	0.5	0.4	0.4	0.5-2.0
Friction coefficient	0.4	0.35	0.4	0.45	0.4	0.05
MAX Temperature	500	800	900	1000	1200	400
Description	cost-effective	General	High speed High HRC	Processing copper, titanium, mold Steel	General High Speed Cutting	non-ferrous metals graphite and plastics

Size List

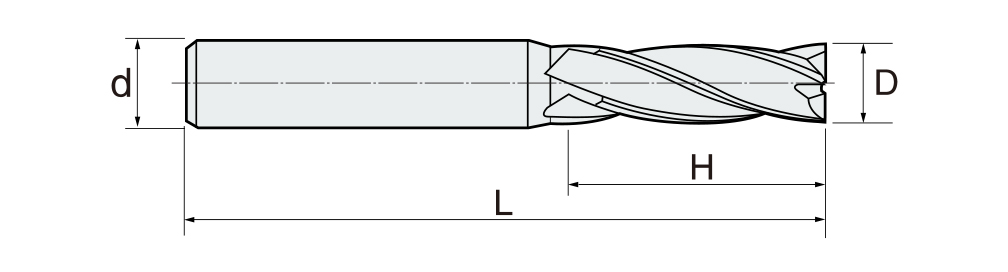

Blade Dia	Blade Length	Shank Dia(D)	Overall Length(L)
1.0	3	4	50
1.5	4	4	50
2.0	6	4	50
2.5	7	4	50
3.0	8	4	50
3.5	10	4	50
4.0	11	4	50
1.0	3	6	50
1.5	4	6	50
2.0	6	6	50
2.5	7	6	50
3.0	8	6	50
3.5	10	6	50
4.0	11	6	50
4.5	13	6	50
5.0	13	6	50
5.5	13	6	50
6.0	15	6	50
6.5	17	8	60
7.0	17	8	60
7.5	17	8	60
8.0	20	8	60
8.5	23	10	75
9.0	23	10	75
9.5	25	12	75
10.0	25	12	75
10.5	25	12	75
11.0	28	12	75
11.5	28	12	75
12.0	30	12	75
13.0	45	14	100
14.0	45	14	100
15.0	45	16	100
16.0	45	16	100
17.0	45	18	100
18.0	45	18	100
19.0	45	20	100
20.0	45	20	100
22.0	45	25	100
25.0	45	25	100

if need other size, pls feel free to contact us!

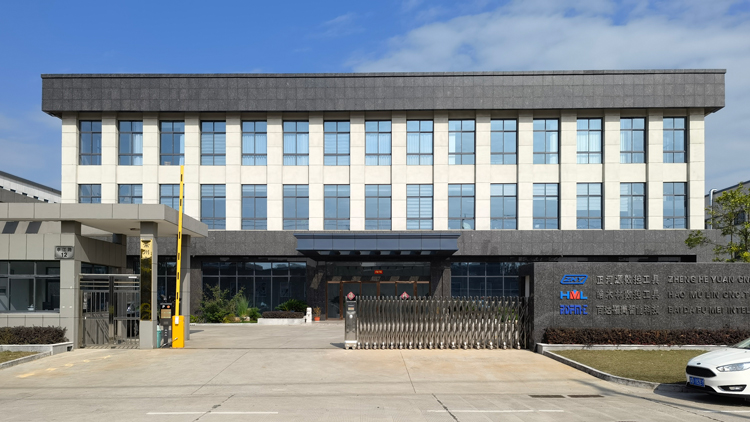

Company Profile

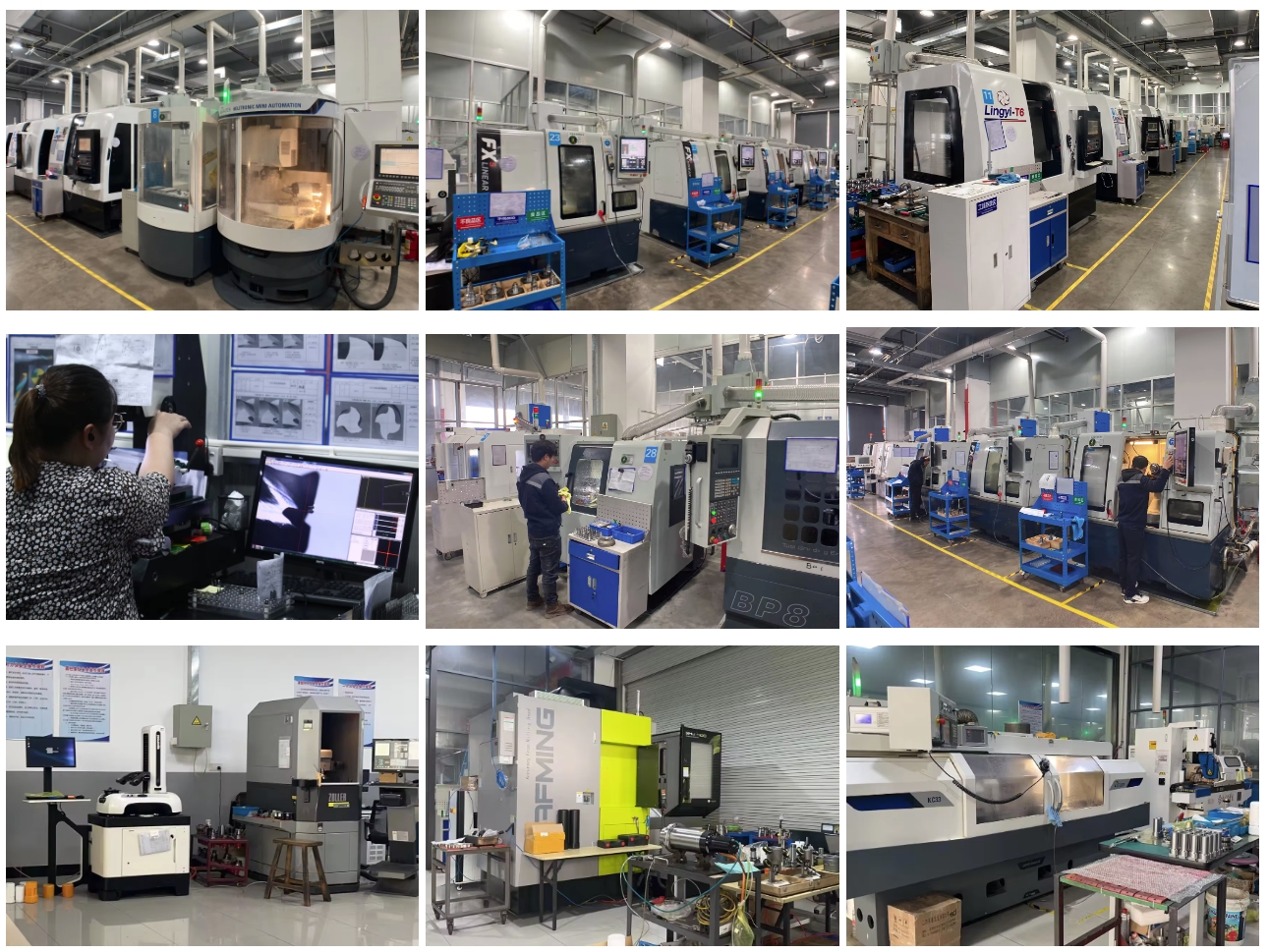

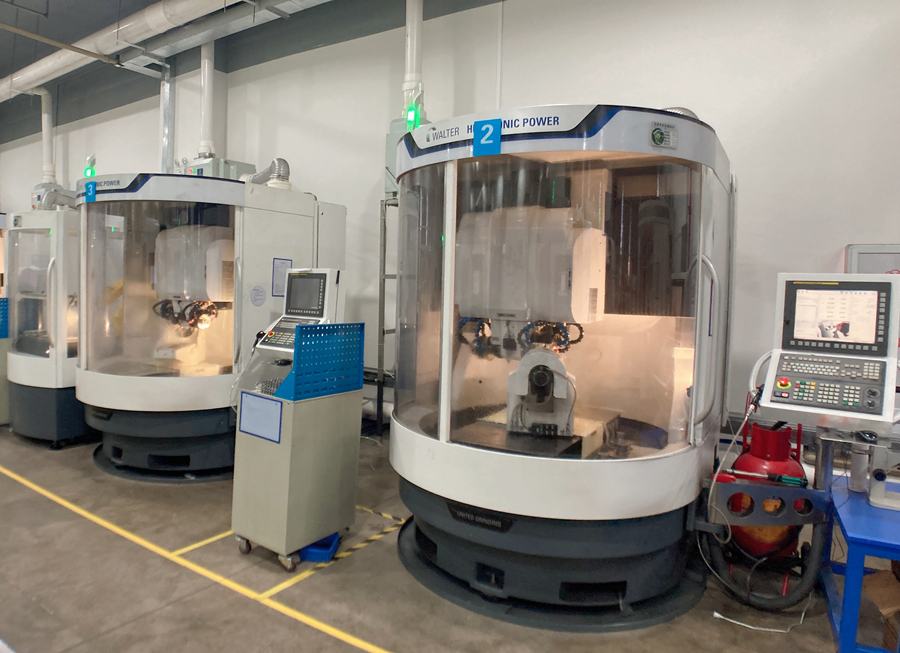

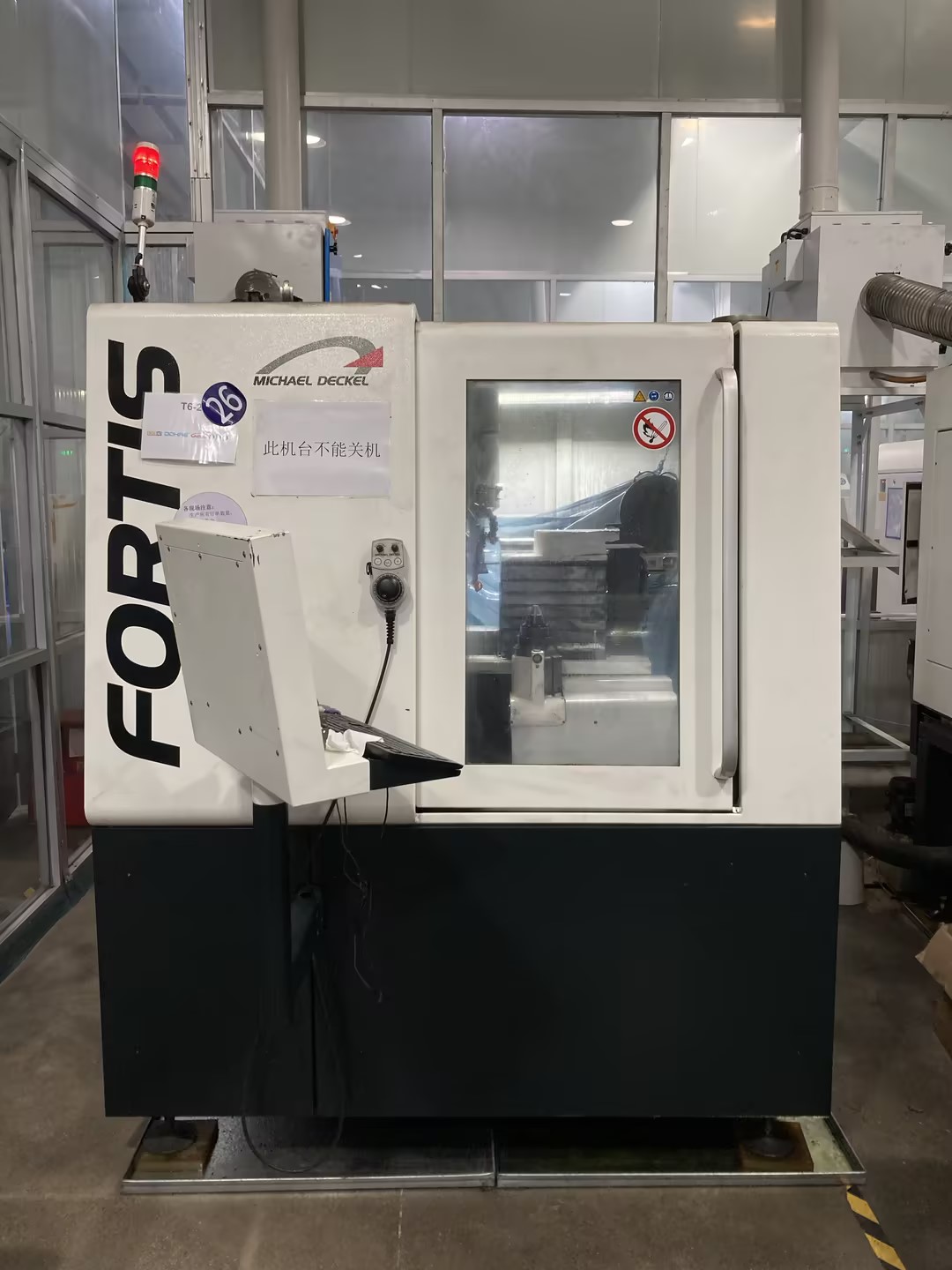

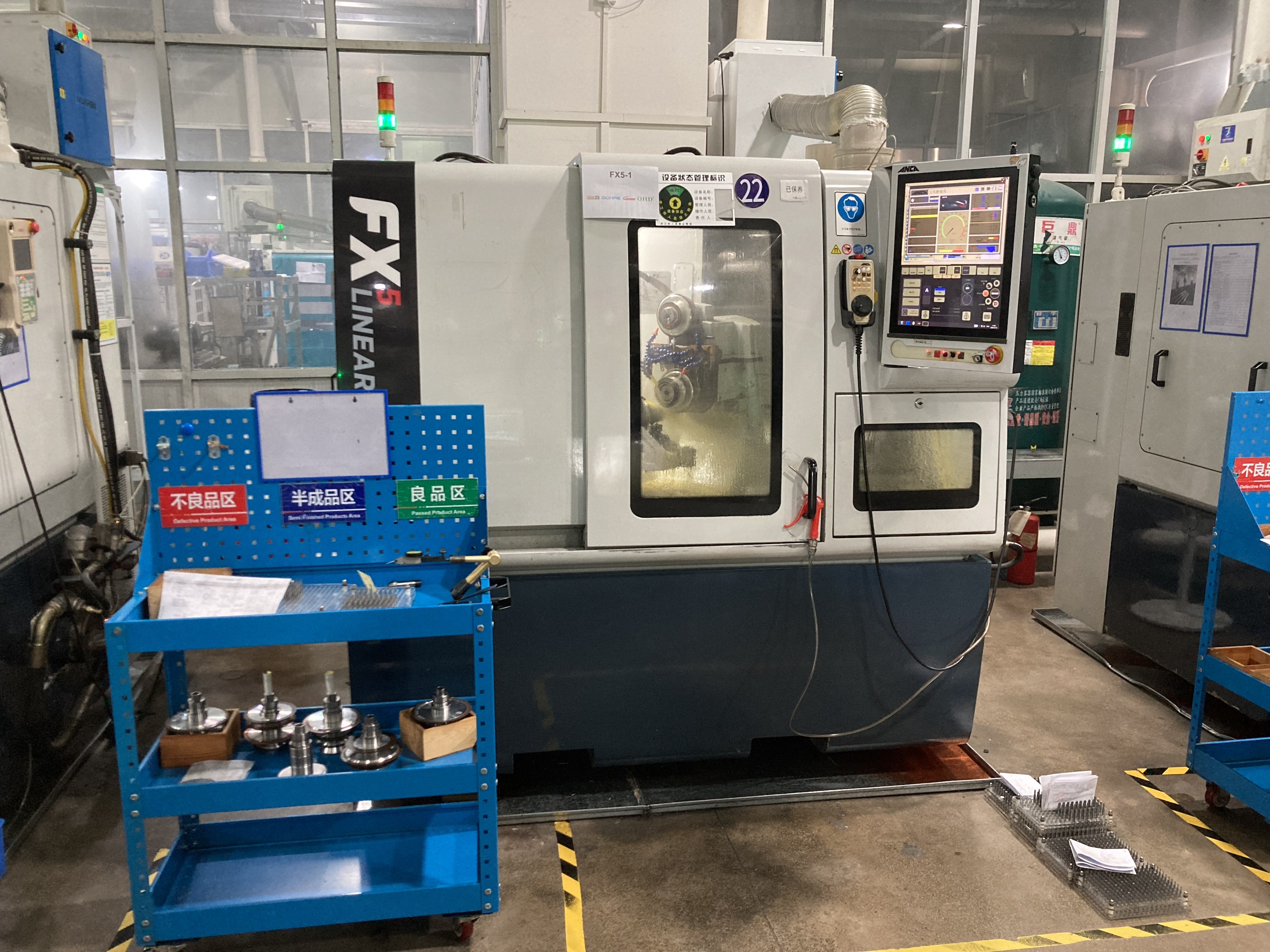

Established in 2005, specializing in CNC tool cutters. We are leading enterprise. Our main products are milling cutter, drill bits, tool holder, inserts and other cnc accessories. We have many advanced CNC equipments machines, such as WALTER, ANCA and DECKEL. Our high quality CNC end mills and CNC tool holders are very popular with the majority of users, with high quality products, competitive prices and good our efficient service, we are confident to meet your needs.
