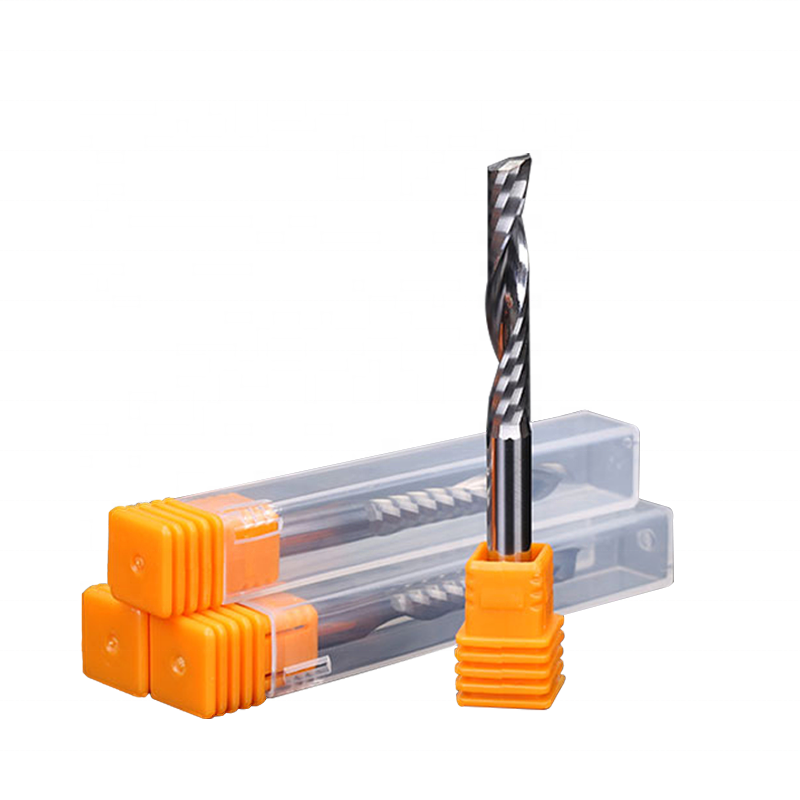

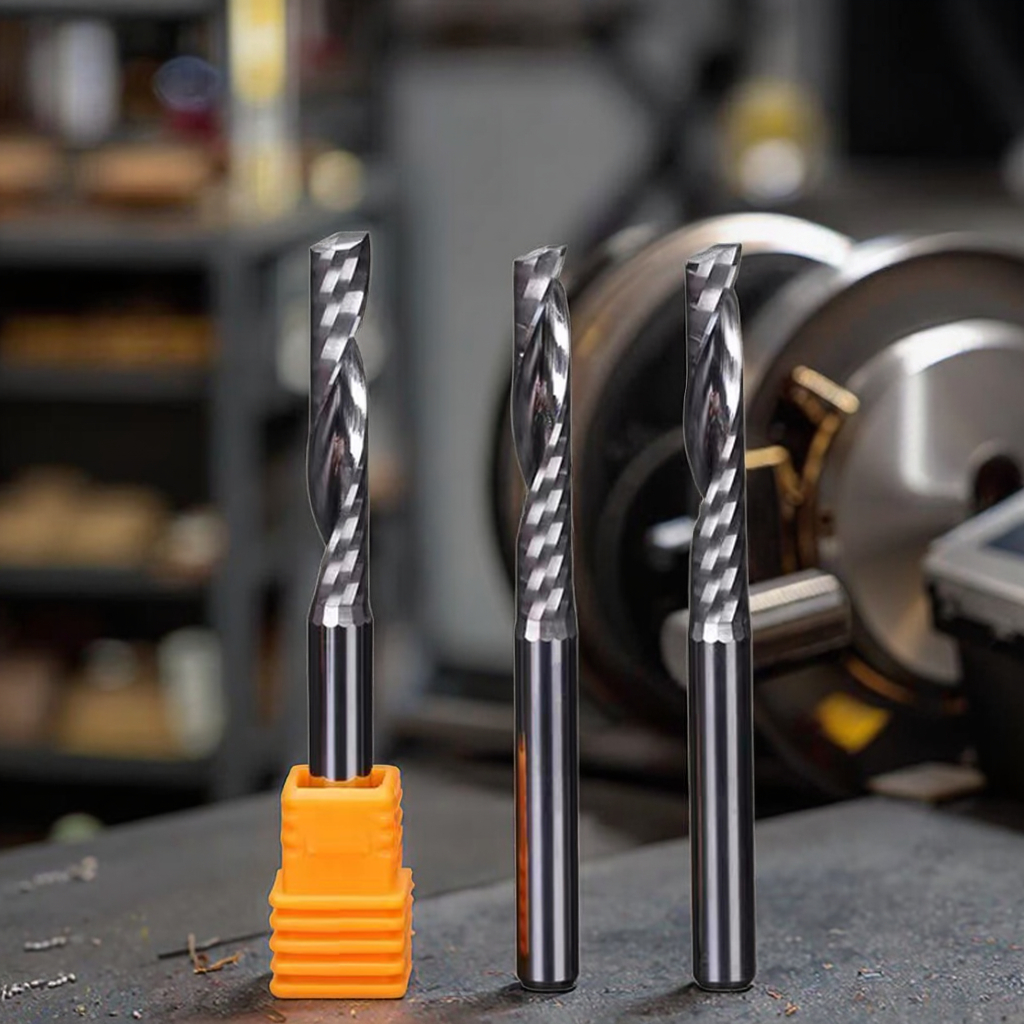

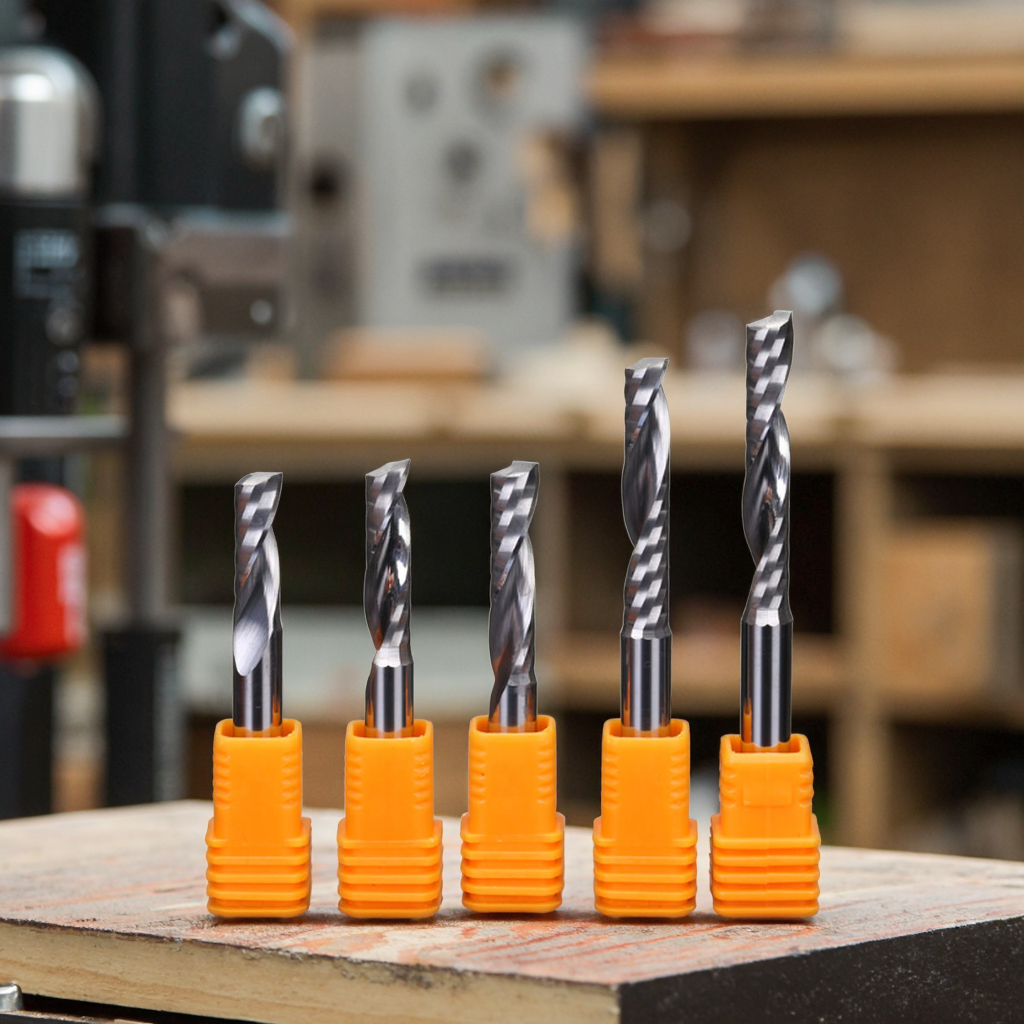

Hot Sale Single Flute Router Bits MDF Drills Forstner Woodworking Wood Carbide Acrylic Edge Milling Cutter End Mills CNC 55HRC
Hot Sale Single Flute Router Bits MDF Drills Forstner Woodworking Wood Carbide Acrylic Edge Milling Cutter End Mills CNC 55HRC
Hot Sale Single Flute Router Bits MDF Drills Forstner Woodworking Wood Carbide Acrylic Edge Milling Cutter End Mills CNC 55HRC
Hot Sale Single Flute Router Bits MDF Drills Forstner Woodworking Wood Carbide Acrylic Edge Milling Cutter End Mills CNC 55HRC
Hot Sale Single Flute Router Bits MDF Drills Forstner Woodworking Wood Carbide Acrylic Edge Milling Cutter End Mills CNC 55HRC
1 / 5
Hot Sale Single Flute Router Bits MDF Drills Forstner Woodworking Wood Carbide Acrylic Edge Milling Cutter End Mills CNC 55HRC
Hot Sale Single Flute Router Bits MDF Drills Forstner Woodworking Wood Carbide Acrylic Edge Milling Cutter End Mills CNC 55HRC
Hot Sale Single Flute Router Bits MDF Drills Forstner Woodworking Wood Carbide Acrylic Edge Milling Cutter End Mills CNC 55HRC
Hot Sale Single Flute Router Bits MDF Drills Forstner Woodworking Wood Carbide Acrylic Edge Milling Cutter End Mills CNC 55HRC
Hot Sale Single Flute Router Bits MDF Drills Forstner Woodworking Wood Carbide Acrylic Edge Milling Cutter End Mills CNC 55HRC

Hot Sale Single Flute Router Bits MDF Drills Forstner Woodworking Wood Carbide Acrylic Edge Milling Cutter End Mills CNC 55HRC

Send Inquiry

Product Description

📋 Production Description

Applicable material Acrylic, PVC, PC, PET, PMMA, MDF Board, Multilayer board, Plastic, Aluminum sheet.
Applicable machine Advertising engraving machine, metal engraving machine, Polishing machine, CNC machine
Processing Effect Cleaning surface and edge, sharp cutting edge, and long shelf life
Processing Suggestions Choose the bits with cutting length of 2-5mm longer than the processing material
Features Using mirror sharpening technology, large chip removal, sharp cutting edge, long shelf life, smooth surface.

🔍 How much do you know about edge polishing

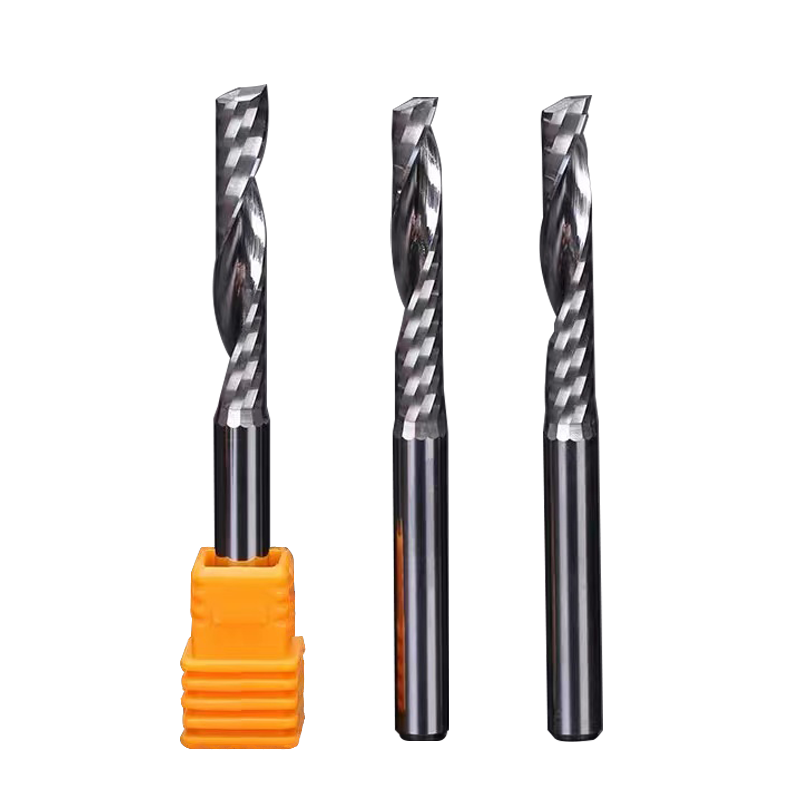

Polishing details
Polishing of cutting edges and grooves
  • The cutting edge polishing increases the sharpness of the cutting edge, eliminates the slight gap of the bits edge, and makes the processed product smoother and cleaner.
  • Mirror polishing inside the groove improves chip removal, will not stick to chips, will not stick to the bits, ensure the sharpness of the cutting edge, and increase the shelf life of the tool.
  • Corresponds to a variety of plates, solves difficult processing problems, and achieves good versatility.

📏 PRODUCT SPECIFICATIONS

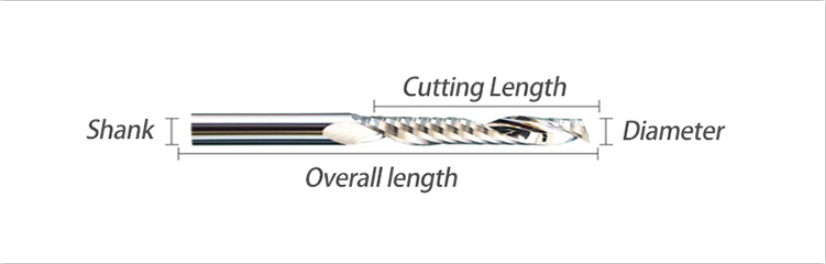

Product Specifications diagram
Item No Product Name Shank Diameter Cutting Length Overall Length
JCA6DL7001 Single flute spiral carbide end mills 4 4 8 42
JCA6DL7002 Single flute spiral carbide end mills 4 4 12 42
JCA6DL7003 Single flute spiral carbide end mills 4 4 15 42
JCA6DL7004 Single flute spiral carbide end mills 4 4 17 42
JCA6DL7005 Single flute spiral carbide end mills 4 4 20 45
JCA6DL7006 Single flute spiral carbide end mills 4 4 22 45
JCA6DL7007 Single flute spiral carbide end mills 4 4 25 48
JCA6DL7008 Single flute spiral carbide end mills 4 4 28 50
JCA6DL7009 Single flute spiral carbide end mills 4 4 32 60
JCA6DL70010 Single flute spiral carbide end mills 4 4 42 70
JCA6DL70011 Single flute spiral carbide end mills 5 5 22 48
JCA6DL70012 Single flute spiral carbide end mills 5 5 25 50
JCA6DL70013 Single flute spiral carbide end mills 5 5 32 60
JCA6DL70014 Single flute spiral carbide end mills 5 5 42 70
JCA6DL70015 Single flute spiral carbide end mills 5 5 52 80
JCA6DL70016 Single flute spiral carbide end mills 6 5 22 48
JCA6DL70017 Single flute spiral carbide end mills 6 6 12 45
JCA6DL70018 Single flute spiral carbide end mills 6 6 15 45
JCA6DL70019 Single flute spiral carbide end mills 6 6 17 45
JCA6DL70020 Single flute spiral carbide end mills 6 6 22 48
JCA6DL70021 Single flute spiral carbide end mills 6 6 25 50
JCA6DL70022 Single flute spiral carbide end mills 6 6 28 55
JCA6DL70023 Single flute spiral carbide end mills 6 6 32 60
JCA6DL70024 Single flute spiral carbide end mills 6 6 38 65
JCA6DL70025 Single flute spiral carbide end mills 6 6 42 70
JCA6DL70026 Single flute spiral carbide end mills 6 6 52 80
JCA6DL70027 Single flute spiral carbide end mills 6 6 62 100
JCA6DL70028 Single flute spiral carbide end mills 6 6 72 110

💡 How to choose the proper bits

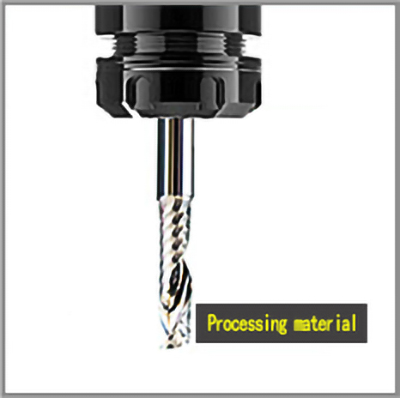

Not recommended Not recommended usage
The shank is too long, which makes the high-speed rotation of the machining unstable and causes the tool to break.
The cutting length and the board surface are too long, resulting in too much blade length, hanging in the air without force, and easy to break the knife.

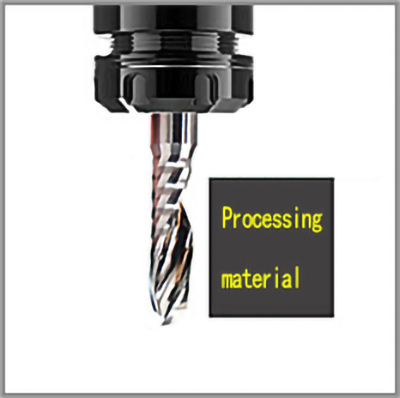

Recommended Recommended usage
Choose proper cutting length
Choose proper diameter
Do not extend the pole too long
The cutting length exceeds the thickness of the plate by 2-5 mm

📸 Product real shot pictures

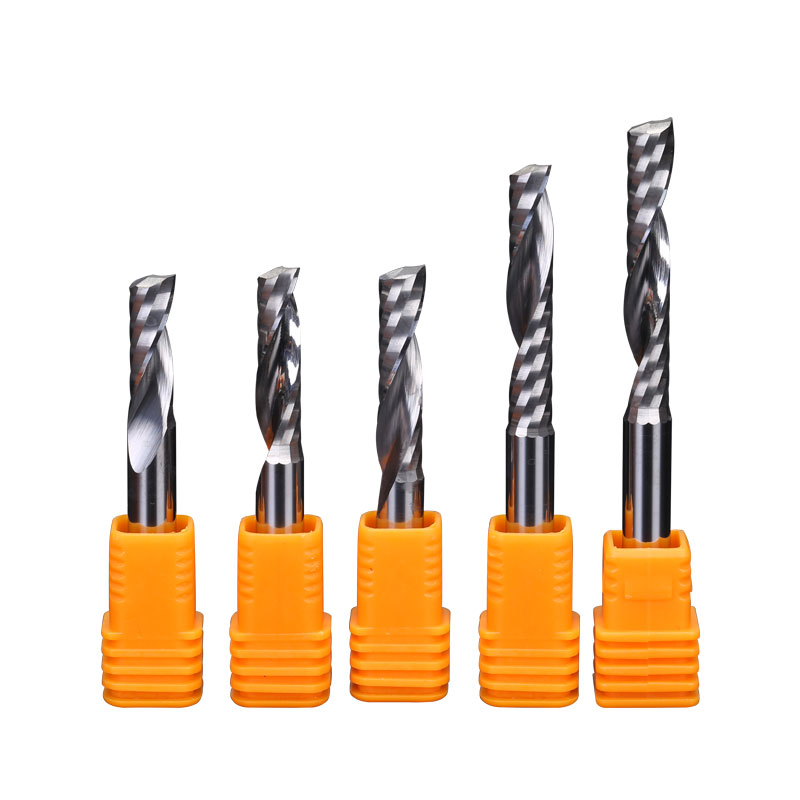

Product real shot 1

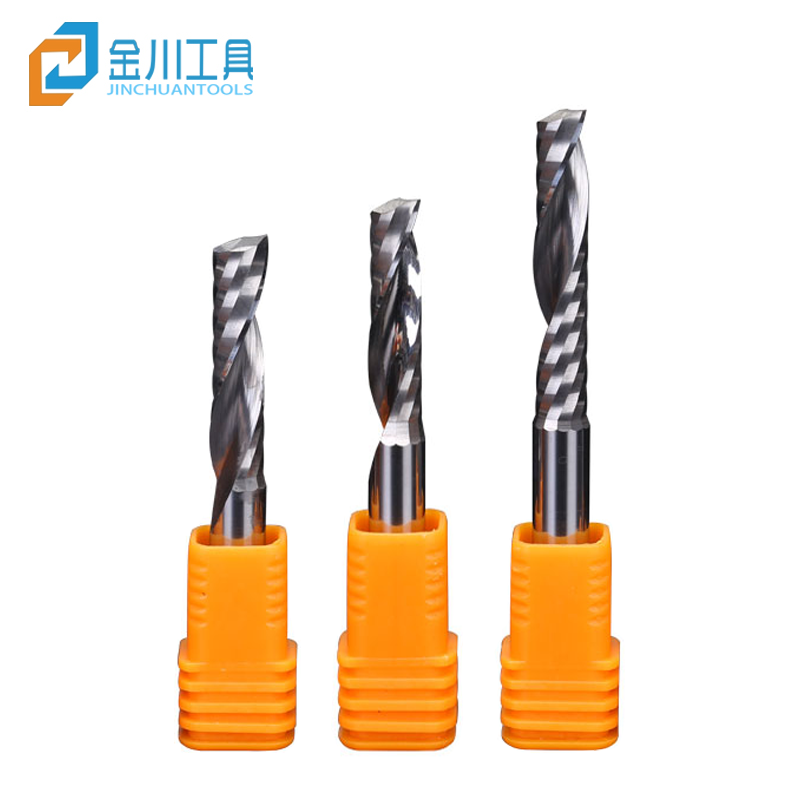

Product real shot 2
Product real shot 3
Product real shot 4

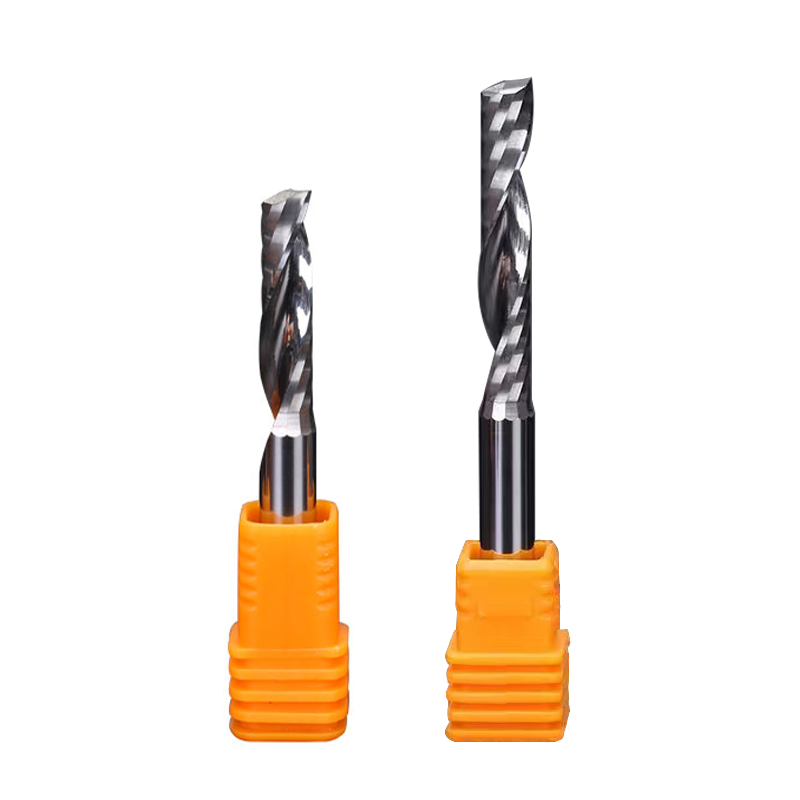

Product real shot 5

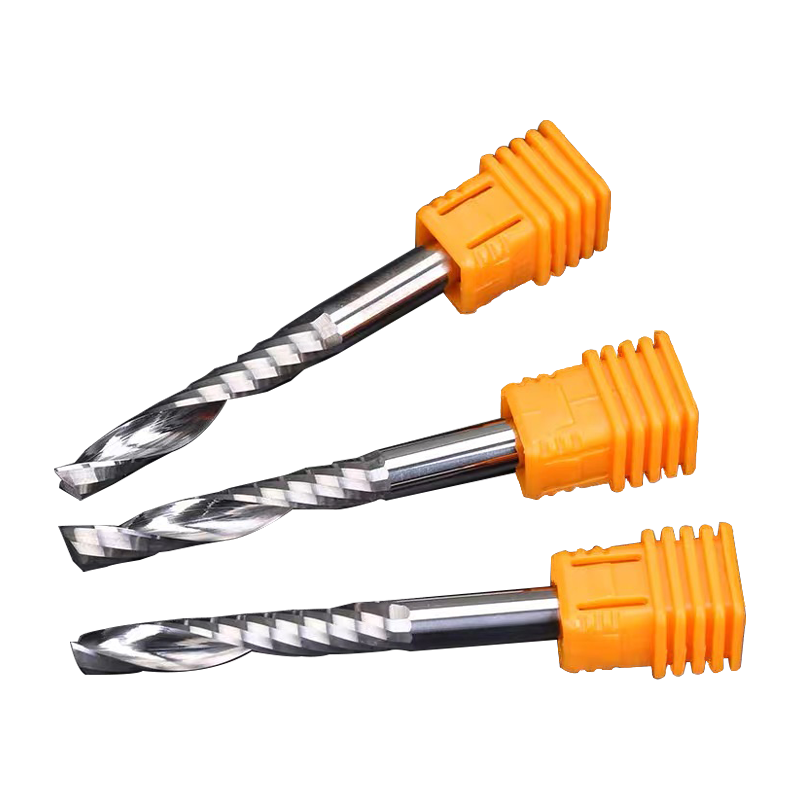

Product real shot 6

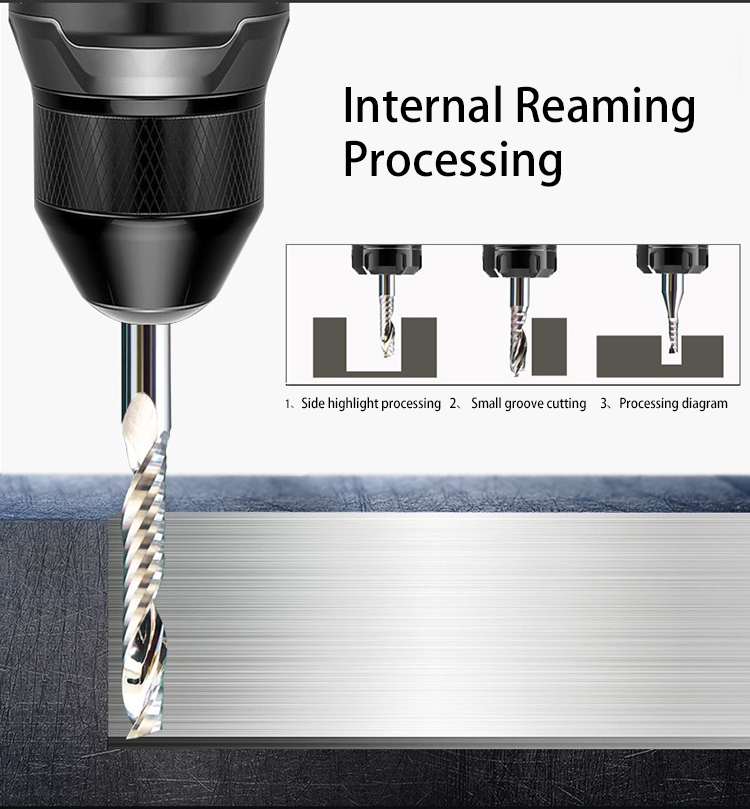

⚙️ Processing diagram

Processing diagram display

🛠️ A variety of machines can be processed

Engraving Machine
Engraving Machine
Precise Engraving machine
Precise Engraving machine
CNC Machine
CNC Machine

🧱 A variety of plates can be applied

Acrylic
Acrylic
PVC
PVC
ASC Sheet
ASC Sheet
MDF Board
MDF Board
PP board
PP board
PA board
PA board

🌐 SALES AND SERVICE NETWORK

Sales and Service Network Map

✨ Successful Project

Project in Thailand
Project in Thailand
Project in India
Project in India
Project in Russia
Project in Russia

🔄 SIMILAR PRODUCTS

Similar Product 1
Similar Product 2
Similar Product 3

❓ FAQ

Q1 What is the processing speed of this tool?
We recommend 22000-24000rpm/Min, Feed rate is 1-5m/Min.
Q2 Can PVC soft glass be processed?
Yes, it can cut PVC, Acrylic, PP board.
Q3 Can cut PS sheets?
Yes, but it is easy to stick to the tools.
Q4 Can mill bakelite?
Yes, you need to slow down feed speed, it is not recommended to use, it is easy to break we recommend to process the bakelite with a PCB corn milling cutter.
Q5 Is it okay to mill the iron keyway?
No, it can cut aluminum alloy, mainly for PVC, Acrylic, PC, PMMA, PP Sheets.
Q6 Can it be used on an electric drill?
No, Only applicable to machining centers above 20,000 rpm.
